GFK-2958E RSTi-EP User Manual 351

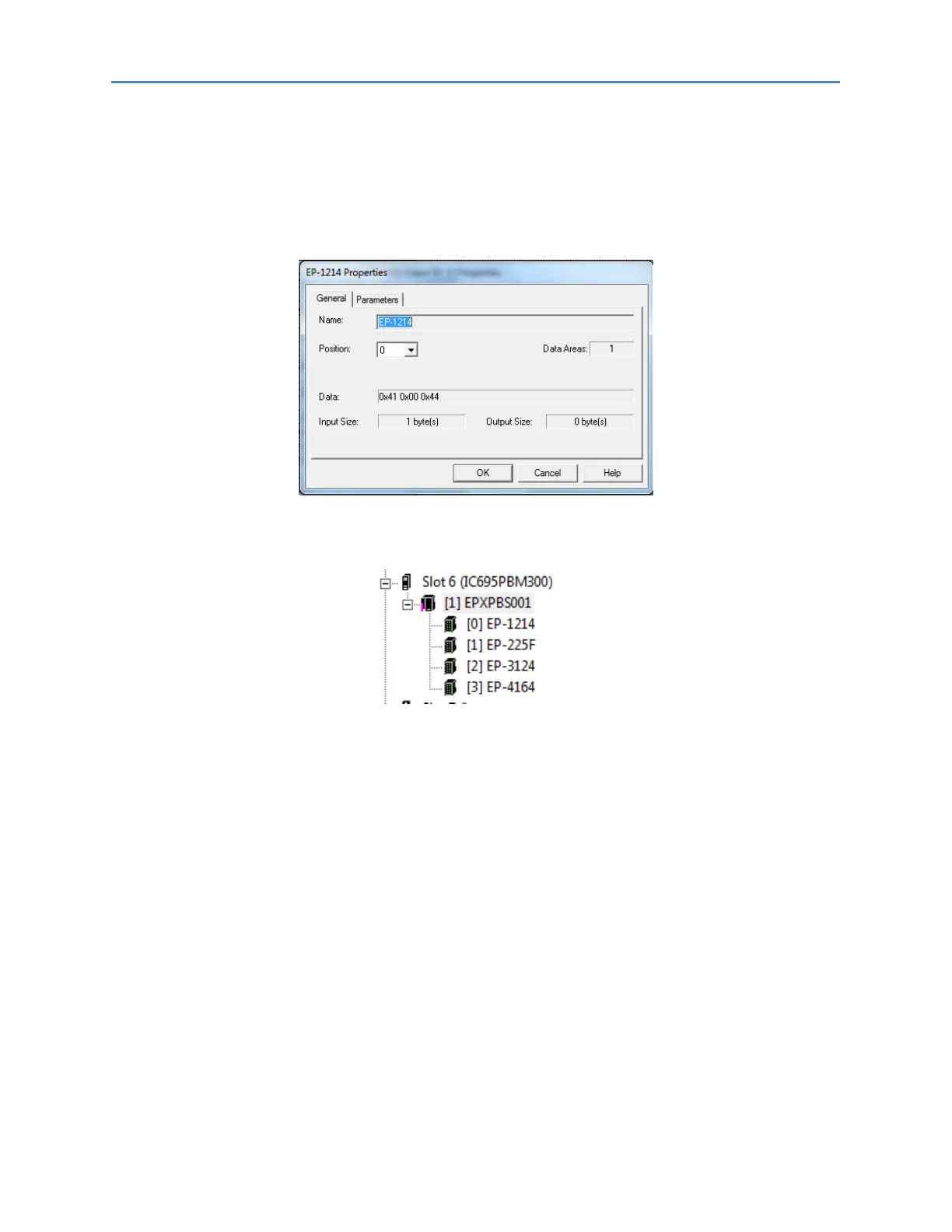

To change the order (position) of a module, select it and click Properties. The Module
Properties dialog box displays. Enter the numerical value of the new position the module is to
have. The position numbering starts at 0.
The other information in this dialog box is generated by the GSD file associated with the Slave
module.
Note: The Data field corresponds to the module’s configuration identifier as defined in the
PROFIBUS specification.
7. When finished adding modules, click OK. The modules display under the Slave node in the
Hardware Configuration.
Note: To add, remove, or change the order of modules associated with an existing slave,
right-click the Slave node in the Hardware Configuration and select Configure. The
Properties dialog box for the selected slave opens.
