Chapter 10 Replacing Components

GFK-2958E RSTi-EP User Manual 386

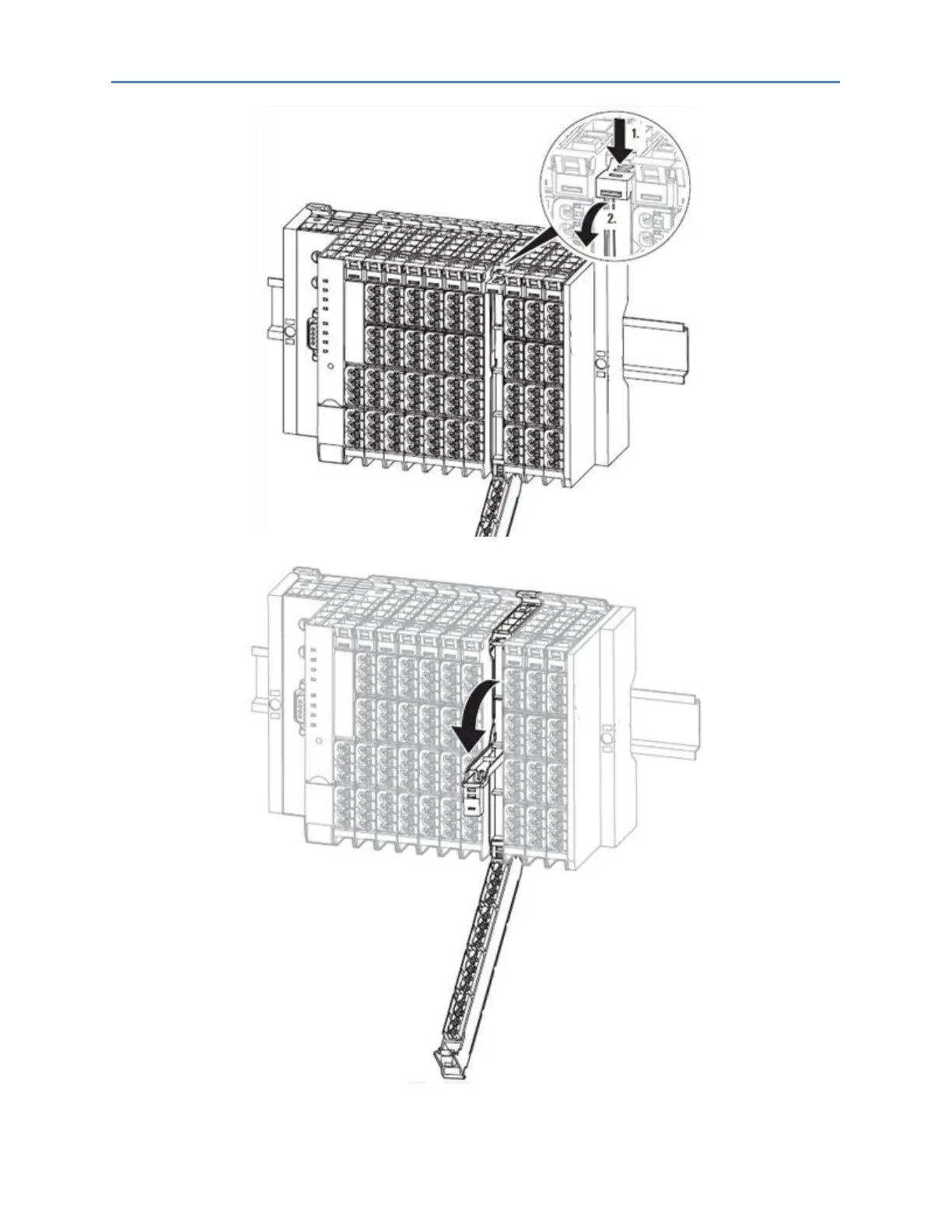

3. Using the removal lever, pull the electronic unit forwards and out.
