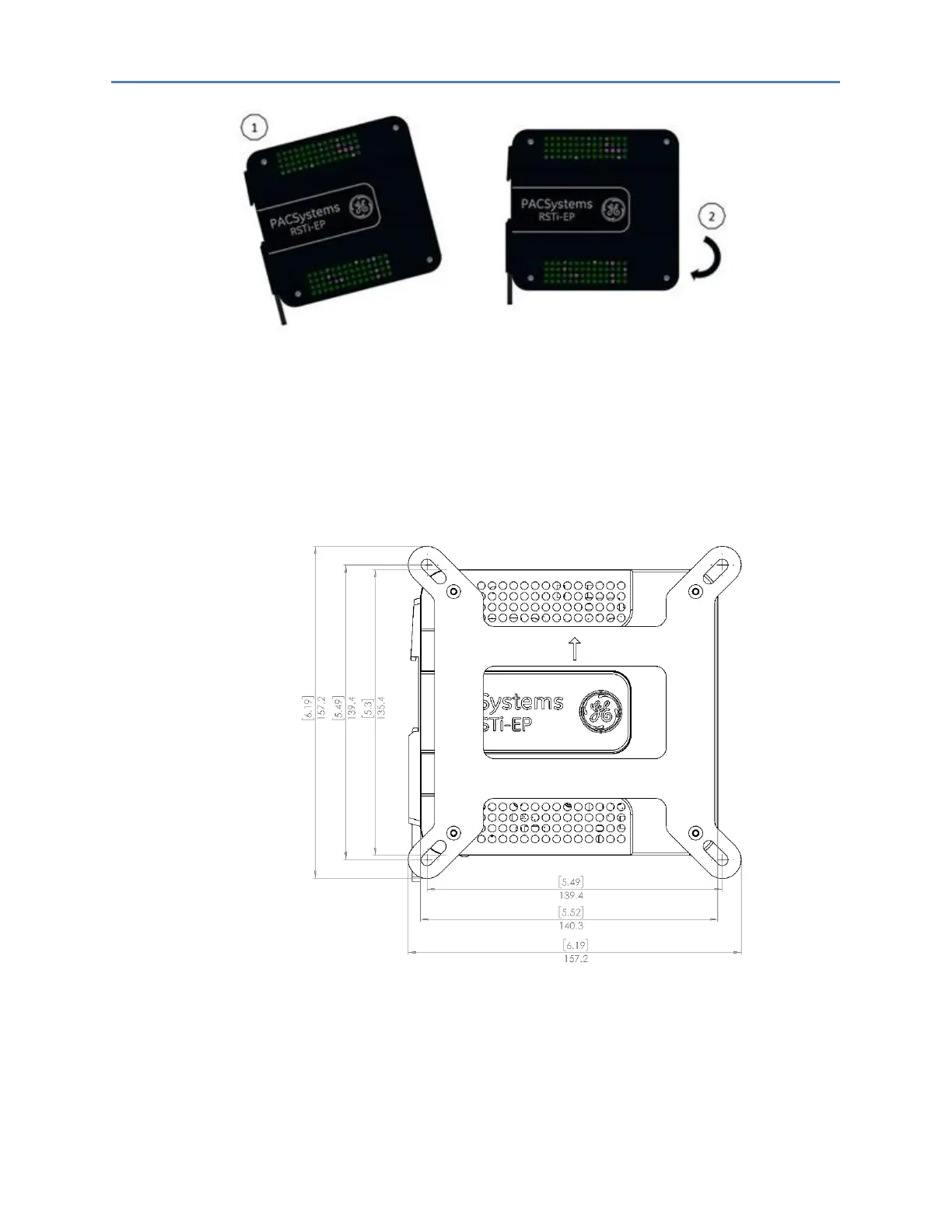

Figure xx: Mounting positions of the EPSCPE100 on DIN rail
Instructions to mount the CPE100 on a Panel
(1) Attach the panel mount plate to the rear side of CPE100 using the four M3
screws supplied with the adapter.
(2) Fasten the tabs of panel mount adapter in the appropriate location of panel
with the four screws. The screw size used for each panel mount tab should not
exceed M5.
Figure xx: Mounting position of the EPSCPE100 in panel
