Chapter 5 Detailed Descriptions of I/O Modules
GFK-2958E RSTi-EP User Manual 94

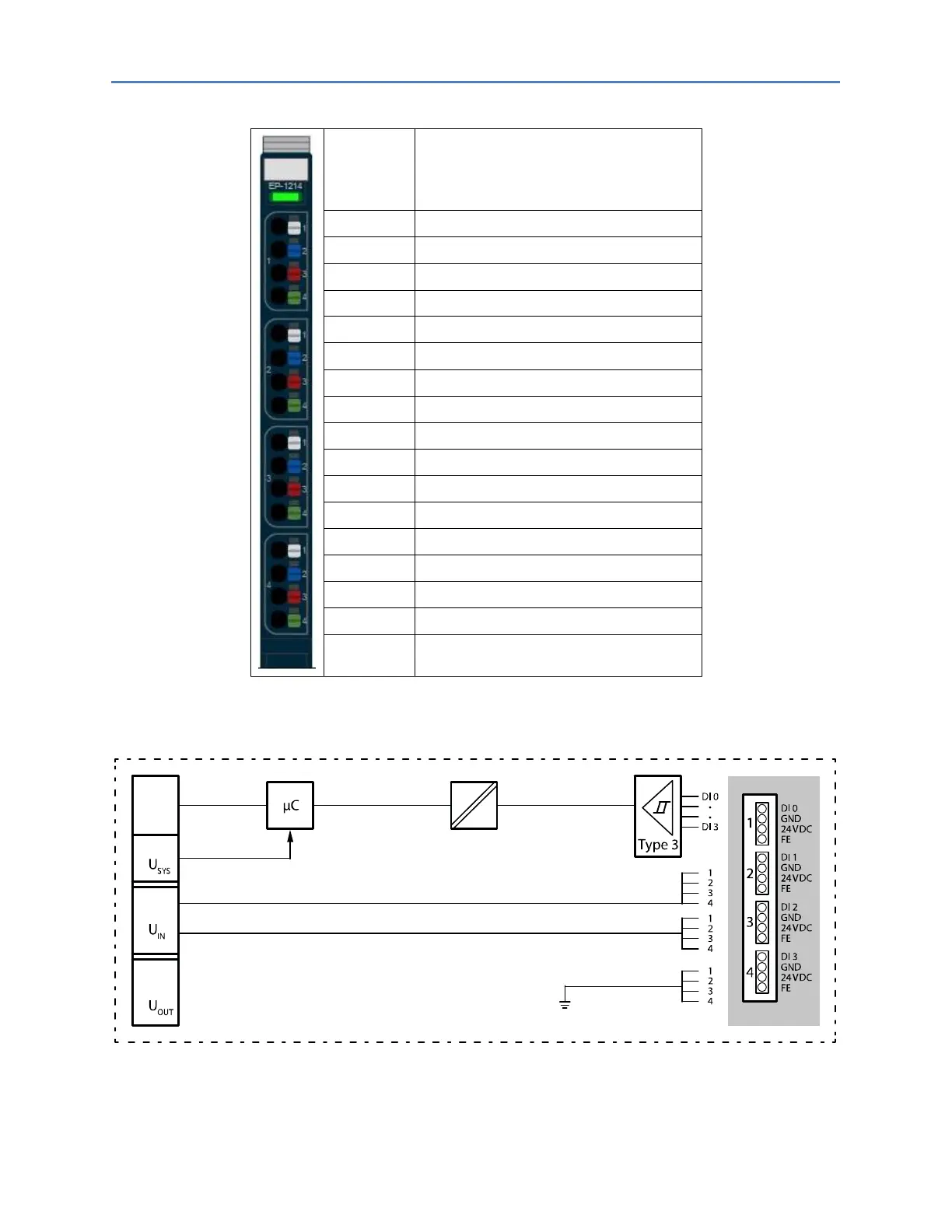

LED Indicators EP-1214
Module
Status
Green: Communication over the system bus
Red: Module System Fault or Diagnostic Fault
1.1
Yellow: Input 0 active
1.2
--
1.3
--
1.4
--
2.1
Yellow: Input 1 active
2.2
--
2.3
--
2.4
--
3.1
Yellow: Input 2 active
3.2
--
3.3
--
3.4
--
4.1
Yellow: Input 3 active
4.2
--
4.3
--
4.4
--
For error messages, refer to the chapter, Accessories and Replacement Parts.
GND IN
24 VDC IN
FE
System
bus
EP-1214
Block Diagram EP-1214
