3.3 Equipment as accessories
3.3.1 Retainer for scaffolding

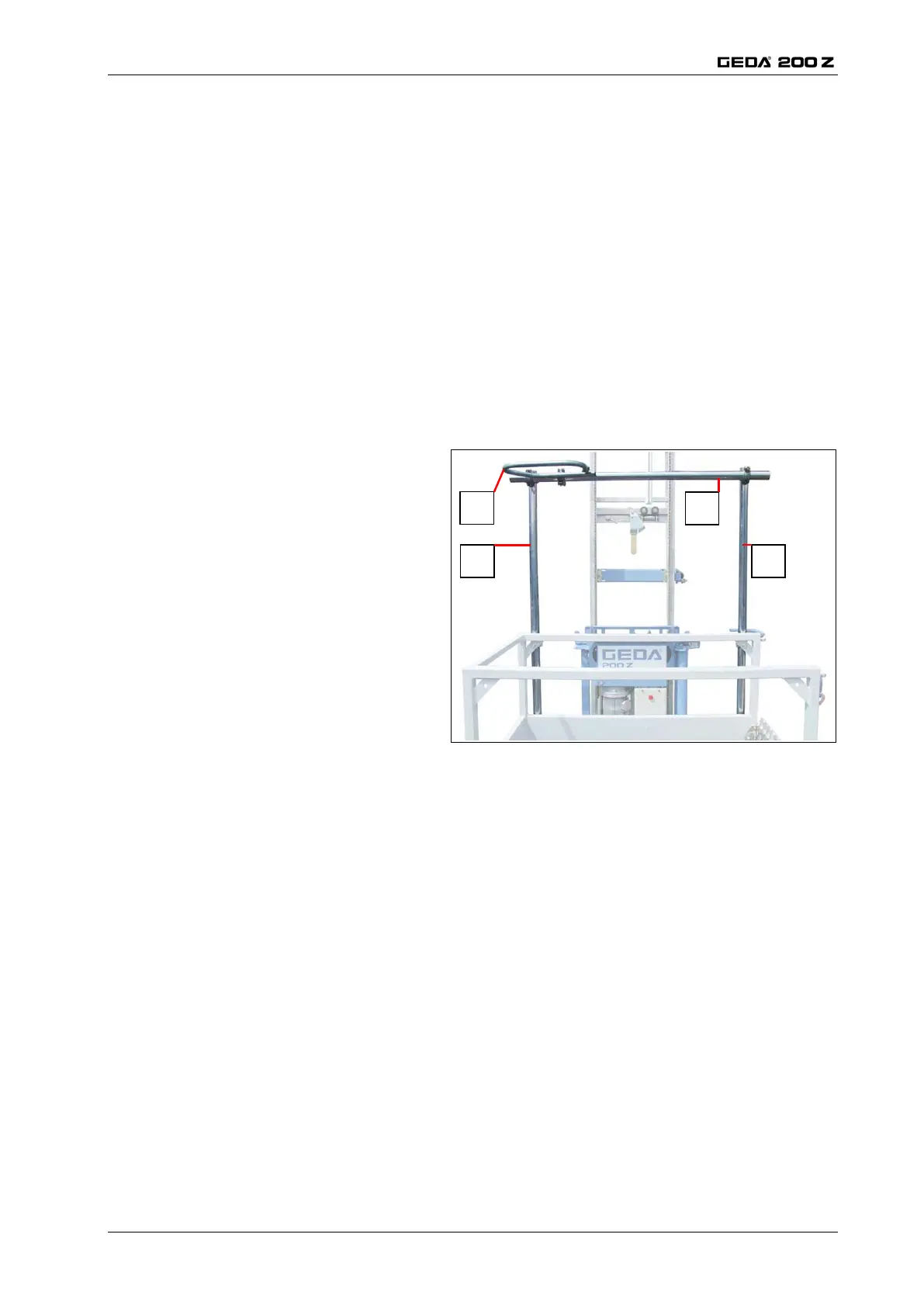

Loads that are taller than the load platform (e.g. scaffolding tubes) can
be transported securely without falling using this holder (1).
 The 1½" tubes and scaffolding couplings are not included in the
scope of delivery.
Suggestion for Assembly
Material required: 2 tubes 1.5“ length = approx. 2 m,
1 tube 1.5“ length = approx. 1.4 m and
2 scaffolding couplings
Assembly
 Use the couplings
(scope of delivery)
and attach the
vertical tubes (3) to
the railing of the
load platform
 Use scaffold
couplings and
assemble a
crosspiece (2) at an
easily reachable
height (approx. 2 m).
 Clamp the scaffold parts holder (1) to the crosspiece.
Weight: 8.9 kg
Tools required: 2 ring or open-jaw spanners, width across flats (AF) 22
1
3
2
3
