Rack and pinion hoist
Assembly and Operating Instructions
46 / 100 BL108 GB Edition 03.2018 Rev. 02

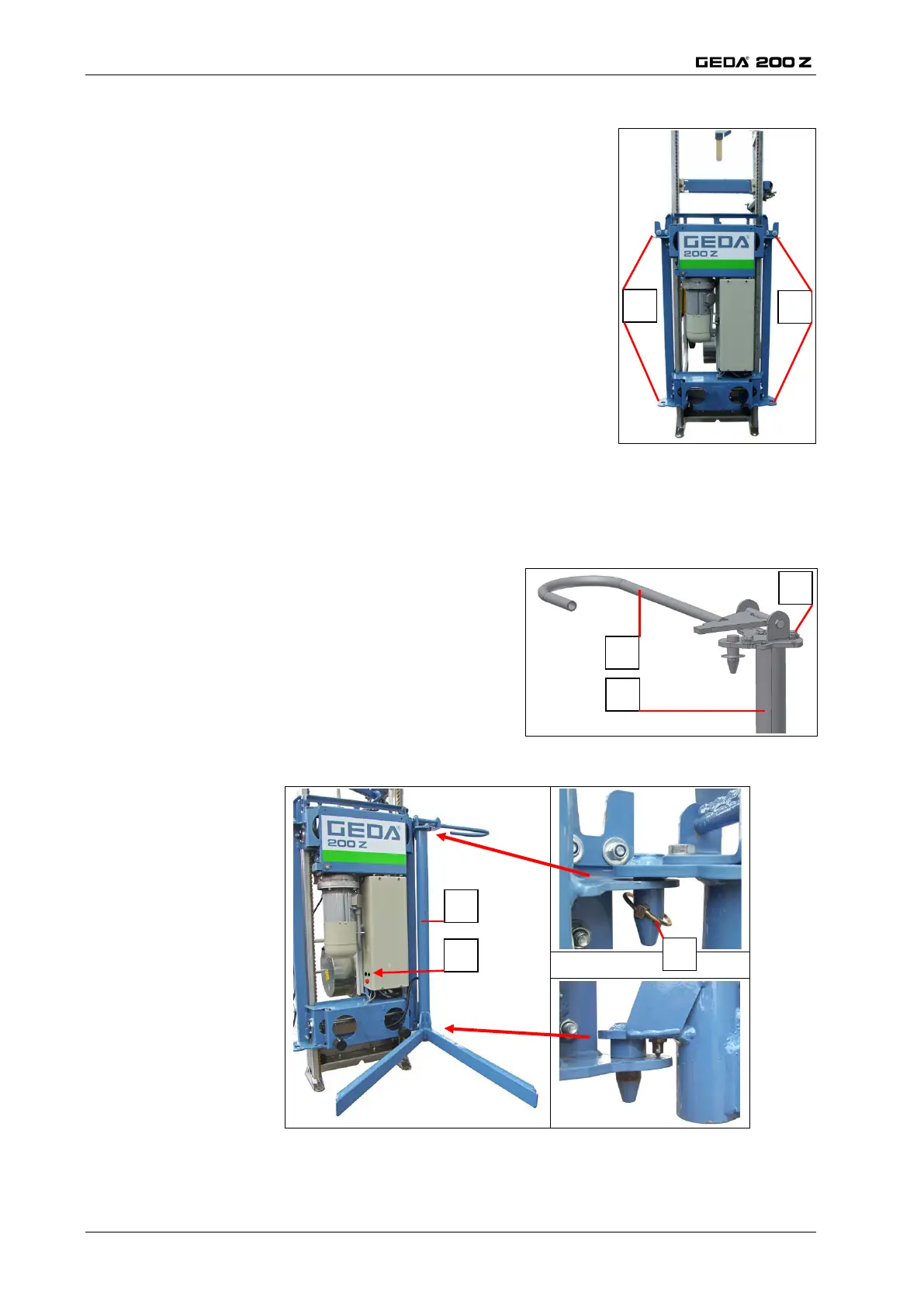

5.3.2 Fitting the turning unit
The swivelling frame can be fitted hinged to the
left or the right on the mountings (1) on the
trolley.
The swivelling frame can be adapted to the trolley side required by
rotating the swivel lever mounting.
Fitting the swivelling frame on the right-hand side of the trolley
• Prepare the swivelling frame for the right-hand side of the trolley
Fit the turning lever support (2)
onto the turning unit (4)
according to the drawing using
the three M10 x 16 bolts and
spring washers (3).
Hook the swivelling frame (4) on the mountings on the right-hand
side of the trolley and secure with a fast pin (5).
Route the plug for the swivel limit switch to one of the two sockets (6)
on the trolley switch box and plug in.
