Rack and pinion hoist
Assembly and Operating Instructions
45 / 100 BL108 GB Edition 03.2018 Rev. 02
Anchoring against a wall

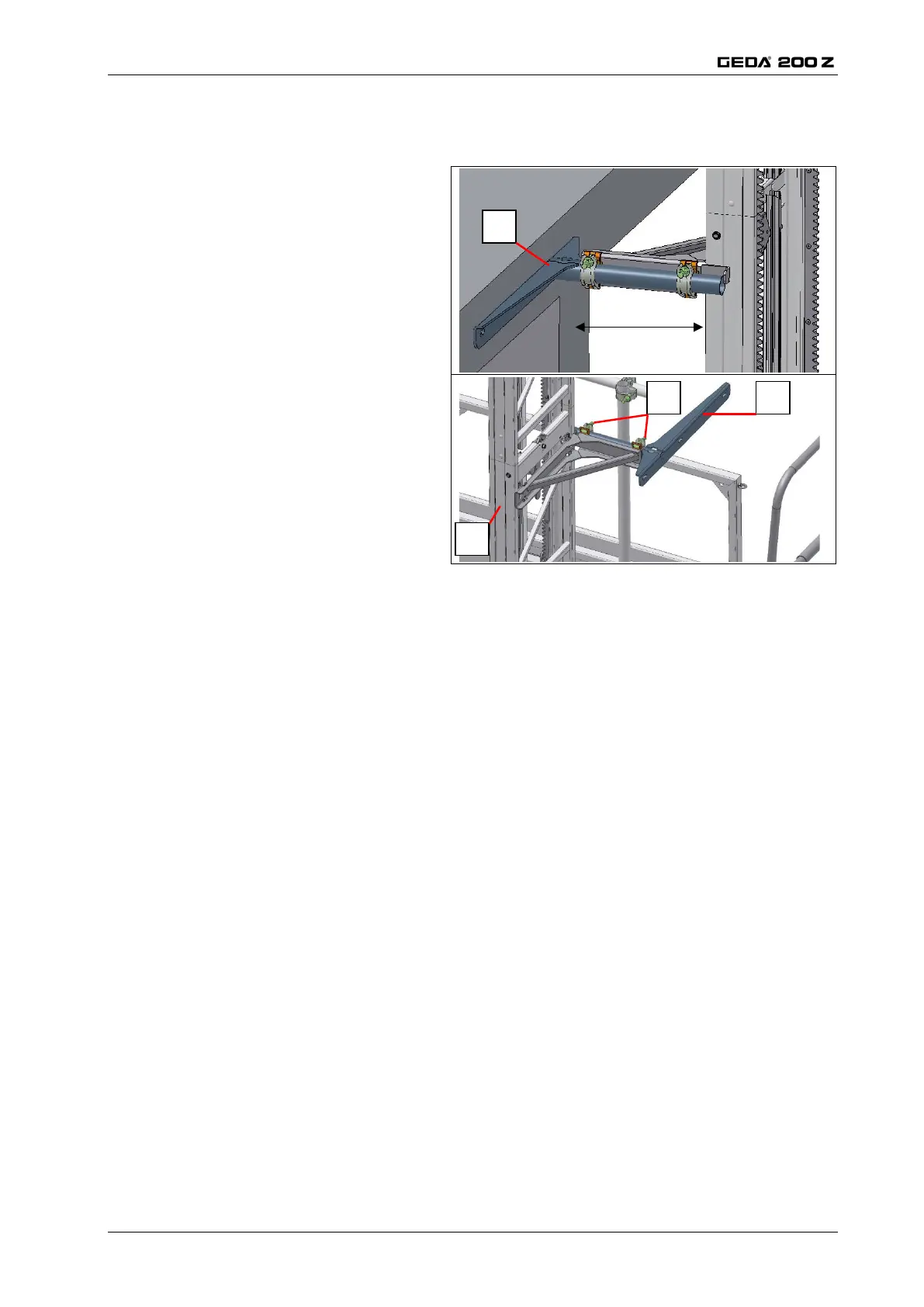

• Install the rail bracket (1) into the ladder section as described and
fully tighten.
Using the scaffold
clamps (3), loosely
attach the wall
bracket (2) to the rail
bracket and attach
to the wall with bolts
and plugs or anchor
with through bolts.
Align the ladder track (6) vertically and fully tighten the scaffold
clamps (3) of the rail bracket.
The distance between the ladder track and the wall must be
approx. 0.52 m, anchoring forces refer to Chapter 3.5.1
