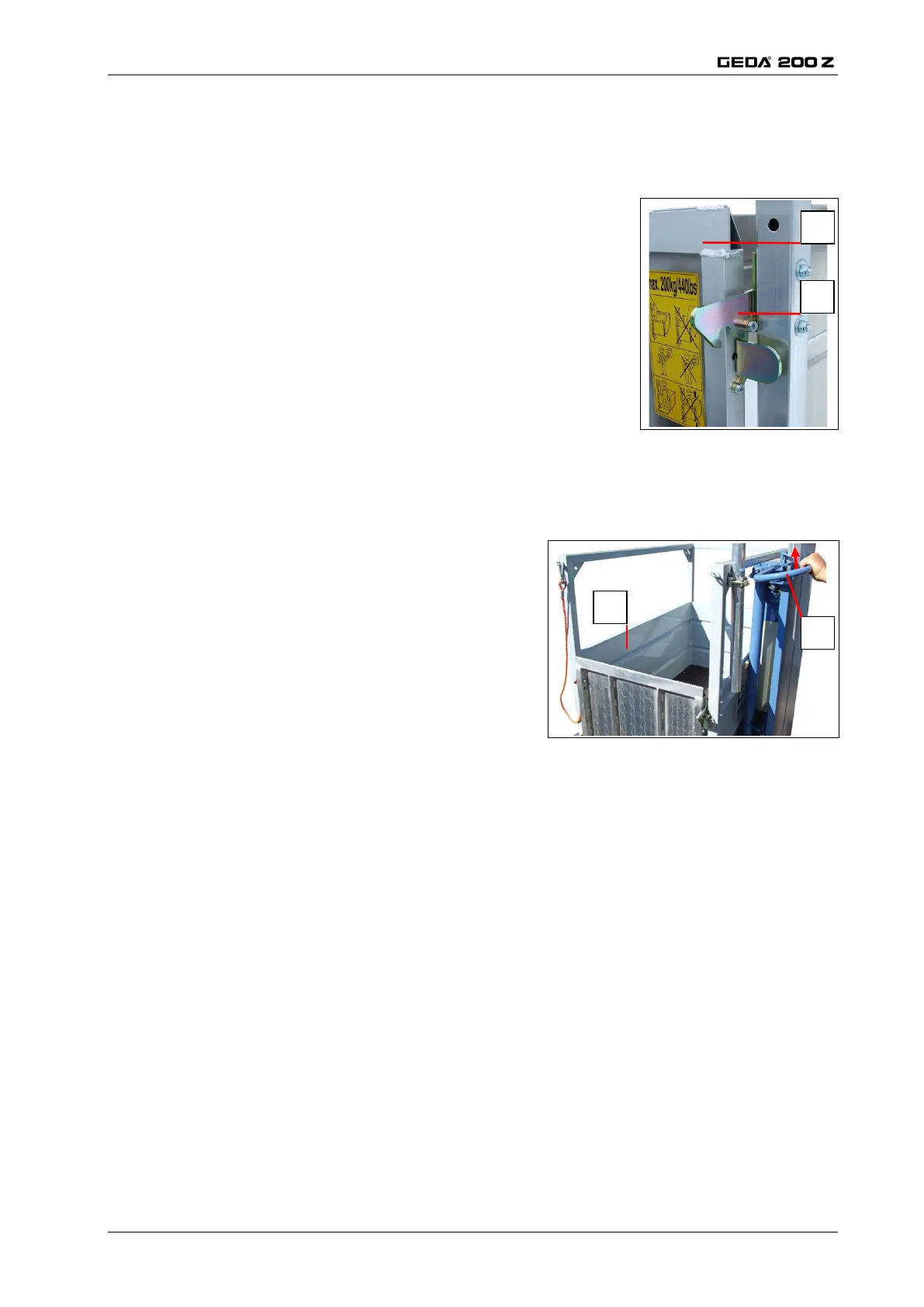

6.3 Using the platform access point
6.3.1 Loading gate
Open
 Unlatch the loading ramp (1) at the interlock
hook (2) and lower the ramp.
Close
 Raise the loading ramp (1) and press
against the load platform until the interlock
hook (2) engages twice.
6.3.2 Turning lever
Turn platform outwards
• Pivot the platform (1) outwards
through 90° to unload at
a landing.
 Turn the turning lever (2)
upwards and pivot the load
platform (1) outwards until the
turning lever (2) engages again.
Turn platform inwards
 Turn the turning lever (2) upwards and pivot the load platform
(back until the turning lever (2) engages again.
