Rack and pinion hoist
Assembly and Operating Instructions
68 / 100 BL108 GB Edition 03.2018 Rev. 02
8.3.4 Check the ladder interlocks and bolted connections
• Check the ladder interlock
− All interlock levers of the ladder sections must be closed (pointing
vertically downwards), except for the top one (last). This must remain
open.
−

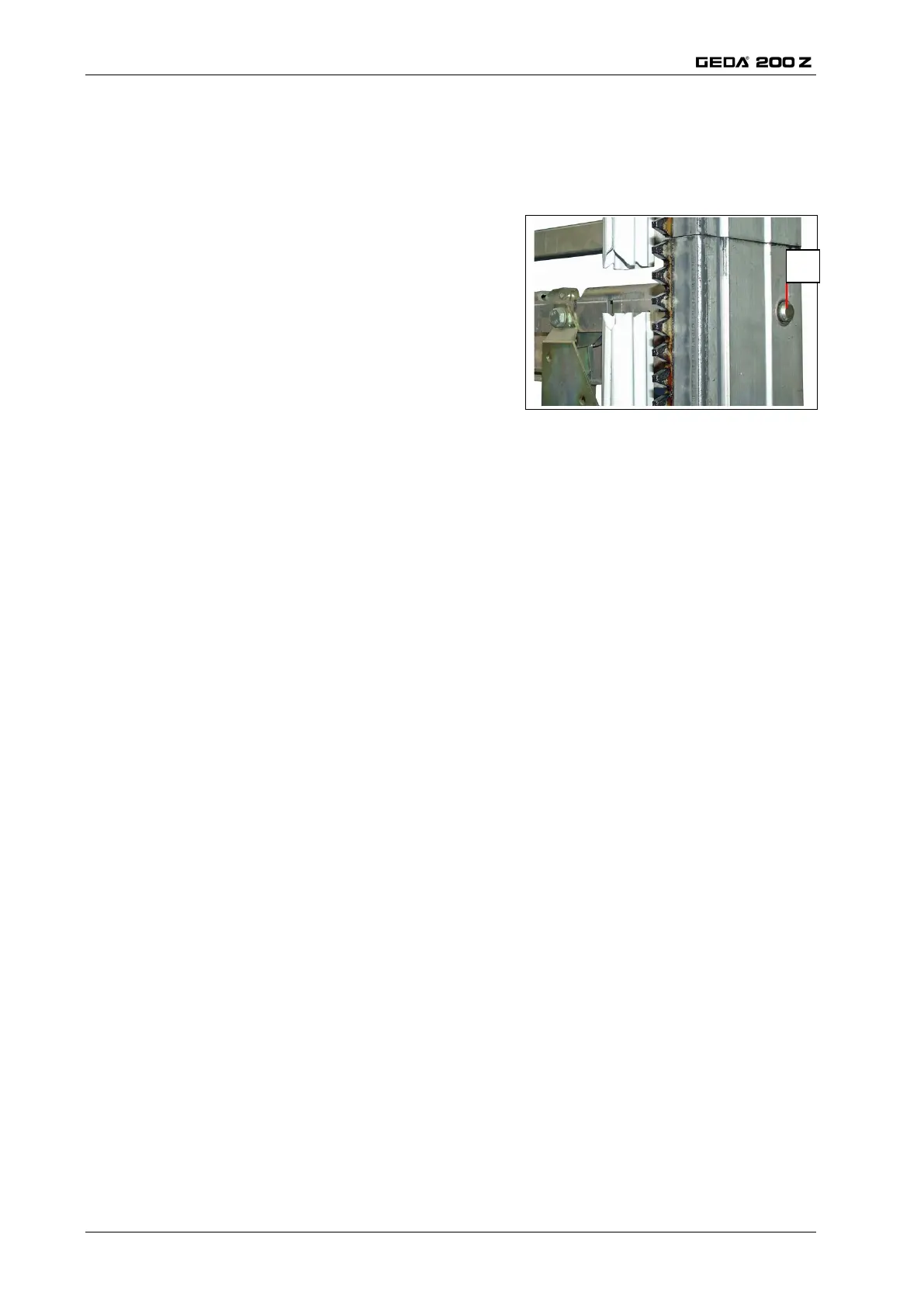

The locking bolts (1) must
protrude beyond the ladder beam
on the narrow side of the ladder
and be easily visible.
• Ladder ties
Check the bolts on the ladder track and building for security.
Tightening torque (scaffold couplings) = 50 Nm
• Check the limit-switch approach bar for security.
