GEDA 200Z - Tracks Rollers

Rack and pinion hoist
Assembly and Operating Instructions
70 / 100 BL108 GB Edition 03.2018 Rev. 02

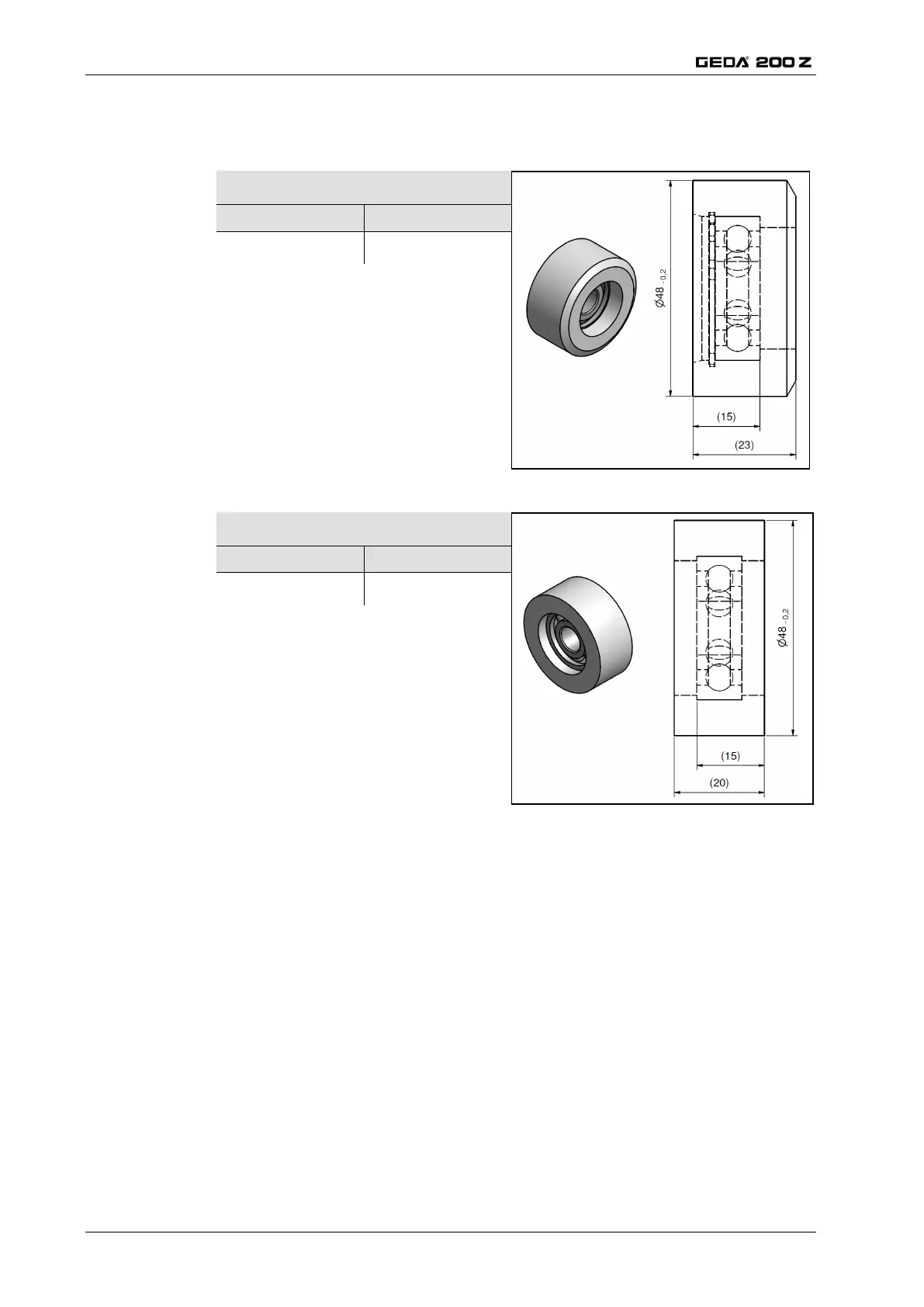

8.4.3 Tracks rollers
Track roller (white) Item No. 16921
Wear limit
(diameter)
Ø min.
Ø normal
47.5 mm 48
-0.20
mm
Also check the play and condition
of the bearing.
Track roller with chamfer (black) Item No. 03067
Wear limit
(diameter)
Ø min.
Ø normal
47 mm 48
-0.20
mm
Also check the play and condition
of the bearing.
