GEDA 200Z - Securing Loading and Unloading Points; Limit Switch Approach Bar for Landing Stop

Rack and pinion hoist
Assembly and Operating Instructions
53 / 100 BL108 GB Edition 03.2018 Rev. 02
5.5 Securing loading and unloading points
To prevent persons falling, fall protection must be installed at all loading
and unloading points where there is a risk of falling from a height of
more than 2 m.
The landing-level safety door “ECO”, together with the loading ramp on
the load platform, provides safe transfer to the building or scaffold.
 Assembly is described in the assembly instructions for the landing level
safety door.
5.5.1 Limit switch approach bar for landing stop
At a stop position, the limit switch approach bar can be set so that the
load platform ascending stops at the level of the landing-level safety
door.
Assembly
Install the limit switch approach bar at the required stop position, as
described in Chapter 5.4.1.

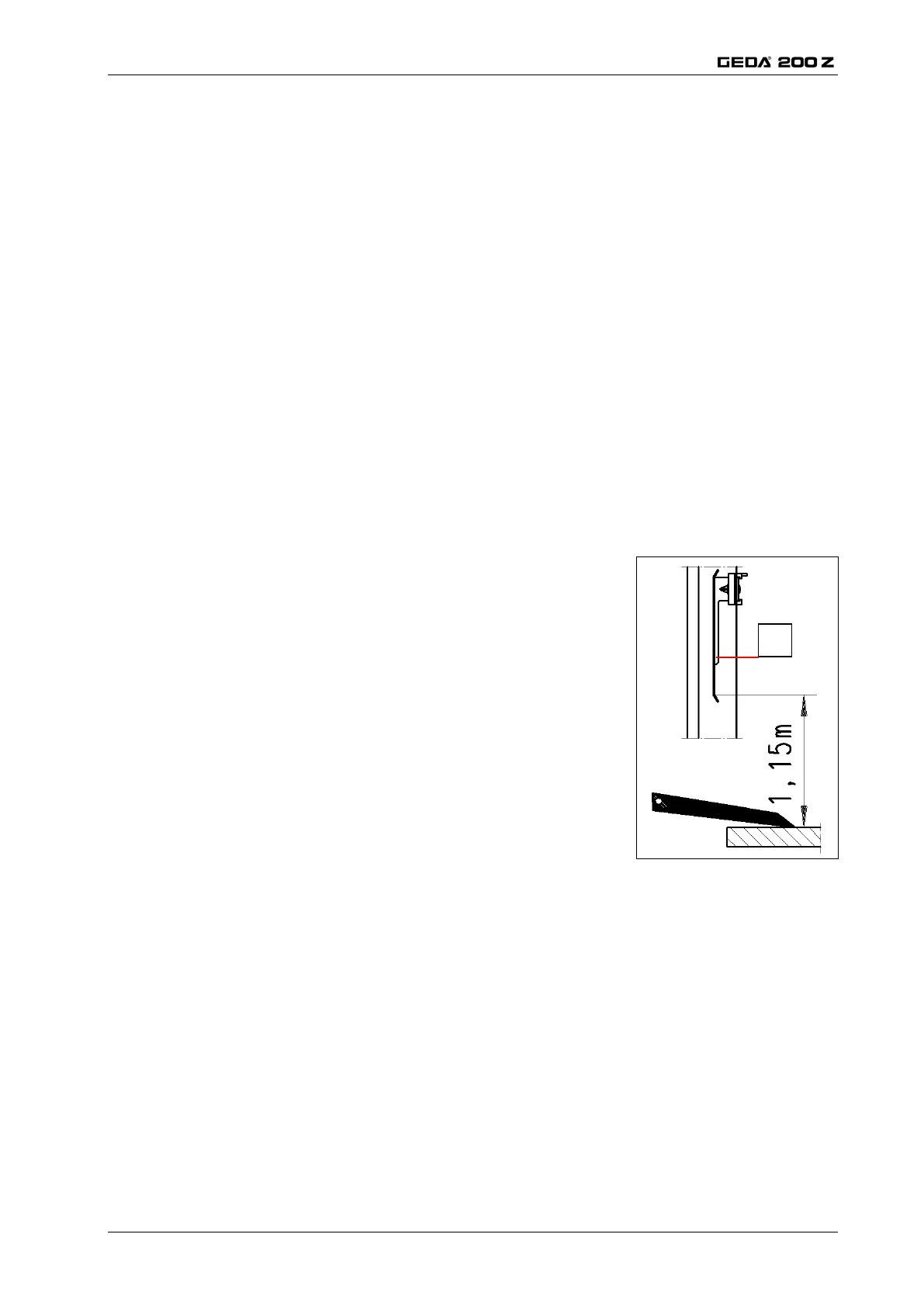

 Set the height of 1.15 m from the landing
floor to the lower edge of the approach
plate (1).
1
