Rack and pinion hoist
Assembly and Operating Instructions
43 / 100 BL108 GB Edition 03.2018 Rev. 02

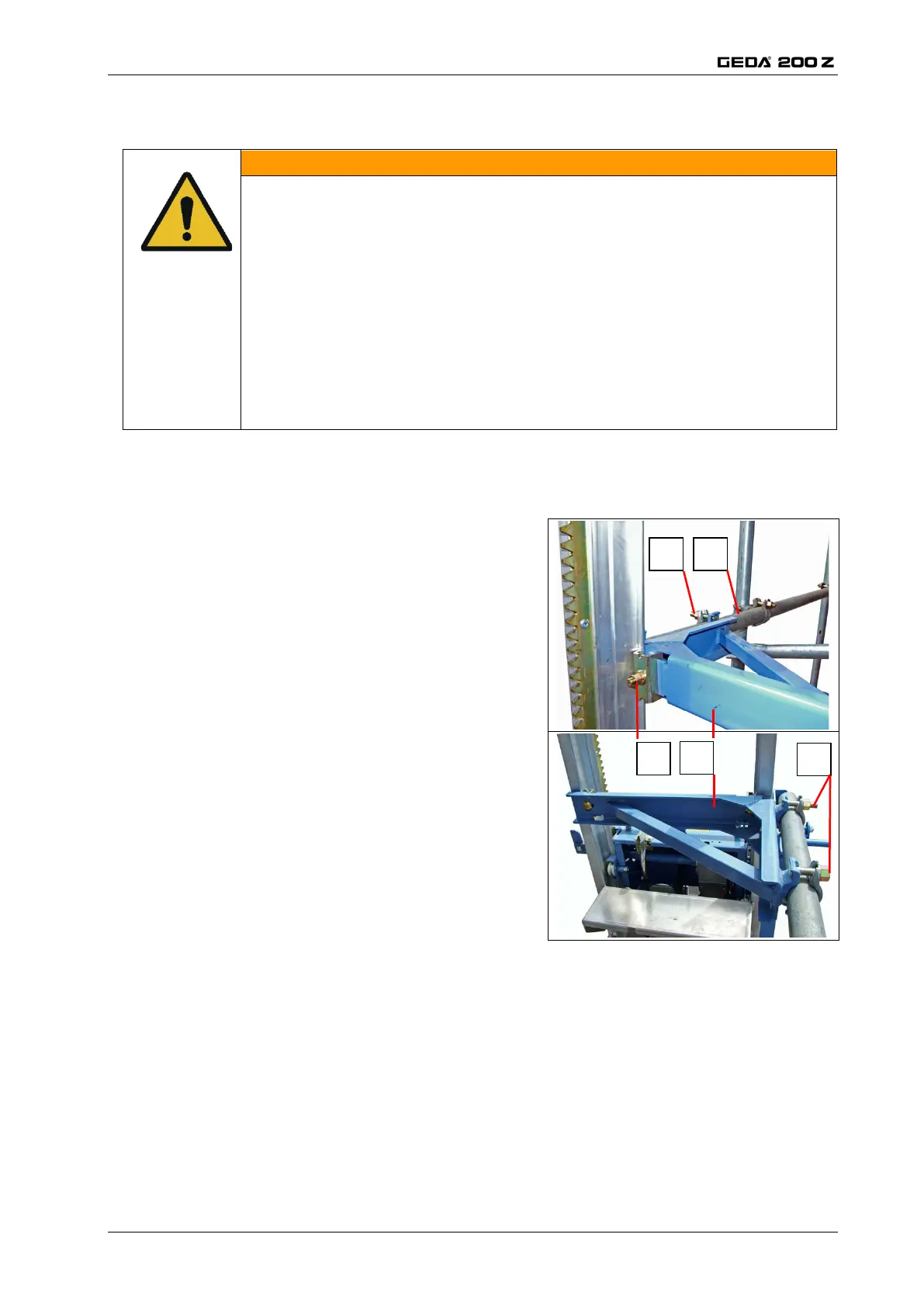

5.3.1 Install the rail bracket and anchor
Danger to life through fracture of the mast and falling load platform.
Vertical distances of the ladder ties
- First ladder tie at a height of 1.8 m.
- Next ladder tie at a height of 4.0 m.
- Subsequent ladder ties every 4.0 m.
After assembling a ladder tie, the ladder track must be correctly
aligned using a spirit level.
• Set the fastening tube / wall bracket (2) at a height of approx. 1.8 m
(where the scaffolding is below the decking).
• Fit rail bracket into the ladder section.
Clamp the rail bracket (1) to the
rear side of the ladder rails with
opened scaffold couplers. Do
not tighten the couplers so that it
is possible to push the rail
bracket up.
Offer the base unit with the rail
bracket vertical up to the
fastening tube (2).
Set the rail bracket (1) against the fastening tube, align horizontally
and secure with the two scaffold couplers (3).
Tighten rail bracket (1) at the nuts (4).
