GEDA 200Z - Ladder Section

Rack and pinion hoist
Assembly and Operating Instructions
31 / 100 BL108 GB Edition 03.2018 Rev. 02

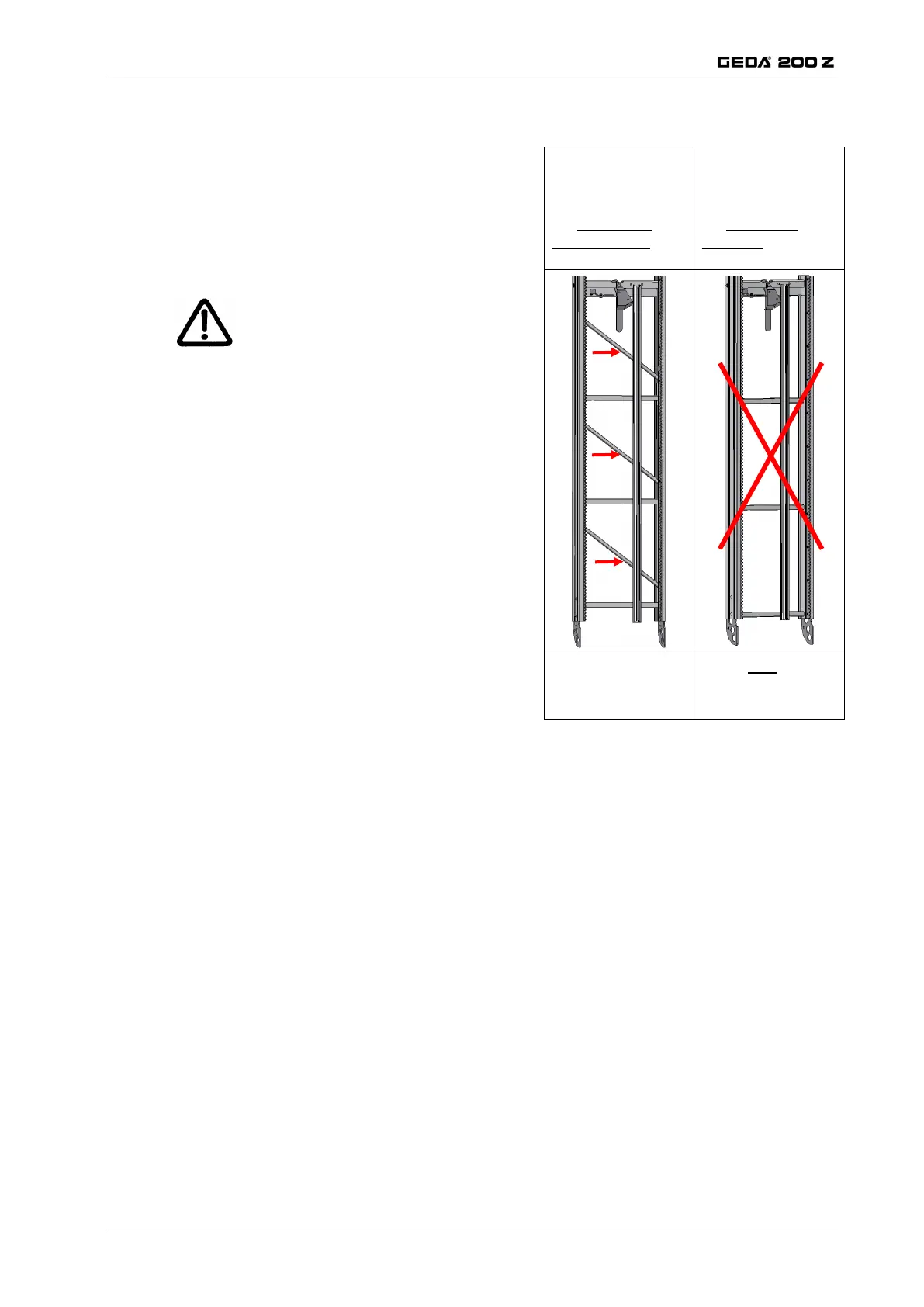

3.4.6 Ladder section
Ladder section
with
reinforcement
for swivelling
load platform
(GEDA 200 Z)
Ladder section
without
reinforcement
for fixed load
platform (GEDA
COMBILIFT 250 Z)
For reasons of static strength, only
ladder sections with diagonal
reinforcement welded in can be
used for the GEDA 200 Z!
Must not be
used with the
GEDA 200 Z!
Ladder section 1 m
(with gear rack, cable guide and quick lock
system)
Weight
12 kg
Ladder section 2 m
(with gear rack, cable guide and quick lock
system)
Weight
24 kg
First anchor / rail bracket
Attach the foot section to the
ground or at approx. 0.9 m
Second rail bracket
(distance ground to the rail bracket)
1.8 m
Third rail bracket
(distance ground to the rail bracket)
≤ 4 m
Vertical distance of further rail
brackets
≤ 4 m
Max. protrusion of ladder
Operation
Assembly
3 m
4 m
