3.3.2 Landing level control
To simultaneously transport material
to several landings, a landing
control is offered as an accessory,
up to four landings can be
specifically moved to.

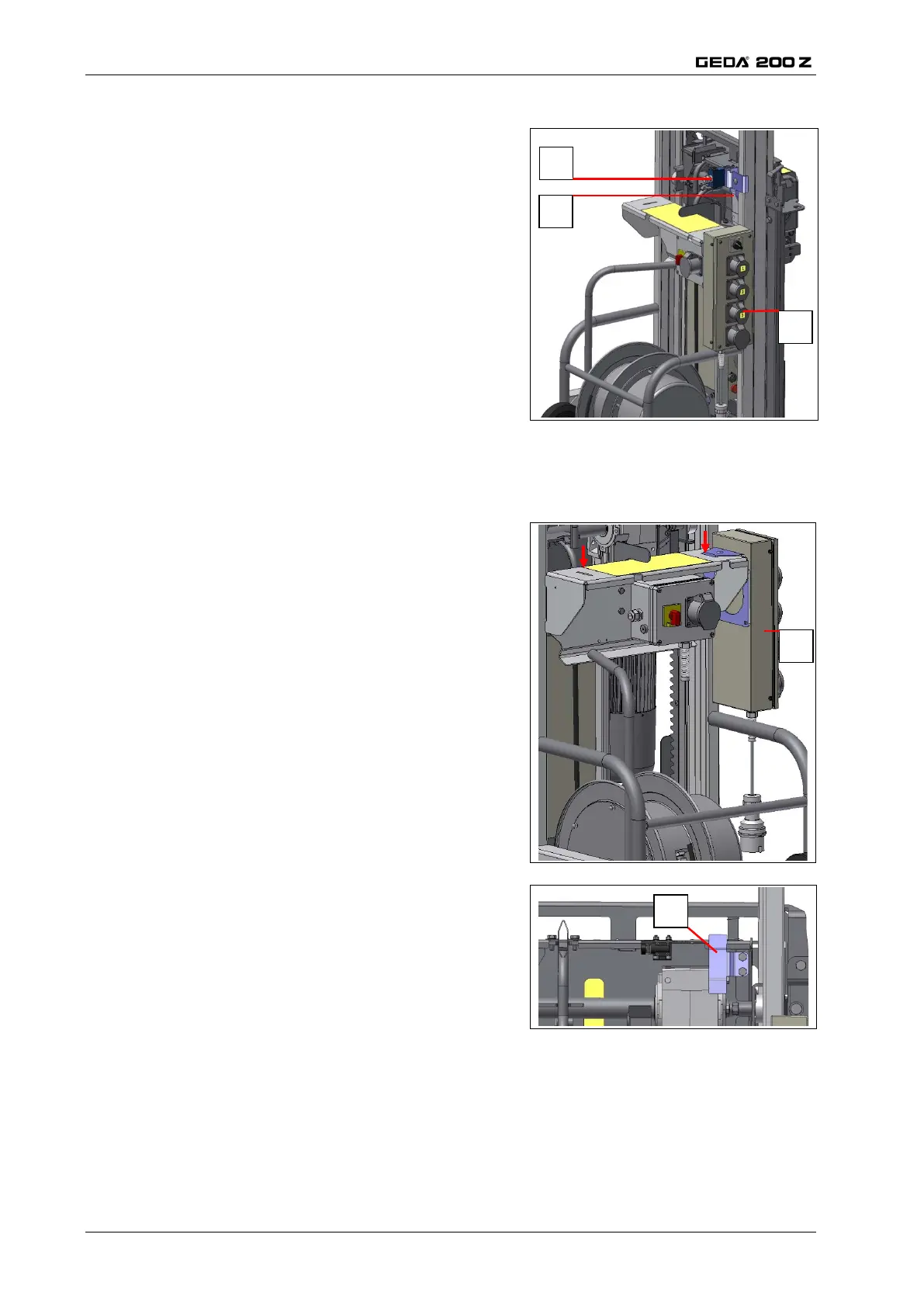

1 = Landing control
2 = Limit switch, approach area
3 = Landing limit switch
 The limit switch cables are 15 m long. An extension is required for
higher landings.
Assembly

Hang the landing control (1) over
the foot section of the switch box
on the roof.

The landing control can be hung
on both sides of the trolley.
 Install the limit switch approach
plate (2) to the trolley using the
screws (M8 x 18 mm) supplied.
2
3
1
1
2
