Rack and pinion hoist
Assembly and Operating Instructions
27 / 100 BL108 GB Edition 03.2018 Rev. 02

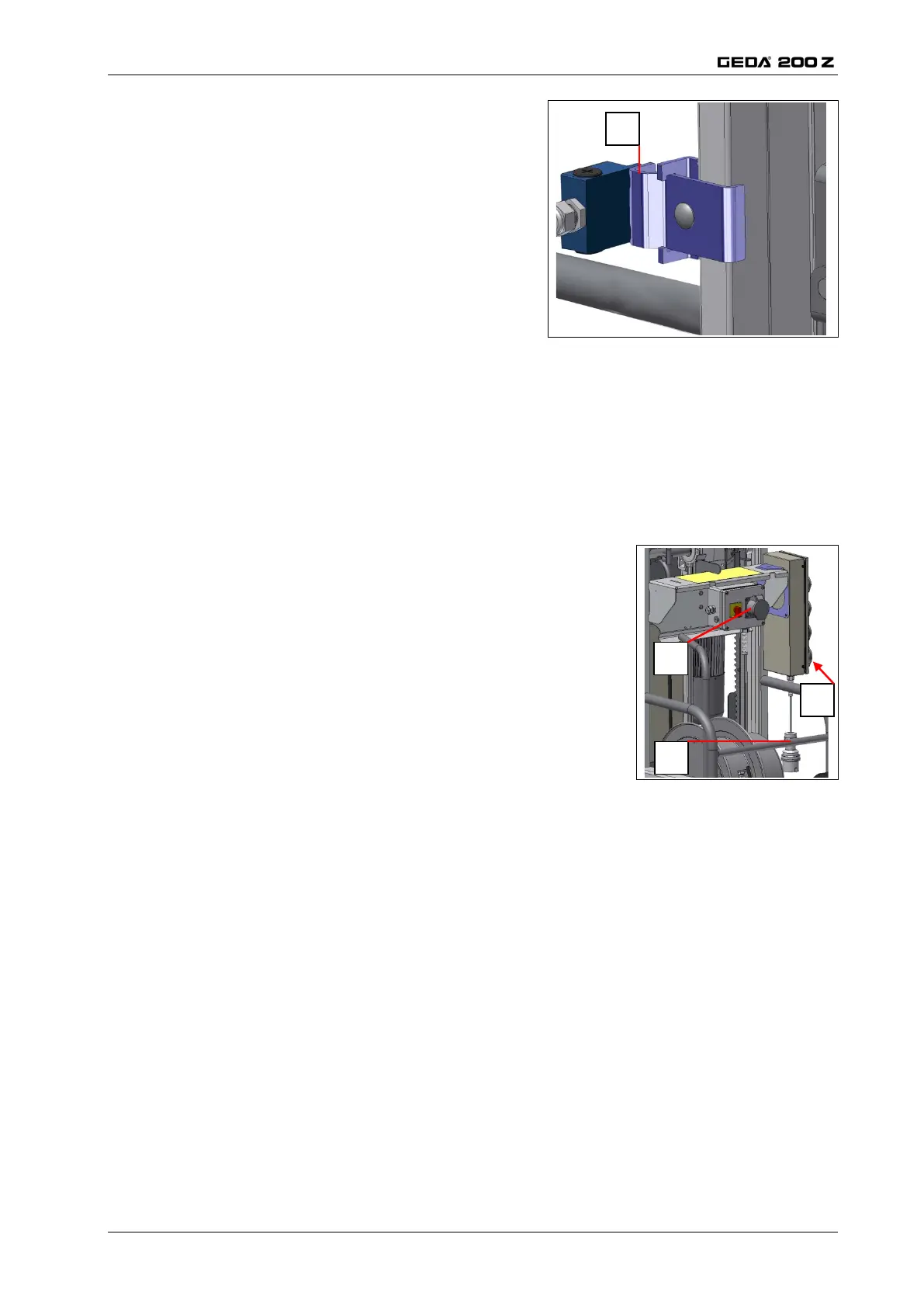

At the required stop position,
install the limit switch (3) on the
right ladder rail (viewed towards
the building).
The limit switch roller must point
to the rack.
Distance from the landing floor to the limit switch roller approx. 1.17 m
Route the limit switch cable to the switch box and plug it in there.
Carefully roll up the excess cable and bundle it in a ball loop. –
Otherwise it presents a hazard from catching on something or
from the cable being damaged.
Connect the supply line [5-pole plug] (5) for
the landing control in the socket on the
switch box of the foot section (4).
Connect the limit switch cable of the 1st landing in socket No. 1.
Connect the limit switch cable of the 2nd landing in socket No. 2.
Connect the limit switch cable of the 3rd landing (if present) in
socket No. 3.
Connect the manual control at the 5-pole socket (6).
