GEDA 200Z - Small On-Site Main Cabinet

Rack and pinion hoist
Assembly and Operating Instructions
28 / 100 BL108 GB Edition 03.2018 Rev. 02

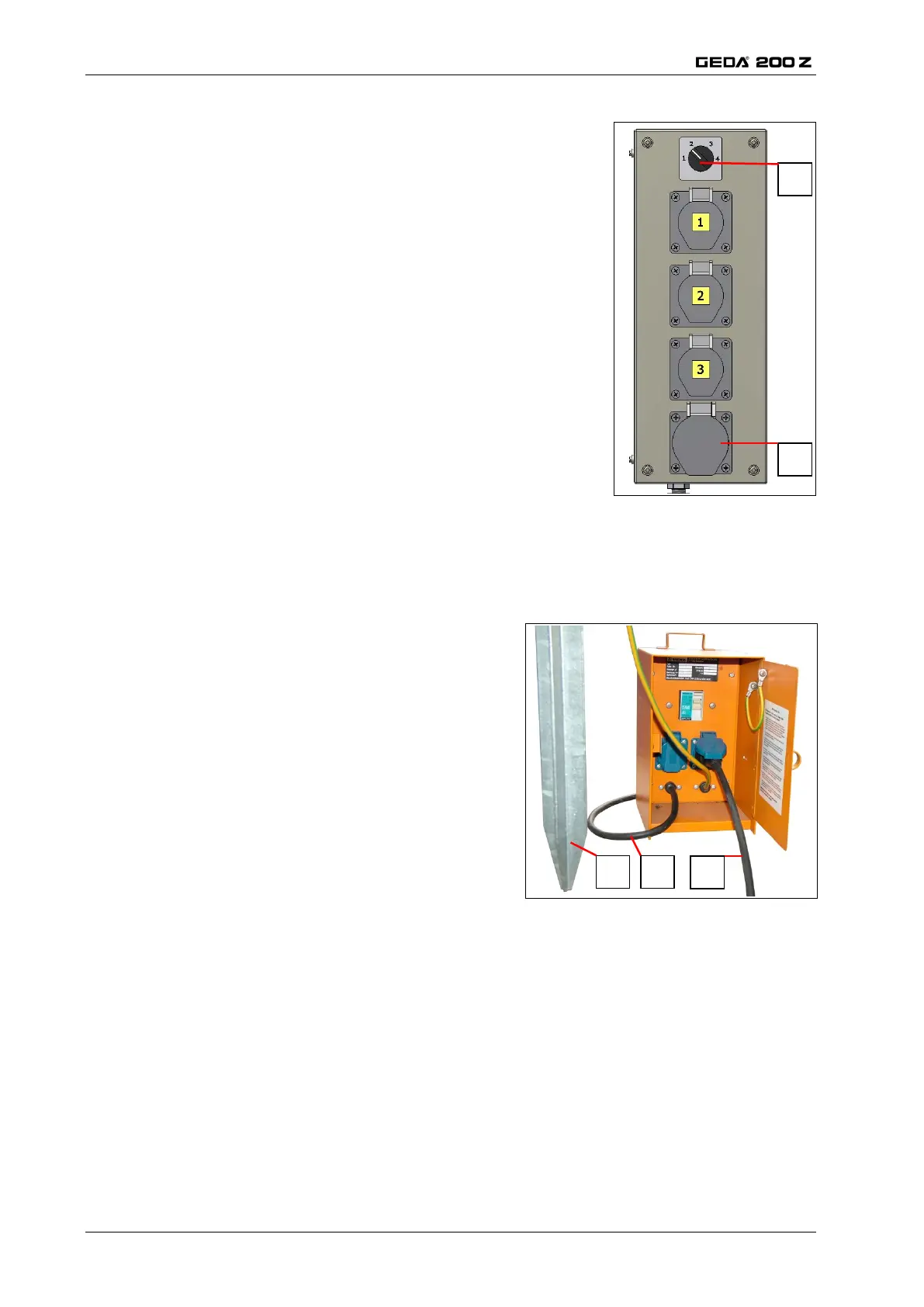

Operating the landing control

Set the selector switch (7) to “1”.
When ascending, the load platform stops at
the 1st landing limit switch.
 Set the selector switch (7) to “2”.
When ascending, the load platform stops at
the 2nd landing limit switch.
 Set the selector switch (7) to “3”.
When ascending, the load platform stops at
the 3rd landing limit switch.
 Set the selector switch (7) to “4”.
When ascending, the load platform stops at
the approach plate of the UP limit switch
(refer to Chapter 5.5.1).
6 = Socket (5-pole) for manual control
 When descending, the landing limit switch is not active.
3.3.3 Small on-site main cabinet
Assembly
 Drive the earth rod (3) into the
ground and connect it with the
yellow/green PE conductor on
the building site main cabinet.
 Connect mains line of the
building site main cabinet (1) to
the mains supply on the
construction site.
 By pressing the Test button, the earth-leakage circuit breaker is
activated for testing.
 Plug in mains line for the base unit (2) at the building site main
cabinet.
3
1
2
7
6
