Rack and pinion hoist
Assembly and Operating Instructions
47 / 100 BL108 GB Edition 03.2018 Rev. 02

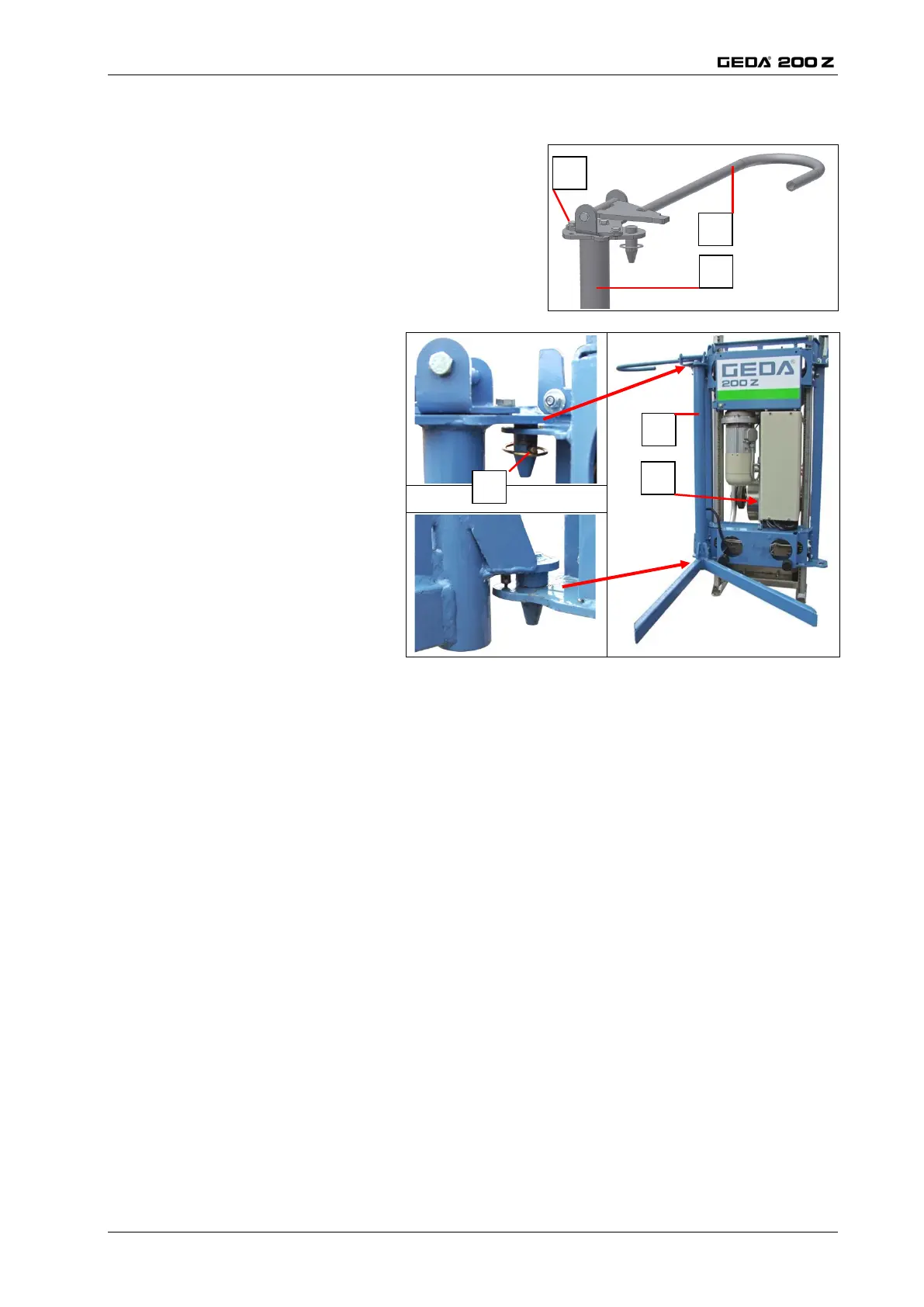

Fitting the swivelling frame on the left-hand side of the trolley
• Prepare the swivelling frame for the left-hand side of the trolley
Fit the turning lever support (2)
onto the turning unit (4)
according to the drawing using
the three M10 x 16 bolts and
spring washers (3).
swivelling frame
(4) on the
mountings on
the left-hand
side of the
trolley and
secure with a
fast pin (5).
Route the plug for the swivel limit switch to one of the two sockets (6)
on the trolley switch box and plug in.
