Softkey level 1:
ATOMS To enter atmospheric data ppm.
Pointer To switch the laser pointer on or off.
OK To save changes and return to previous
screen.
Softkey level 2:
Grid To enter scale and altitude for scale cor-
rection.
Signal To display the intensity of the reflected
EDM signal. This function helps you aim-
ing at distant, barely visible, targets.
•
To toggle through the available softkey levels press F4.
•
To select a field for editing, press the UP/DOWN keys.
•
To toggle through the available EDM modes or reflector types, press the LEFT/RIGHT
keys.
Field Description
EDM Mode Single Quick measuring mode, with higher measur-
ing speed and reduced accuracy.
Repeat Instrument repeatedly takes measurements
until ESC key is pressed.
Tracking For continuous distance measurements.
3 Times Instrument takes three single measurements.
4 Times Instrument takes four single measurements.
5 Times Instrument takes five single measurements.
Reflector Prism/Non-Prism Set the reflector type.
When using a prism, you also need to set the
corresponding prism constant.
P.C. Prism constant.
☞
The entered prism constant is only effective when the
reflector type is set to Prism.
Input can only be made in mm.
Limit value: -999.9 mm to +999.9 mm.
Default value: 0 mm.
The set prism constant is kept even when switching off
the instrument.
☞
Enter the prism constant manually according to the prism
used
Dist Mode Standard For standard measurements
Long (>3 km) For measurements over long distances
This screen enables the entry of atmospheric parameters. Distance measurement is influenced
directly by the refractions of the air in which the measurements are taken. In order to take these
influences into consideration distance measurements are corrected using atmospheric correction
parameters. The refraction correction is taken into account in the calculation of the height differ-

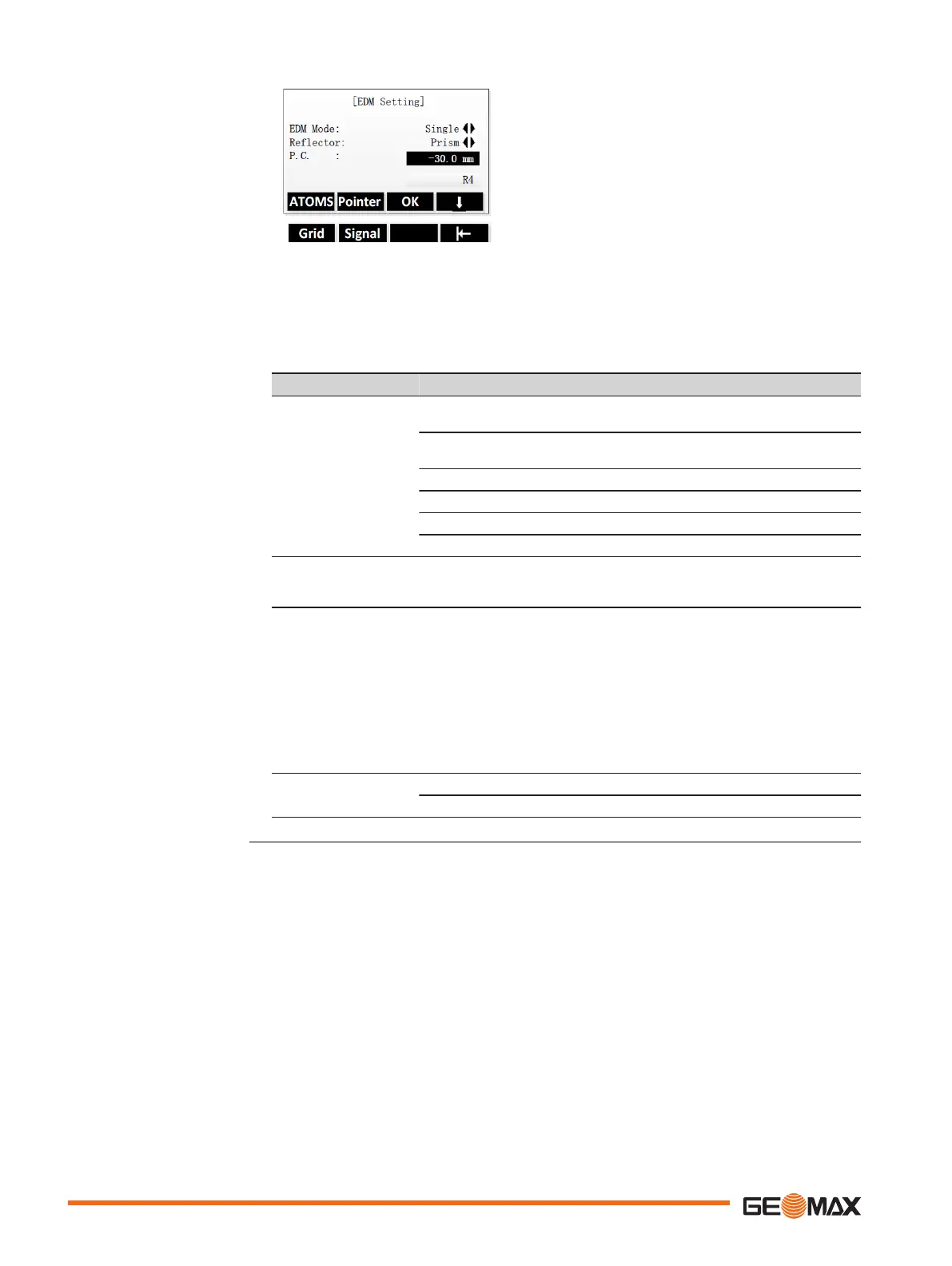

EDM Setting
Atmospheric data
34 Settings
To Next Page
