1. Use the UP/DOWN keys to select an editable field.
Enter the necessary offset parameters.
The software calculates the resulting point coordinates.
2. To start staking the calculated point, press OK.
Staking out the calculated point
1. To select the desired stakeout mode, press the PAGE key.
•
For Polar Stakeout mode, display screen 1/2.
•
For Orthogonal to Station Stakeout mode, display screen 2/2.
☞
For a detailed description of stakeout modes, refer to "9.3 Stakeout".
2. To stake out another point, press NEXT PT.
The Segment Stakeout subapplication calculates and displays the stakeout elements for points
along the reference line. Line Segmentation is limited to the reference line, between the defined
start and end points of the line.

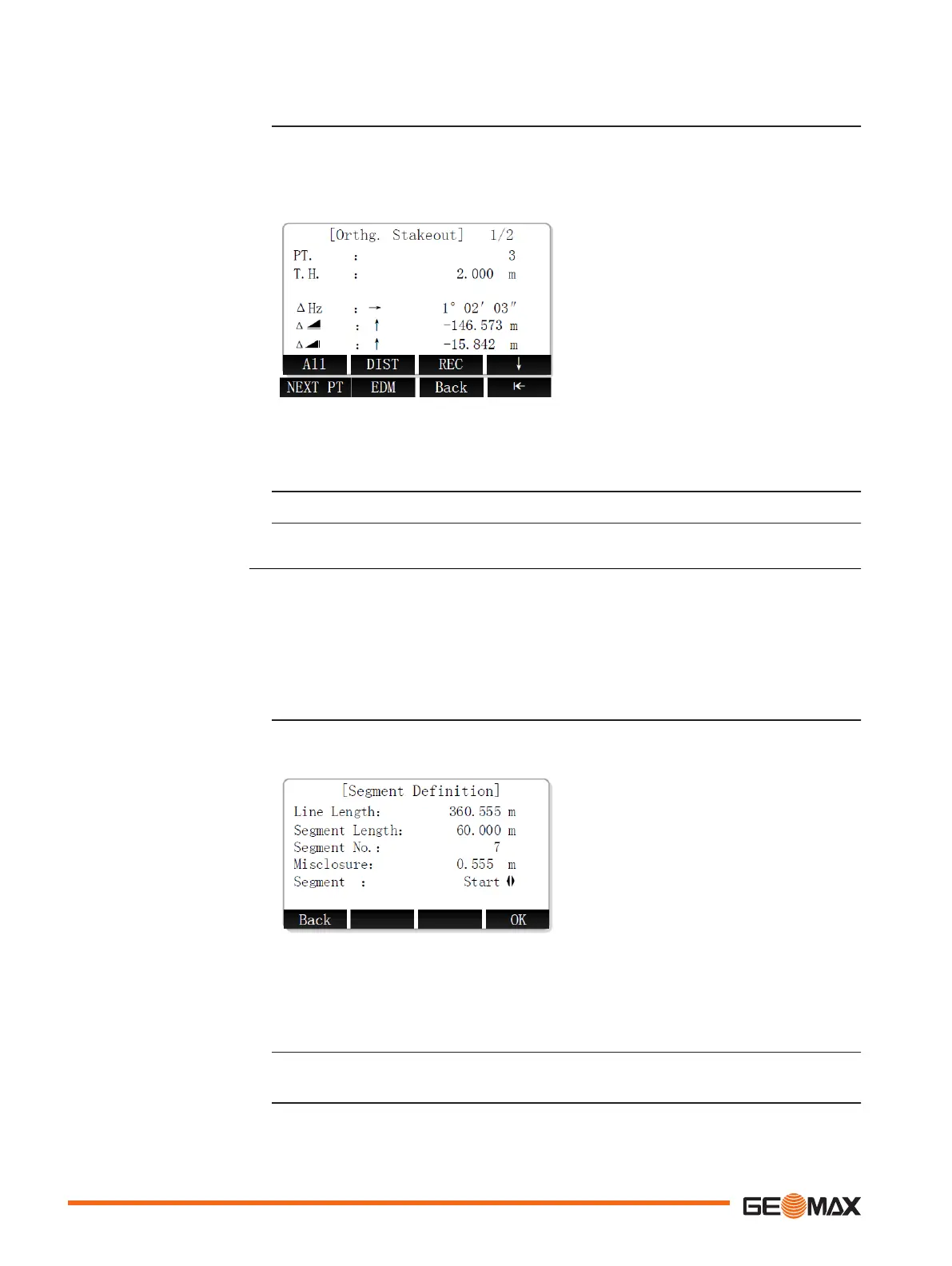

Defining the segments
1. Use the UP/DOWN keys to select an editable field.
Enter either the number of segments, or the length of segments and define how
the remaining line length is treated.
2. To start staking the first segment, press OK.
Staking out a segment point
1. To select a segment point for staking, select "Segment No." or "Cum. Length" and
press the LEFT/RIGHT keys.
2. To select the desired stakeout mode, press the PAGE key.
•
For Polar Stakeout mode, display screen 1/2.
•
For Orthogonal to Station Stakeout mode, display screen 2/2.
Segment stakeout
80 Application
