Getinge Maquet FLOW-i 4.2 User Manual

8.9 Screen layout
Allows the user to configure the screen layout
and brightness. Layout options include display
loops and rotameter, waveform combinations
and the scaling of these.
4
5
1
2
6
98
3
7
1. Display rotameter
2. Display numerical gas pressure
3. Display predicted body weight (PBW)
4. Display short trends tab
5. Display loops tab
6. Display volume reflector indicator (VRI)
tab
7. Display graphical gas pressure tab
8. Waveforms and Scales settings
9. Screen brightness
The screen layout settings are not saved at
system shutdown. However, the startup
configurations for waveform and rotameter
display can be selected using Menu/Service
& Settings.

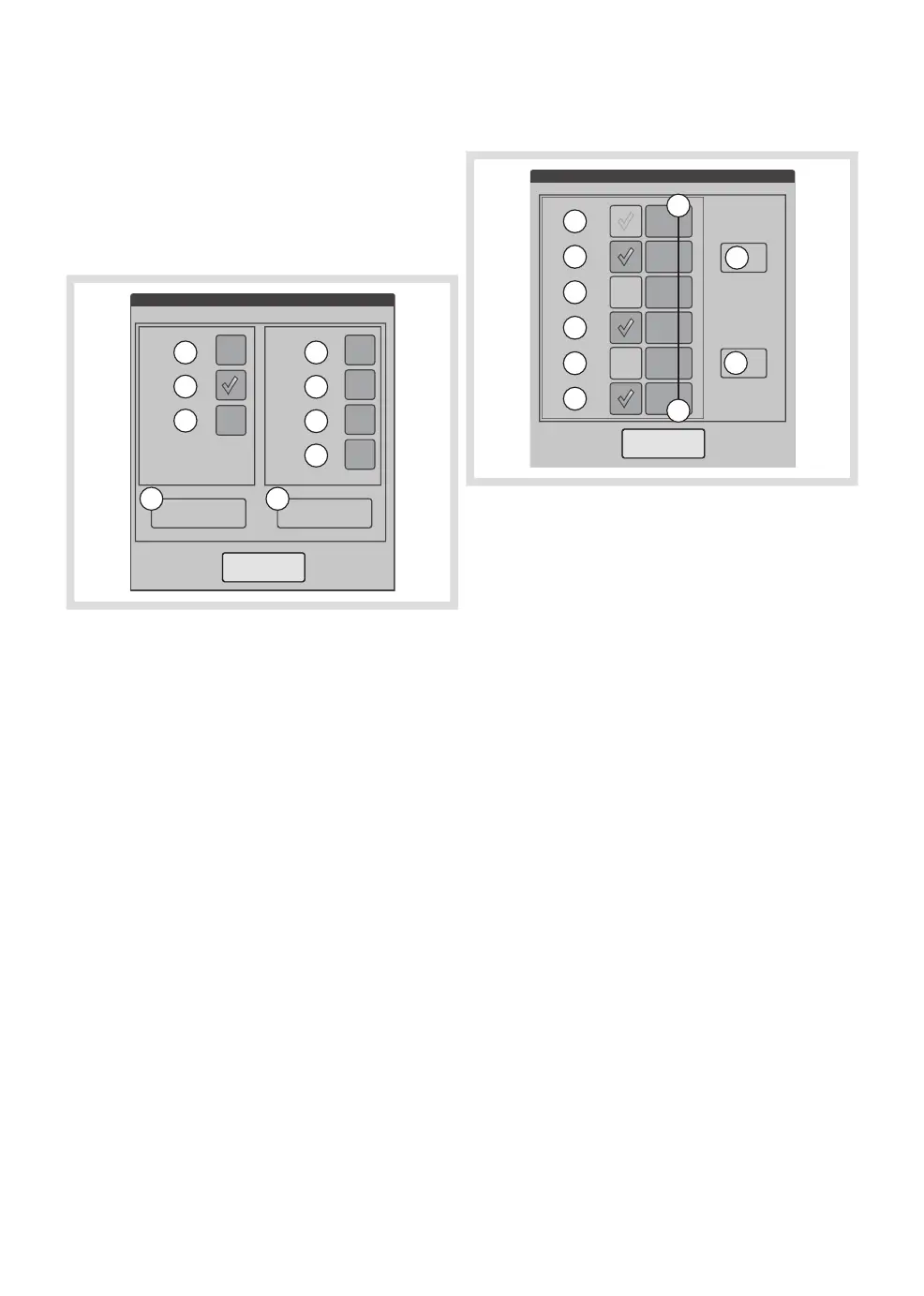

8.9.1 Waveforms and scales
1
2
8
3
4
5
6
7
7
9
Waveform scaling can be set to manual or
automatic. Waveform sweep speed can be
set to either 5, 10 or 20 mm/s (0.2, 0.4 or 0.8
in./s)
The screen can be configured to display up
to six different waveforms:
1. Pressure (mandatory)
2. Flow
3. Volume
4. CO
2
5. O
2
6. Anesthetic agent concentration
7. Waveform scaling
8. Sweep speed
9. Short trend range (10, 30, or 60 minutes)
FLOW-i 4.2, User's Manual
163
| Membrane buttons |
8 |
