3.2.1 Areas of the screen
7
8
9
10
5 2 1
4 3
6
11 12 13

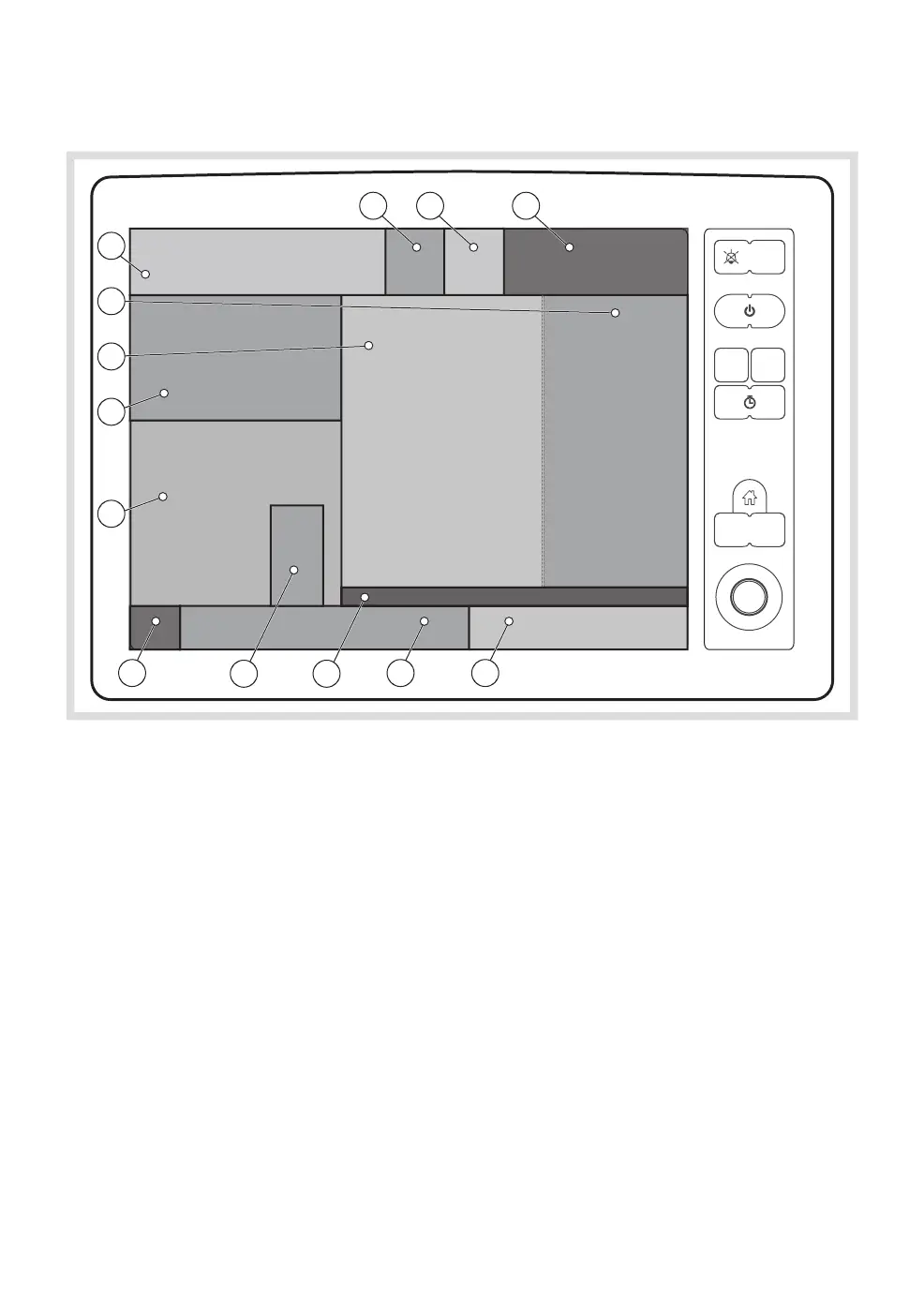

The screen is divided up into a number of different areas:
9. Tab area:
- Short trends
- Loops
- Volume Reflector Indicator
- Gas supply pressure
10. Current alarm and status area
11. Alarm functions
12. Timer
13. Mode indicator
1. Ventilation direct access settings
2. Gas direct access settings
3. Activate additional settings/gas settings
window
4. Fresh gas mix rotameter
5. APL valve value
6. Gas measurement area
7. Ventilation measurement area
8. Waveform area
20
FLOW-i 4.2, User's Manual
| 3
