3.3 Patient monitor (option)
The system can be connected to a selection
of different patient monitors. For full details,
contact your local MAQUET representative.
The patient monitor must comply with
IEC 60601-1 ed. 3.
During mains power failure, the backup battery
in the anesthesia system will not power the
patient monitor.
3.3.1 Panel interchangeability
If desired, the placement of the control panel
and the patient monitor can be switched so
that the patient monitor is placed on the
display arm. This procedure shall only be
performed by a service technician trained and
authorized by MAQUET. Contact your local
MAQUET supplier for more information.
3.4 Breathing system
12
13
7
6
8
53
1
4
2
10
11
9

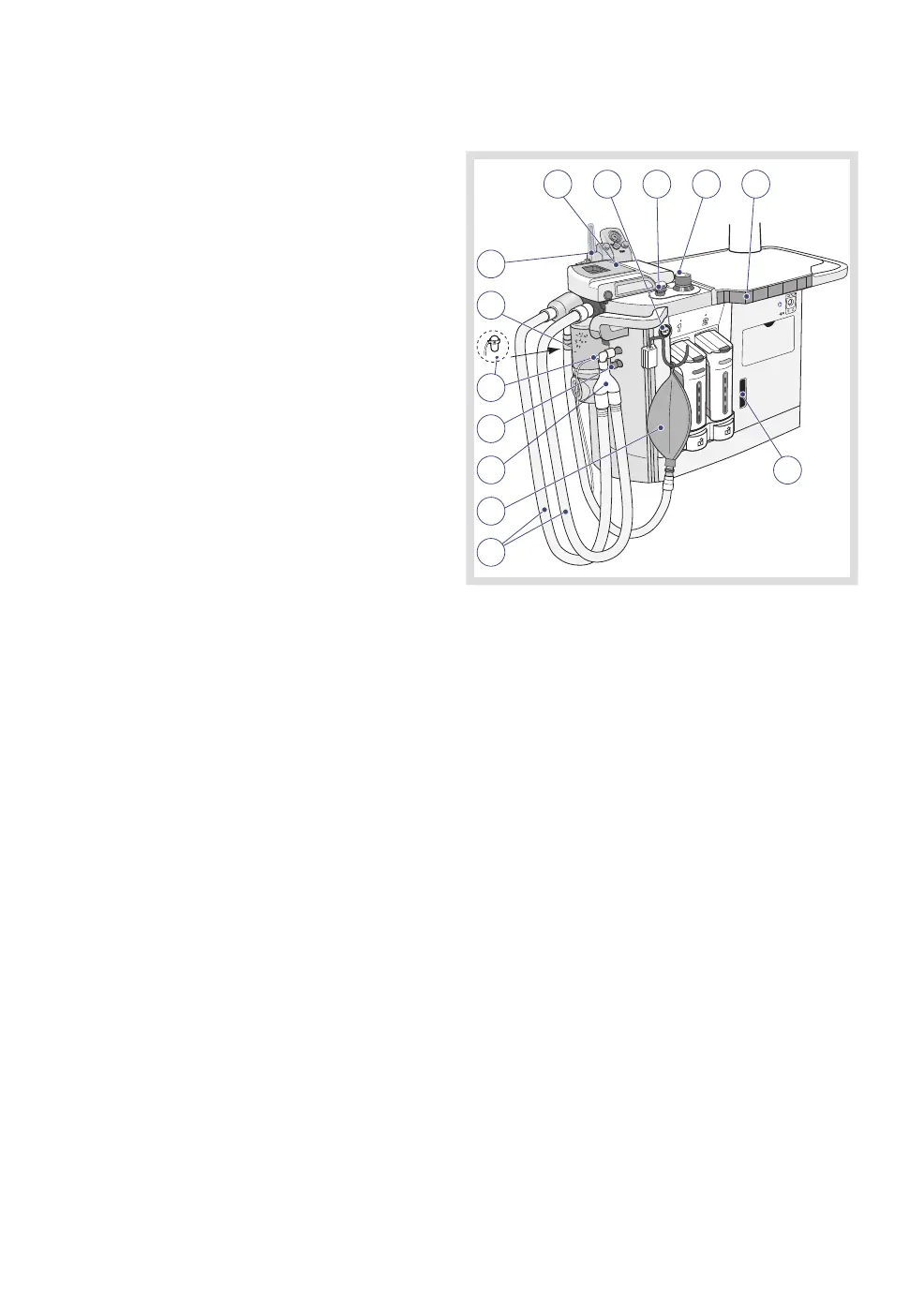

The breathing system comprises the following:
1. Patient cassette
2. O
2
flush
3. MAN/AUTO ventilation switch
4. APL valve
5. Volume reflector
6. AGS (Anesthetic Gas Scavenging) flow
indicator
7. Patient tubing
8. Manual breathing bag with tubing
9. Y-piece
10. AFGO - Additional Fresh Gas Outlet
(option)
11. Water trap and sampling line
12. CO
2
absorber
13. Auxiliary O
2
and suction module (option)
MAQUET recommends that a bacterial/viral
filter is always connected to the expiratory
connection on the patient cassette. This will
minimize the risk of cross-contamination.
FLOW-i 4.2, User's Manual
25
| System overview |
3 |
