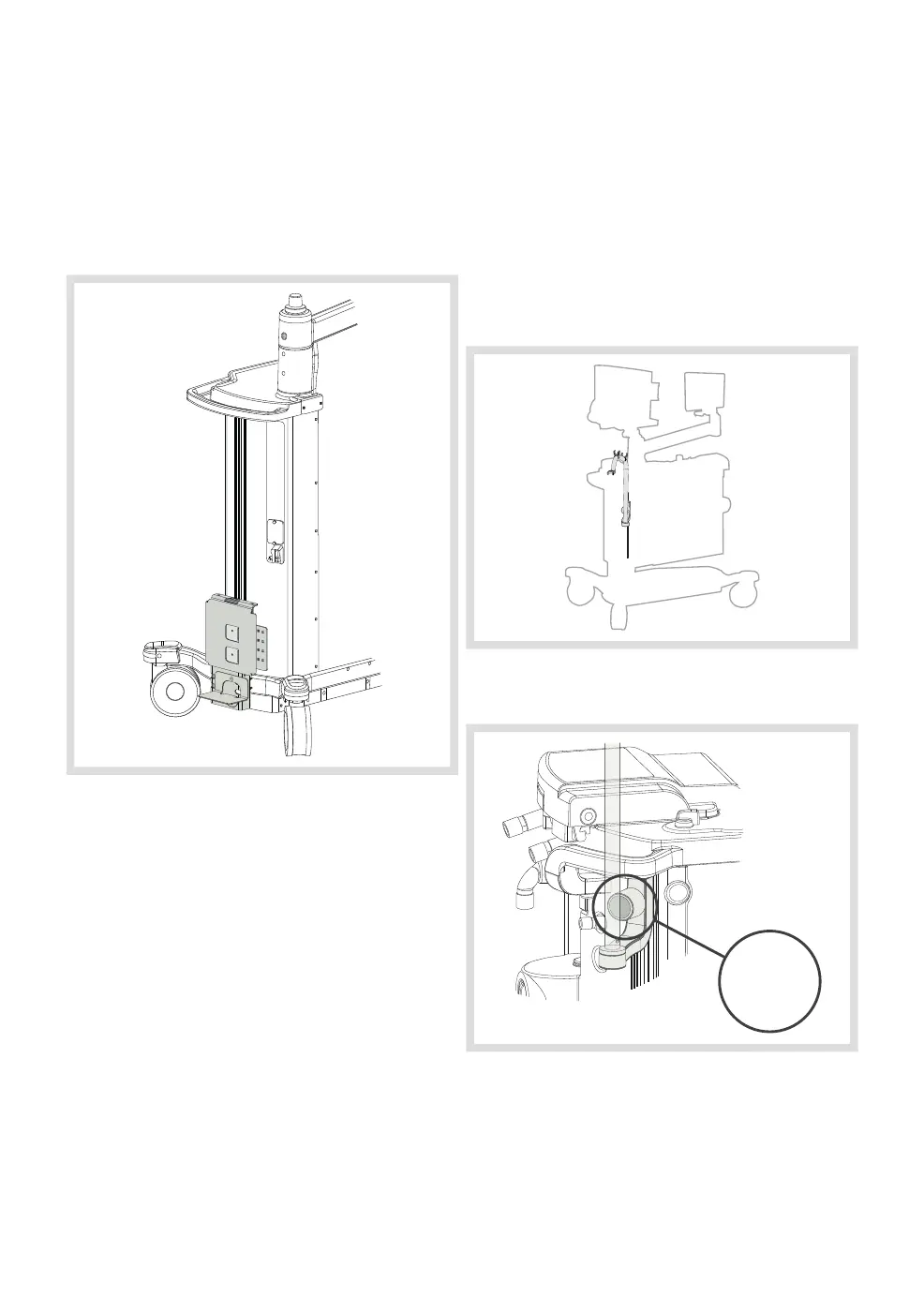

3.12.2 Universal bracket for C20
The universal bracket for C20 is intended for
use with the FLOW-i C20 model only. It
provides additional space for mounting
accessory equipment.
The universal bracket is permanently attached
to the core unit, and shall only be removed by
a service technician trained and authorized by
MAQUET.
Maximum dimensions of mounted equipment
is approximately 430x340x180 mm (WxHxD).
Always ensure mounted equipment is properly
secured before starting a patient case.
3.12.3 Manual breathing bag support arm
The support arm provides a static and secure
support for the manual breathing bag and
associated tubings.
The support arm shall only be used to secure
the manual breathing bag and associated
tubings.
Connection
A
The support arm is fastened to the vertical
railing on the core unit by turning the fastening
knob (A).
42
FLOW-i 4.2, User's Manual
| 3
| System overview |
