3.12.4 EVAC Restrictor
The EVAC restrictor acts to reduce the
pressure difference between high vacuum
evacuation systems and the FLOW-i AGS
outlet. This ensures proper gas evacuation
without adverse side effects.
The EVAC restrictor may only be installed by
a service technician trained and authorized by
Maquet.
AGS hose assemblies connected to the
system shall comply with ISO 80601-2-13.
If equipped with alternate connector systems,
the connectors shall comply with DISS:
CGA-V5:2008 (WAGD), SS 875 24 30:2004
(UTS).
Restrictor unit
A

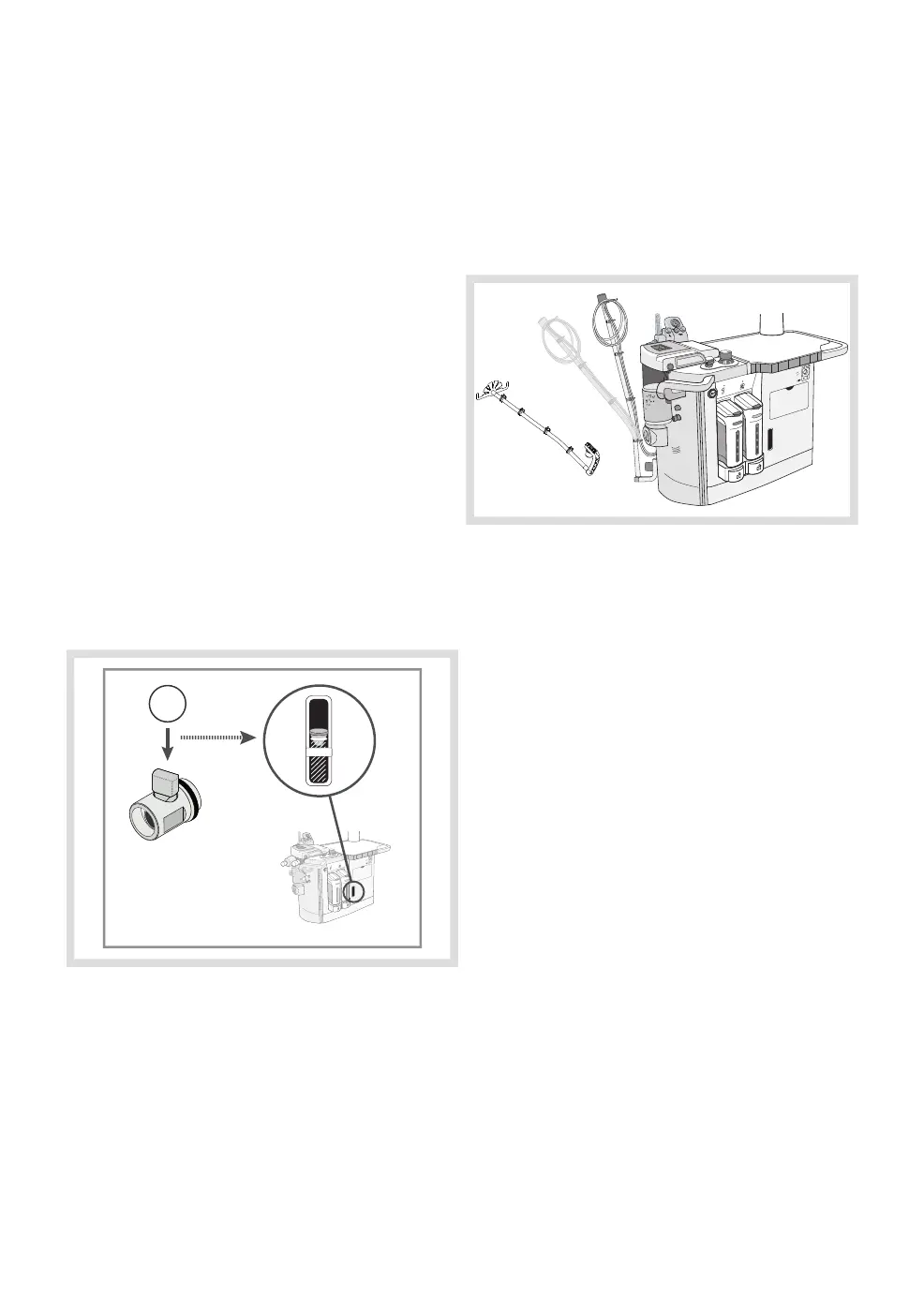

The apropriate evacuation flow is achieved by
turning the adjusting knob (A), so that the
evacuation floater in the AGS flow meter
hovers above the dashed area. This ensures
sufficient evacuation flow.
3.12.5 Cable support arm
To organize and manage cables connecting
the patient to the patient monitor, a cable
support arm can be attached to any of the
system's four vertical shafts.
The arm can be bent and angled to provide
the most suitable cable arrangement. Ensure
that the emergency ventilation hatch is not
obscured by the cable support arm.
The cable support arm is to be used for
electrical cables only. It shall not be used for
patient tubings or any other equipment.
The maximum load is 1.1 lbs.
FLOW-i 4.2, User's Manual
43
