3.12.6 Top shelf
The top shelf is attached to the display
column. Various types of equipment, e.g.
parameter box and patient monitor, can be
used in combination with the shelf.
20”
The top shelf, along with any associated
equipment, shall be assembled by a hospital
technician.
CAUTIONS:
• The maximum load of the top shelf is 20
kg. Applies to all system models.

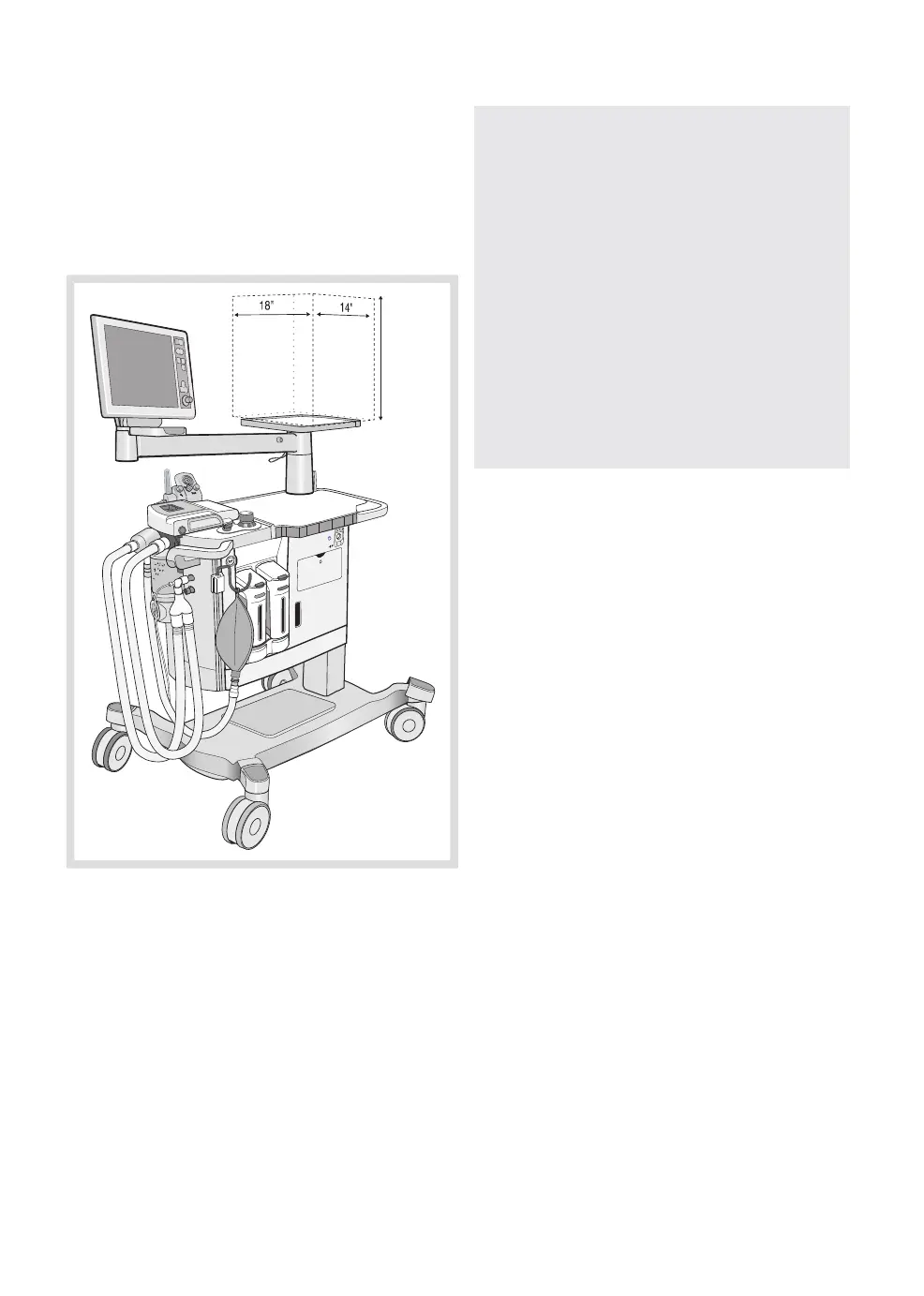

• The size and placement of equipment
mounted on the top shelf must be
constrained to the following dimensions:
- Height: 20 in.
- Width: 14 in.
- Depth: 18 in.
• Ensure that equipment mounted on the
top shelf is properly fastened.
• Be aware of equipment mounted on the
top shelf when moving the display arm.
