Positioning the screen holder(s)
84 / 116
Maquet PowerLED II
IFU 01811 EN 10
Positioning the screen holder
a
b
d
c
e
+
-
+
-

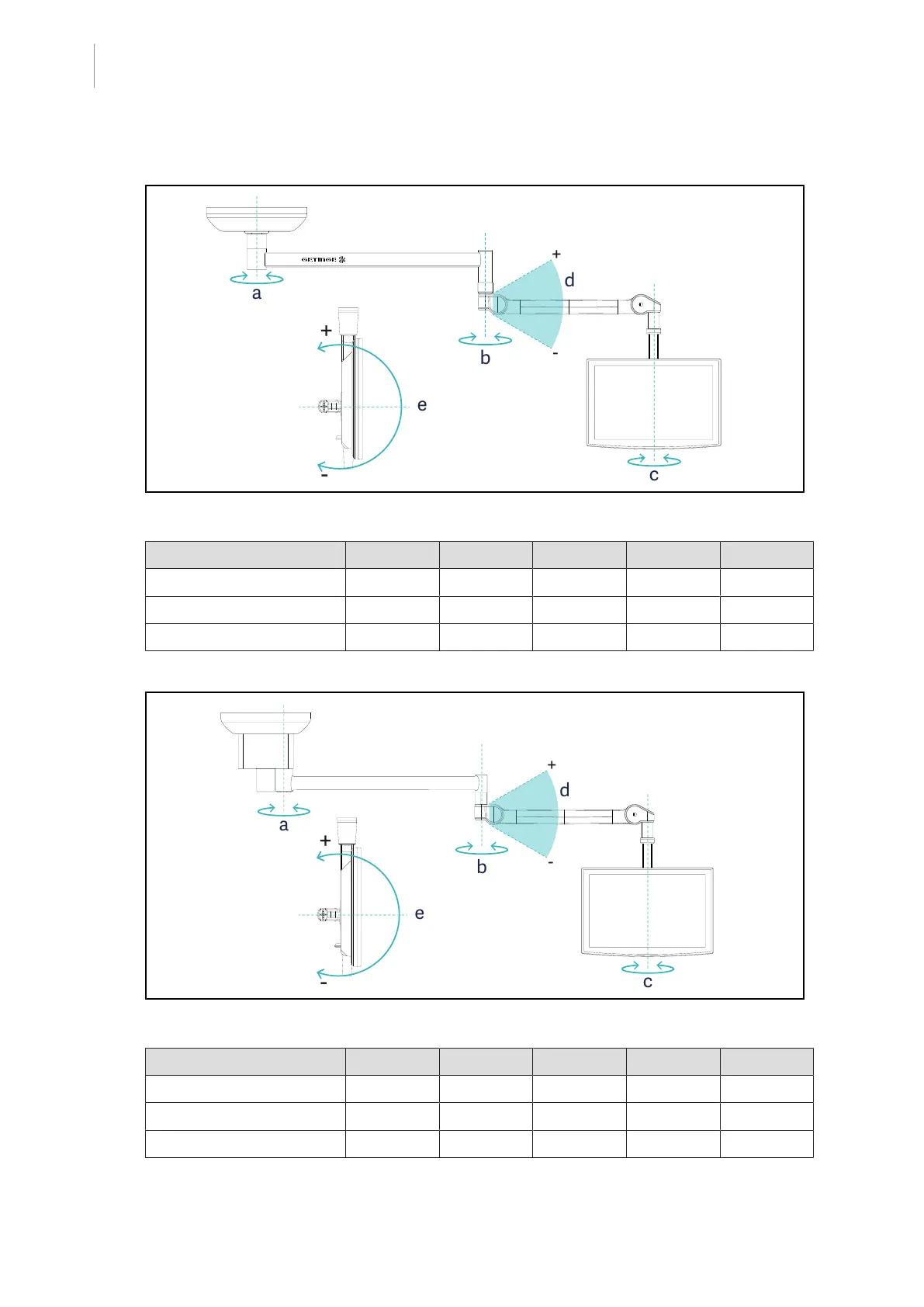

Fig.107: Possible rotations on a SAX suspension
Screen holder a b c d e
MHS0 360° 360° 315° +45°/-70° 
XHS0 360° 360° 315° +45°/-70° -45°/+90°
XHD1 360° 360° 330° +45°/-70° -60°/+10°
Tab.18: Rotation amplitude values (in degrees) on a SAX suspension
a
b
d
c
e
+
-
+
-
Fig.108: Possible rotations on a SATX suspension
Screen holder a b c d e
MHS0 270° 360° 315° +45°/-70° 
XHS0 270° 360° 315° +45°/-70° -45°/+90°
XHD1 270° 360° 330° +45°/-70° -60°/+10°
Tab.19: Rotation amplitude values (in degrees) on a SATX suspension
