Use

Settings and functions

Maquet PowerLED II

IFU 01811 EN 10

89 / 116

4.9.1 Screen brightness

1 2

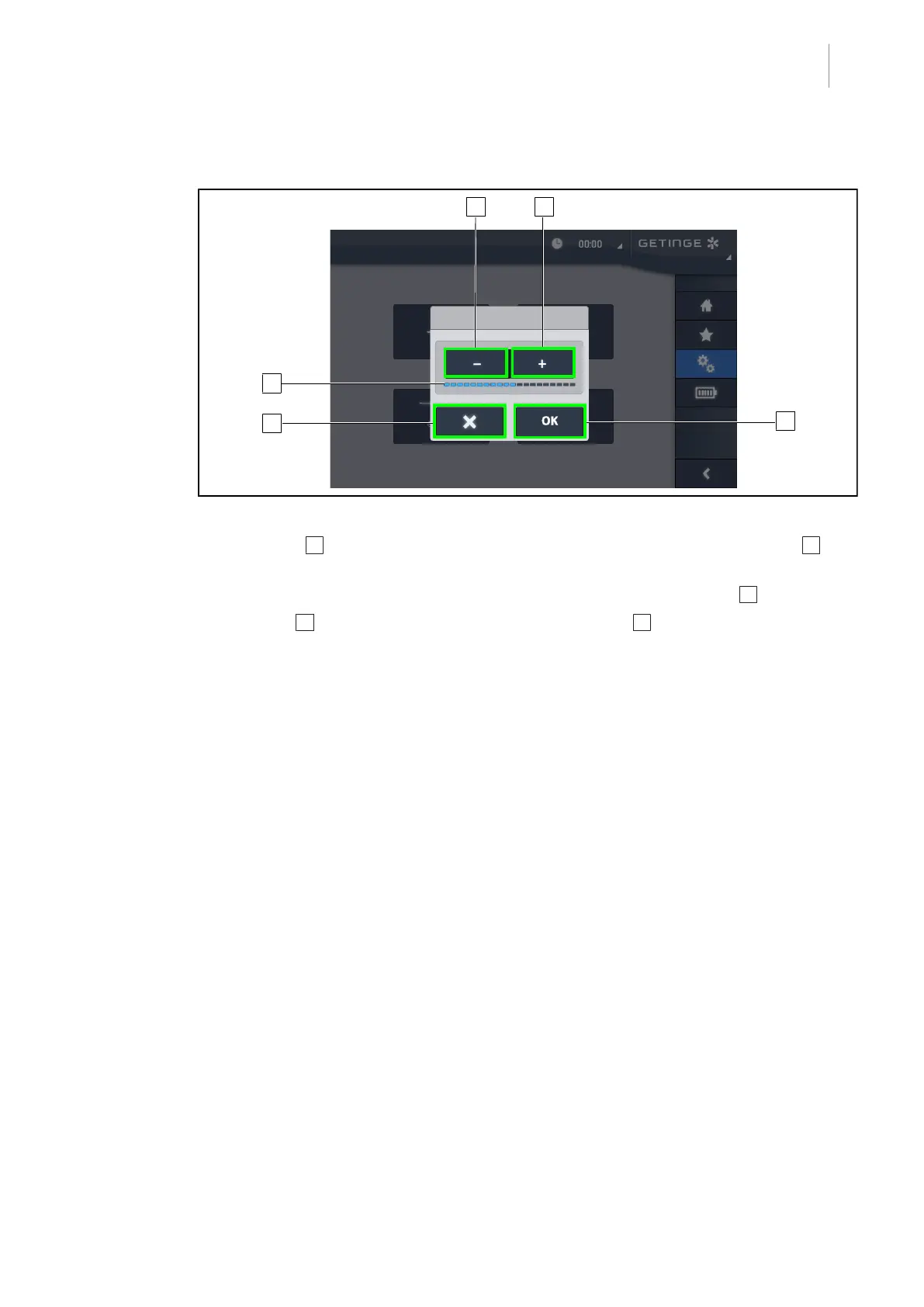

Fig.115: Adjusting the screen brightness

1. Press Plus 2 to increase the brightness of the touchscreen control panel or Minus 1 to de-

crease the brightness.

Ø The screen brightness varies as shown by the brightness level indicator 3 .

2. Press OK 5 to confirm the brightness changes, or Cancel 4 to cancel the changes in pro-

gress.

Ø The configured brightness is stored and applied.
