4.2.2.2 From the touchscreen control panel
1
2
3
4
5
6 7
8

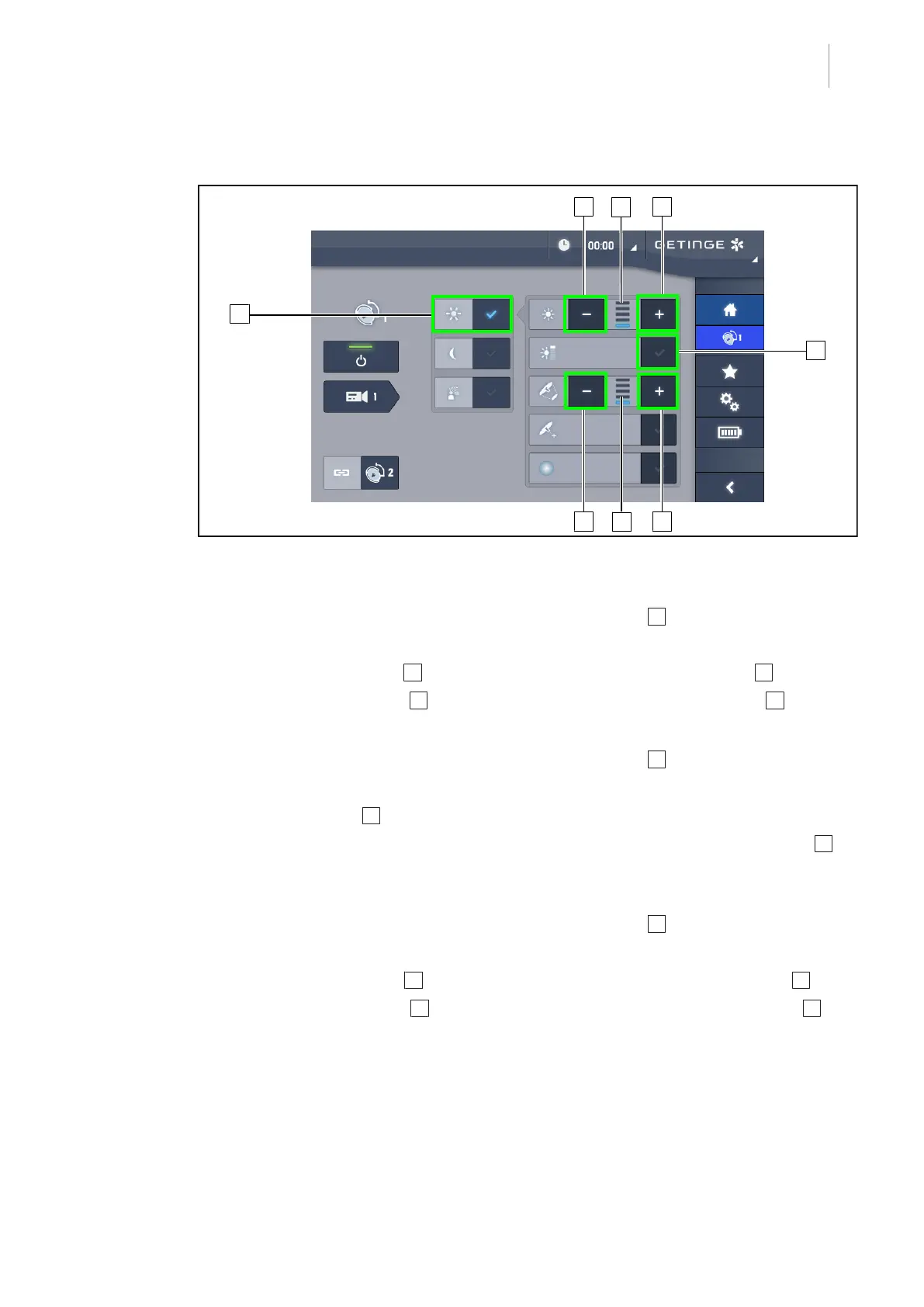

Fig.52: Adjusting the illumination level via the touchscreen control panel
Adjusting the light intensity
1. From the lighthead page, press the Illumination adjustment 1 button.
Ø When enabled, the button is blue.
2. Press Increase intensity 3 to increase the light intensity of the lighthead(s) 4 .
3. Press Decrease intensity 2 to decrease the light intensity of the lighthead(s) 4 .
Enabling boost mode
1. From the lighthead page, press the Illumination adjustment 1 button.
Ø When enabled, the button is blue.
2. Press Boost mode 5 .
Ø The Boost mode button is lit blue and the last bar on the illumination level indicator 4
flashes. Boost mode is now enabled on the lighthead(s) concerned.
Adjusting the light field diameter
1. From the lighthead page, press the Illumination adjustment 1 button.
Ø When enabled, the button is blue.
2. Press Increase diameter 7 to increase the light field diameter of the lighthead(s) 8 .
3. Press Decrease diameter 6 to decrease the light field diameter of the lighthead(s) 8 .
