Maintenance
4
4-12 Gilson 157/159 UV-VIS Detectors User’s Guide
Lamp Replacement
Install Lamp
1 Hold the lamp at the lamp socket and guide
the glass body into the lamp pod.
2 Secure the lamp in the lamp pod using the
two screws that were removed when the old
lamp was removed.
3 Plug in the connector and then turn the
locking ring until the connector is secured.
Wear protective gloves!
Do not touch the glass body with hands. Deposits can falsify measuring
results and can damage the lamp.

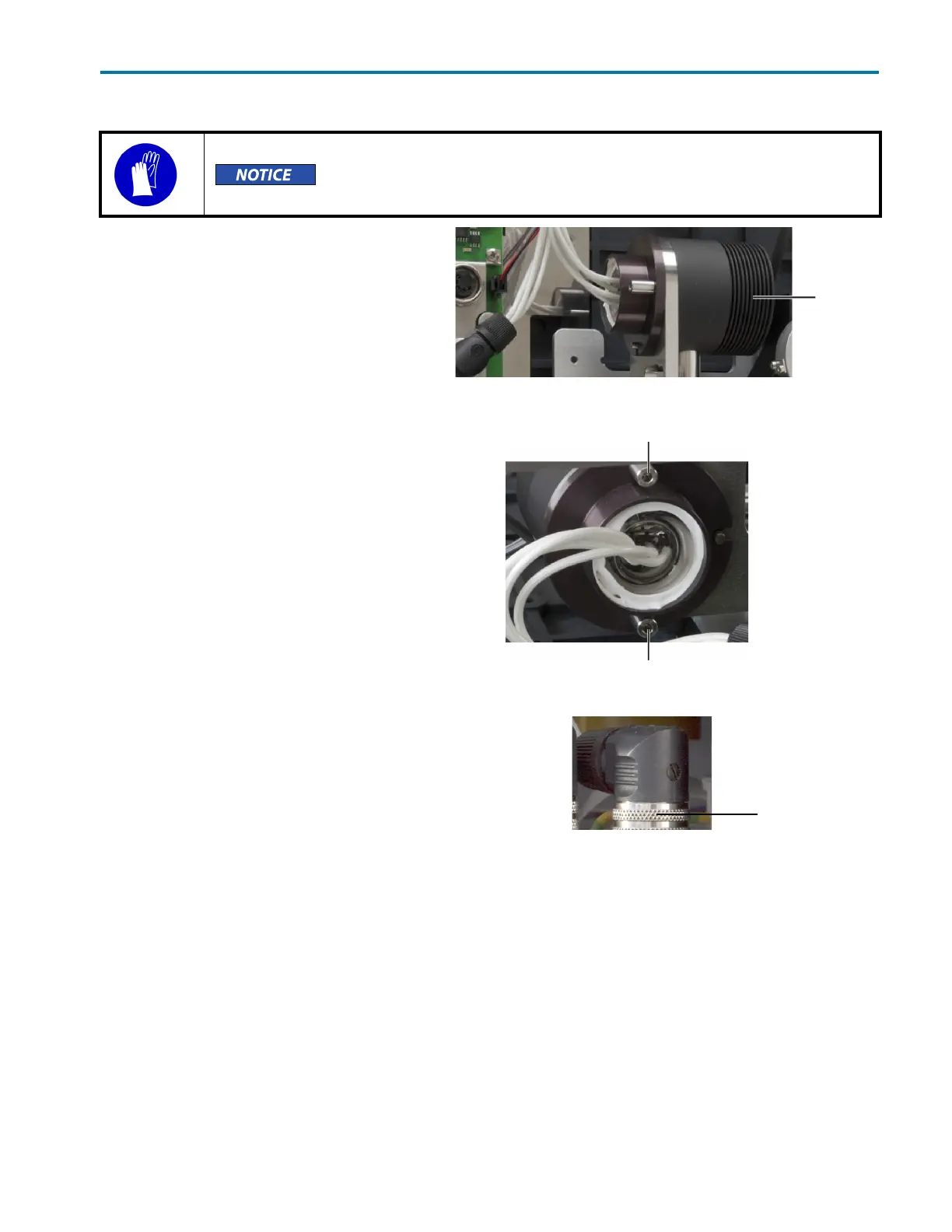

Figure 4-14: Installed Lamp
lamp pod
screw
screw
Figure 4-15: Install Screws
Figure 4-16: Connector with Locking Ring
locking
ring
