GPIO Voltage Configuration (Factory Default is 5V)

GPIO# CONNECTOR Voltage Select Jumper +3.3V/+5.0V

1 AES3 1 J45

2 AES3 2 J46

3 AES3 3 J47

RCU DB15 J50

Page 108 of 135 Table Of Contents

R339

MH7

5V IO

3V3 IO

J50

C421

J45

C284

U54

U43

J46

C288

U44

PSUTX

J41

GPIO

C422

C285

C289

J47

C290

U45

C291

ACU REAR PANEL

J47: GPIO 3

J46: GPIO 2

J45: GPIO 1

J50: GPIO 4

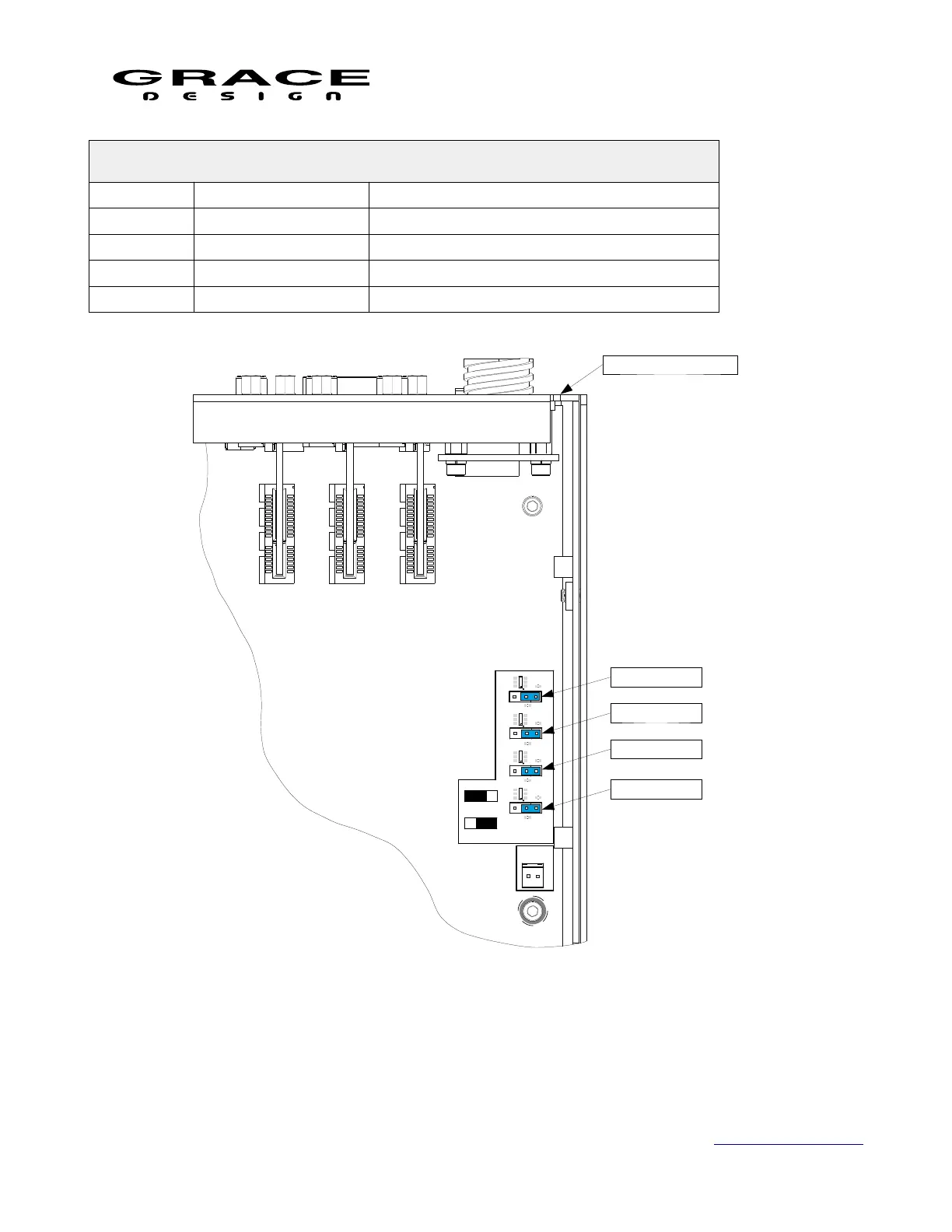

Illustration 96: GPIO Jumper Locations
