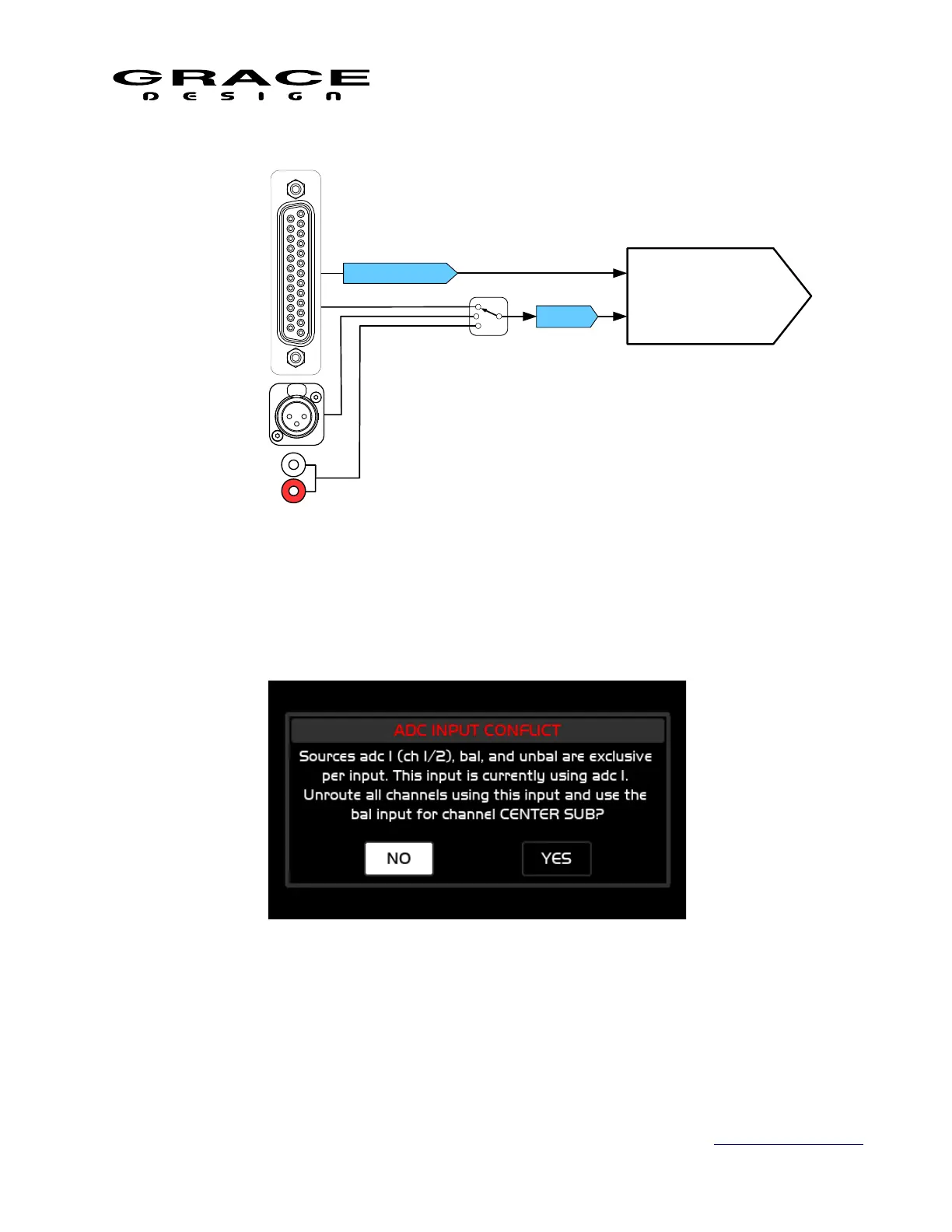

Grace m908 - Illustration 99: ADC Stereo Input Routing; Illustration 100: ADC Input Conflict

m908 User Manual, Rev. G
If an input is using one of these connectors and you attempt to route another channel to the
same connector the following conflict dialog box will appear:
The input sensitivity comes set from the factory at +24dBu=0dBFS. Input sensitivity of
+20dBu=0dBFS can be selected by moving jumpers on the ADC module PCB.
Page 112 of 135 Table Of Contents
Illustration 100: ADC Input Conflict
BALANCED
8-CHANNEL
8-CHANNEL
ANALOG-TO-DIGITAL
CONVERTER
CHANNELS 3-8
CH 1-2
UNBALANCED
2-CHANNEL
BALANCED
2-CHANNEL
1
4
1
SELECT
RELAY
Illustration 99: ADC Stereo Input Routing
