m908 User Manual, Rev. G
Since ADC1 channels 1 and 2 are shared with the balanced analog and unbalanced analog
inputs, only one input can have these channels enabled in the summed input selection.

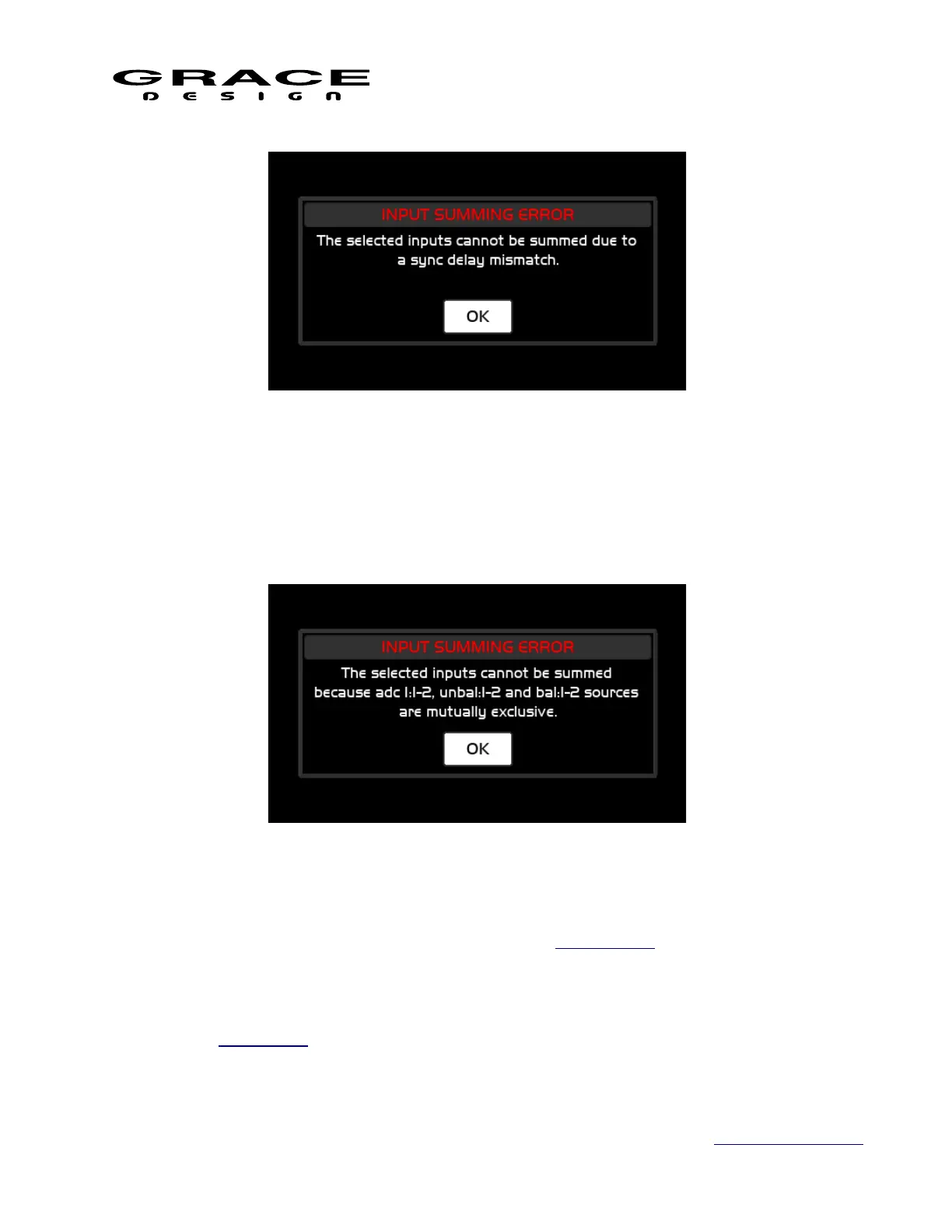

Attempting to sum inputs that each contain ADC1 channels 1 and 2 will cause the following
message to appear:
Note: If the Meter Outputs are to provide metering for summed input signals the meter
output source must be set for <follow monitor post> in System setup.
5.4.2 Direct Input Offset Adjustment
In some applications, the level of an input may need to be adjusted frequently. To avoid
having use Input Select mode to make these changes, the m908 features a direct access input
offset control.
While in the home screen, press and hold a single input button and turn the encoder to enter
Page 26 of 135 Table Of Contents
