Grace m908 - Illustration 1: Audio and Clock Flow Diagram

To Next Page

To Previous Page

m908 User Manual, Rev. G

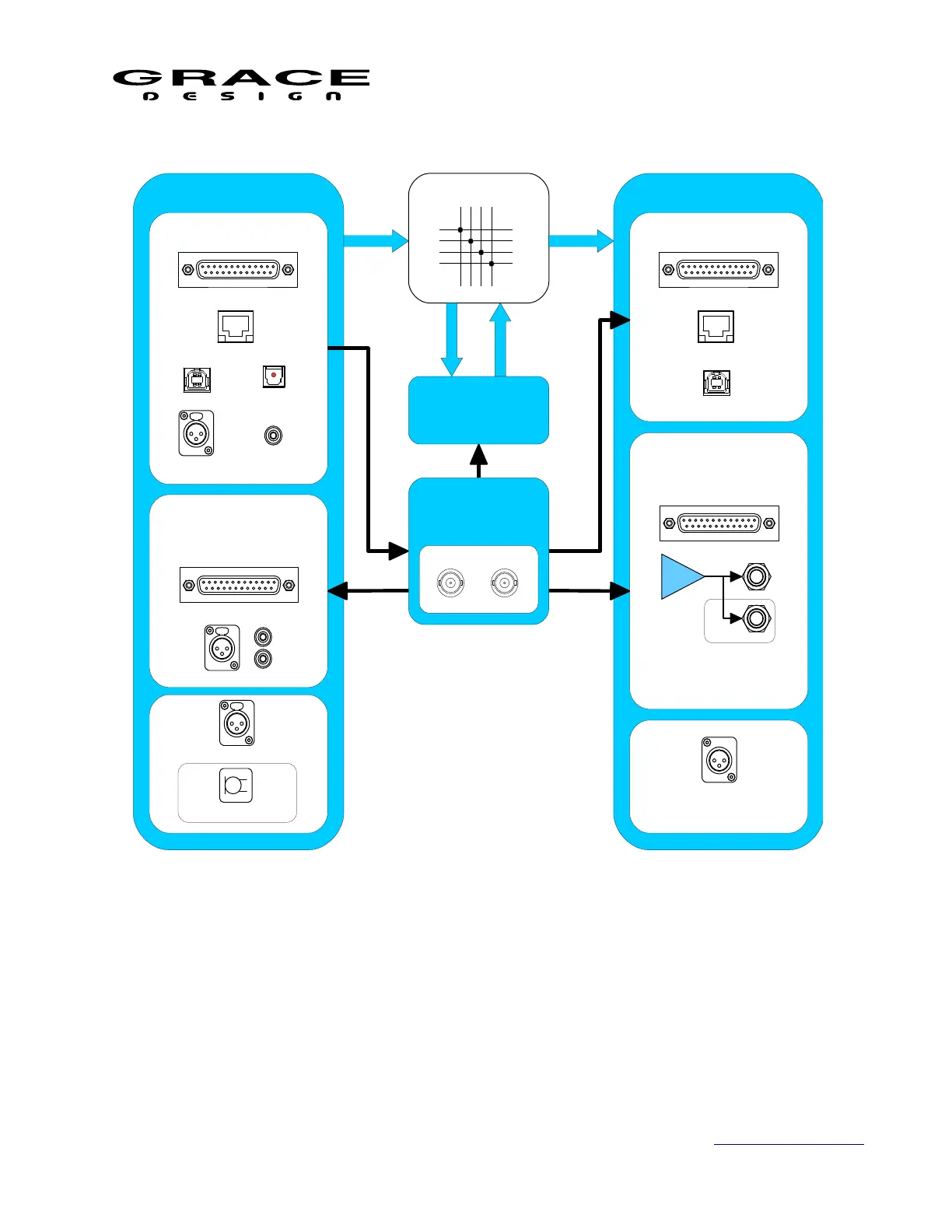

The audio signal processing signal flow is shown in the diagram below.

Page 7 of 135 Table Of Contents

AUDIO INPUTS

ROUTING

DSP

ADC OPTION

ANALOG 16CH

ANALOG 2CH

AUDIO OUTPUTS

DAC

ANALOG 16CH

HP AMP

RCU

DIGITAL OUTPUTS

AES DIGITAL 24CH

USB 8CH

DANTE 32CH

CLOCK

s-Lock PLL

WORD CLOCK I/O

IN OUT

ACU TALKBACK

RCU TALKBACK

DIGITAL INPUTS

AES DIGITAL 24CH

USB 24CH

ADAT 16CH

(TOSLINK 2CH)

DANTE 32CH

SPDF 2CH

AES 2CH

TALKBACK OUT

Illustration 1: Audio and Clock Flow Diagram
