m908 User Manual, Rev. G

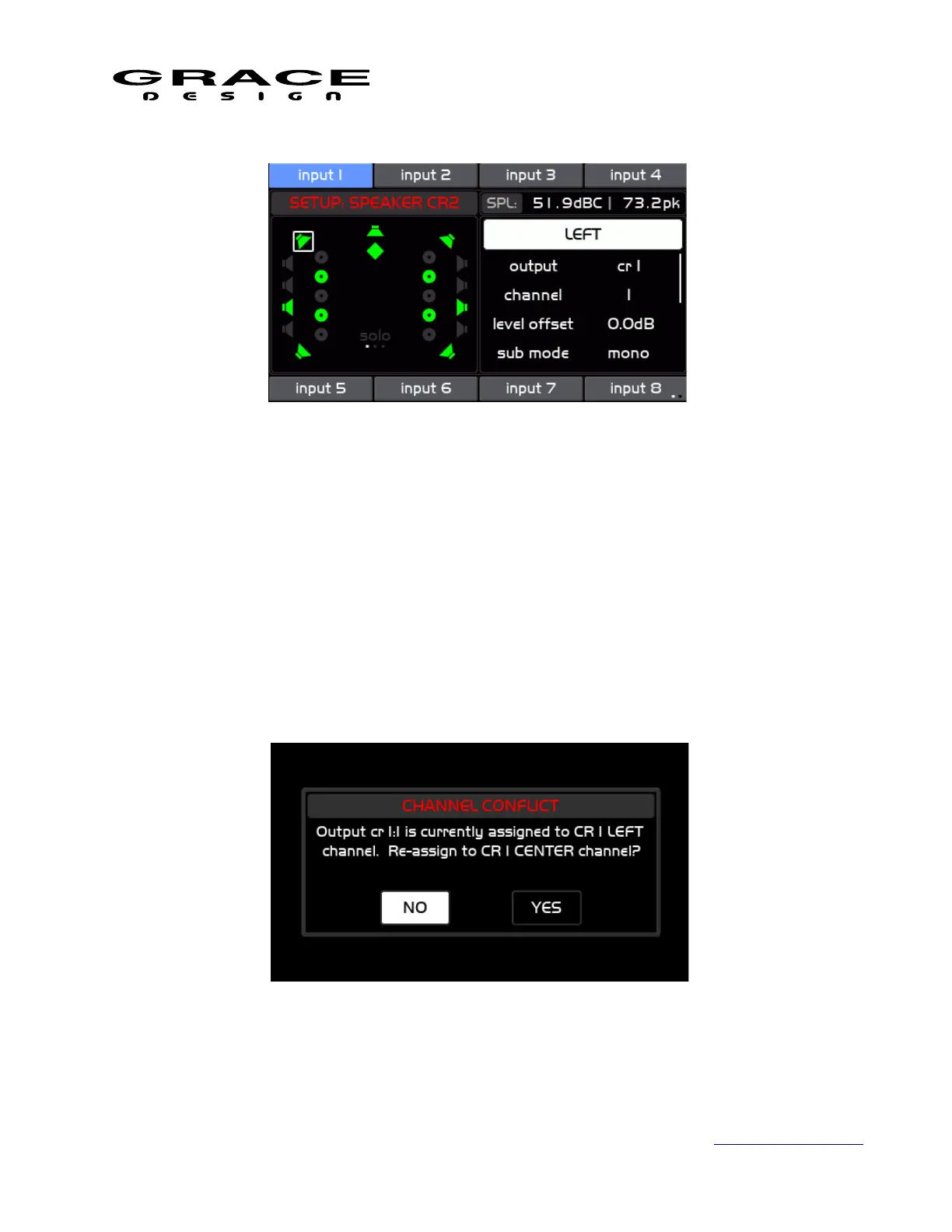

Clicking the channel name enables the channel cursor in the left window. Rotate the encoder
to move the cursor to the desired input channel type. The output parameter shows the connector
being used for the currently selected speaker (signal source). Clicking and scrolling through the
list will display the available connectors.
Clicking on a connector that is different from the current connector will disables the current
channel selection and immediately mute the audio. Scroll to the channel parameter and select the
desired channel number from the list. Upon clicking on a channel number the audio will be
routed to the new selection.
NOTE: If a connector/channel is selected that in already in use by a Cue, or Meter output then
the following dialog will appear:
Page 78 of 135 Table Of Contents
