GW Instek PSU Series Programming Manual

PSU Series Programming Manual
140

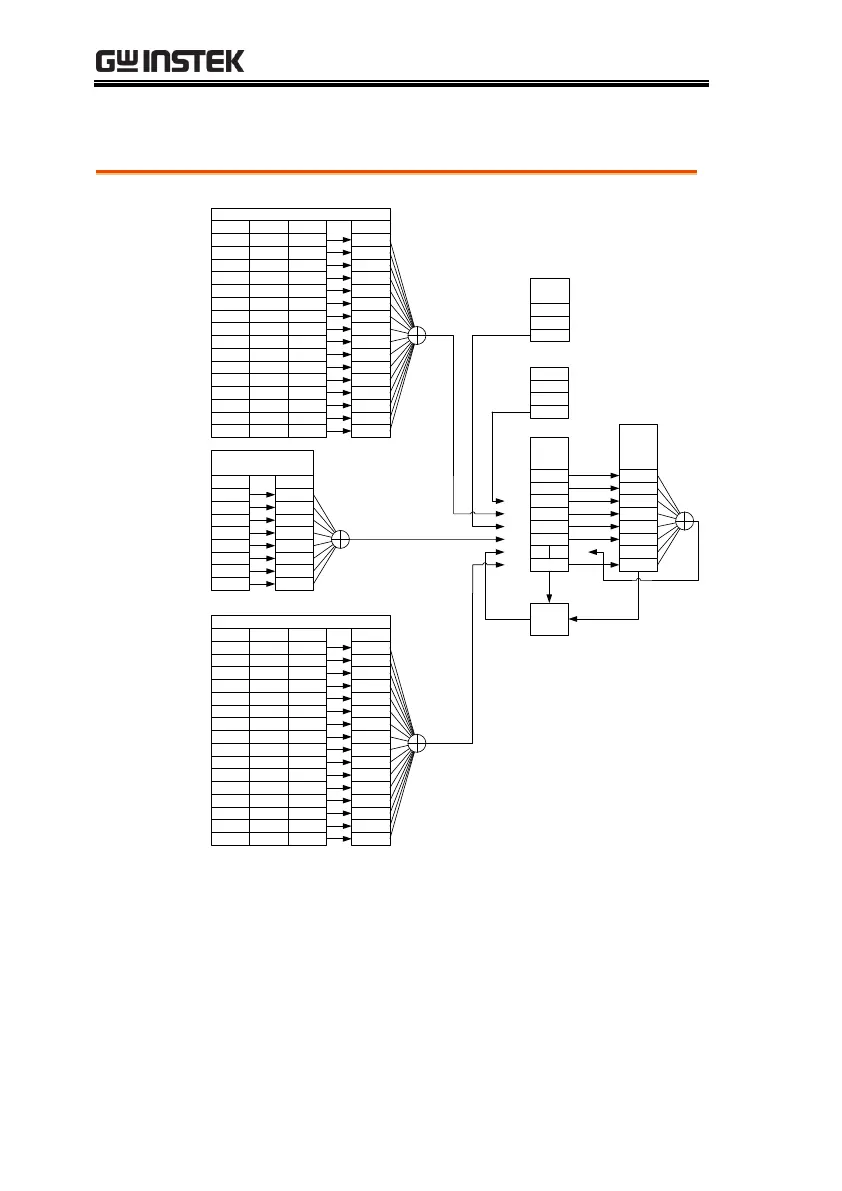

The Status Registers
MSS
Condition
OV (Over-Voltage) 0
PTR/NTP Event Enable
OC (Over-Current) 1
Not Used 2
POW (AC Power Off) 3
OTP_M 4
OTP_S 5
FAN (FAN failure) 6
Not Used 7
VL (Voltage-Limit) 8
CL (Current-Limit) 9
Not Used 10
SD (Shutdown Alarm) 11
Power-Limit 12
SA (Sense Alarm) 13
IS(Instrument Summary) 14
Not Used 15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Condition
CAL (Calibration mode) 0
PTR/NTP Event Enable
LOCK (Lock State) 1
Not Used 2
OUTP (Output State) 3
RMT (Remote State) 4
WTG (Waiting for Trigger)
5
Not Used 6
Not Used 7
CV (Constant Voltage Mode) 8
CP (Constant Power Mode) 9
CC (Constant Current Mode) 10
OND (Output ON Delay) 11
OFD (Output OFF Delay) 12
Not Used 13
PR (Program Running) 14
Not Used 15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
OPC (Operation Complete)
RQC (Request Control)
QUE (Query Error)
DDE (Device Dependent Error)
EXE (Execution Error)
CME (Command Error)
URQ (User Request)
PON (Power On)
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
ERR
QUES
MAV
ESB
RQS
OPER
0
1
2
3
4
5
6
7
Output
Buffer
:
:
:
Error Que
:
:
:
EnableEvent
Status
Byte
Register
Service
Request
Enable
Register
Questionable Status Register
Operation Status Register
Standard Event Status
Register
Service
Request
Generation
6
