PSU Series Programming Manual
22
Configuration Settings

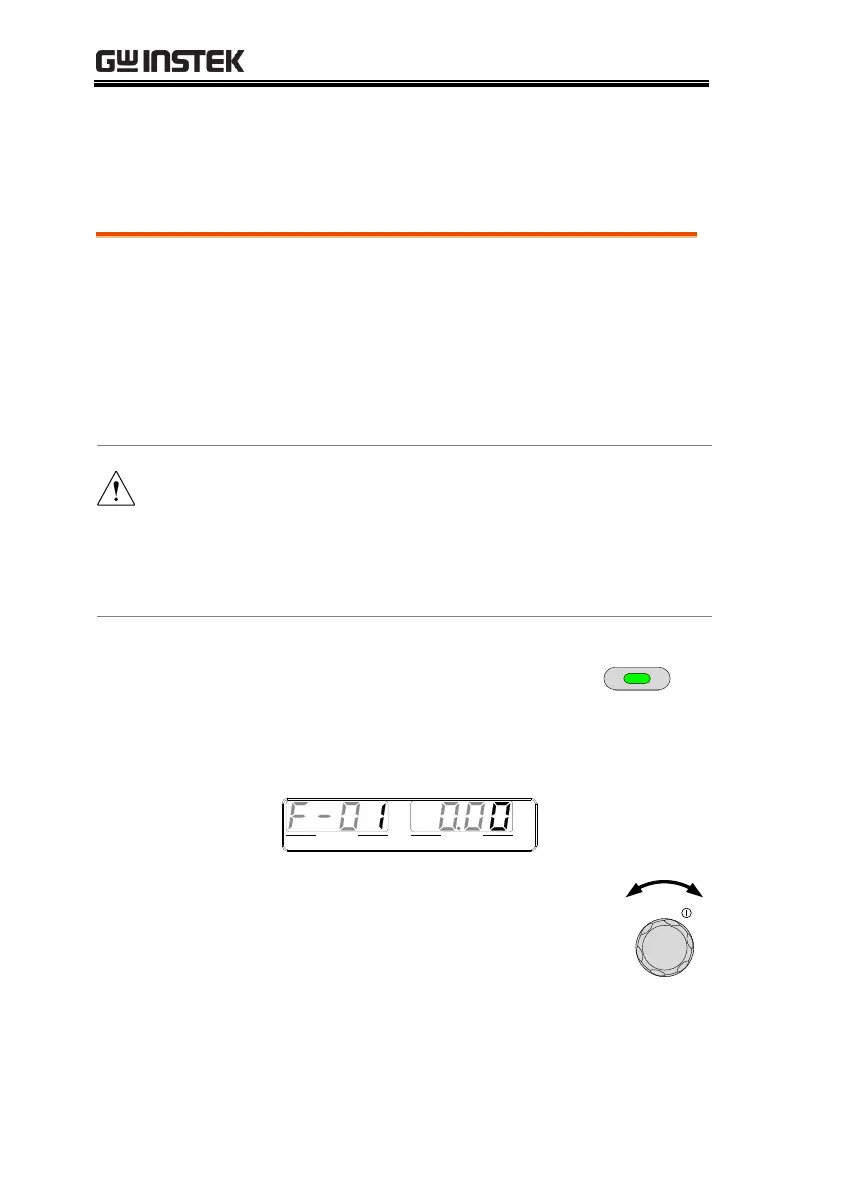

Setting Normal Function Settings
The normal function settings, F-01~F-61, F-70~F-
78, F-88~F-89 and F100~F122 can be easily
configured with the Function key.
 Ensure the load is not connected.
 Ensure the output is off.
 Function settings F-90~97 can only be viewed.
Note
Function setting F-89 (Show Version) can only be
viewed, not edited.
Configuration settings F-90~ F-97 cannot be edited in
the Normal Function Settings. Use the Power On
Configuration Settings. See page 24 for details.
Steps
1. Press the Function key. The
function key will light up.
Function
2. The display will show F-01 on the left and the
configuration setting for F-01 on the right.
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
3. Rotate the voltage knob to change the
F setting.
Voltage
Range
F-00~F-61, F-70~F-78, F-
88~F-97, F100~F122
