GW Instek PSU Series Programming Manual

REMOTE CONTROL
51

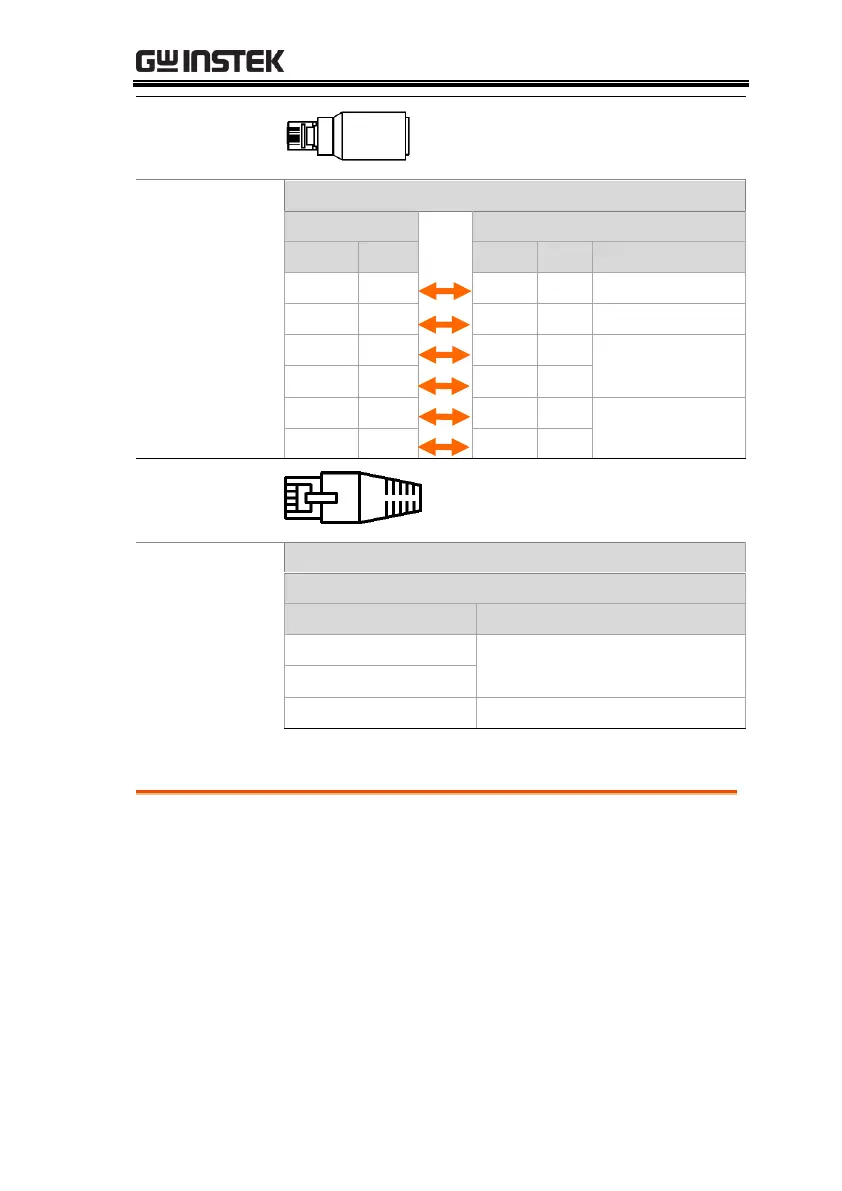

Diagram of
Intermediate
connector
Intermediate
connector from
PSU-232 or PSU-
485 connection
kit.
Intermediate connector
8 Pin (Male)
8 Pin (Female)
Pin No.
Name
Pin No.
Name
Remarks
Housing
Shield
Case
Shield
1
SG
1
SG
6
TXD -
6
TXD -
Internal paralleled
by 120 ohm
3
TXD +
3
TXD +
5
RXD -
5
RXD -
Internal paralleled
by 120 ohm
4
RXD+
4
RXD +
Diagram of End
terminal
connector
End terminal
connector from
PSU-232 or PSU-
485 connection
kit.
End terminal connector
8 Pin Connector
Pin No.
Remarks
3
Internal shorted
7
4
Internal shorted
Multi-Drop mode
Operation
1. Check the F-89 (System version and build date)
settings first on all units. The two parameters O
and P (Option Module) must be the same on all
units before any multiple unit connection can be
established.
Example: F-89 O:00, P:01.
2. All units must be powered down before starting
the Multi-Drop mode configuration.
