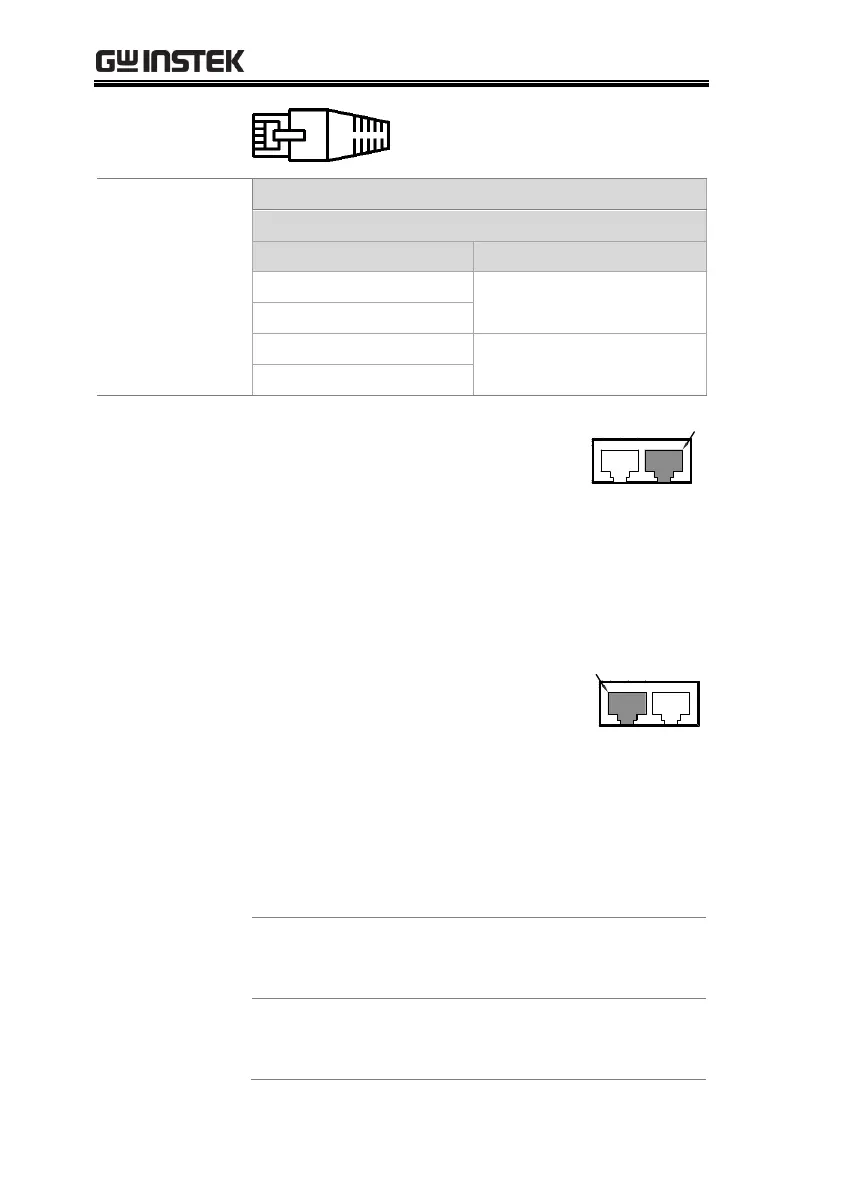

Diagram of End
terminal
connector
End terminal
connector from
PSU-232 or PSU-
485 connection
kit.
End terminal connector
8 Pin Connector
Pin No.
Remarks
3
Internal shorted
7
4
Internal shorted
8
Steps
1. Connect the RS232 serial cable
(include in the PSU-232
connection kit) or RS485 serial
cable (include in the PSU-485
connection kit) to the Remote IN
port on the real panel.
Connect the other end of the cable
to the PC.
RS 485 / 232
1
2. Connect the end terminal
connector (include in the PSU-232
or RS-485 connection kit) to the
Remote OUT port on the rear
panel.
RS 485 / 232
2
3. Press the Function key to enter
the Normal configuration
settings.
Page 4
Set the following UART settings:
F-70 = 1~3
Interface: 0= Disable UART,
1=RS232, 2=RS485 4W,
3=RS485 2W
F-71 = 0 ~ 7
Set the baud rate: 0=1200, 1=2400,
2=4800, 3=9600, 4=19200,
5=38400, 6=57600, 7=115200
