GW Instek PSW Series User Manual

PSW Series User Manual
64
F-03
1 = CC High Speed Priority
3 = CC Slew Rate Priority

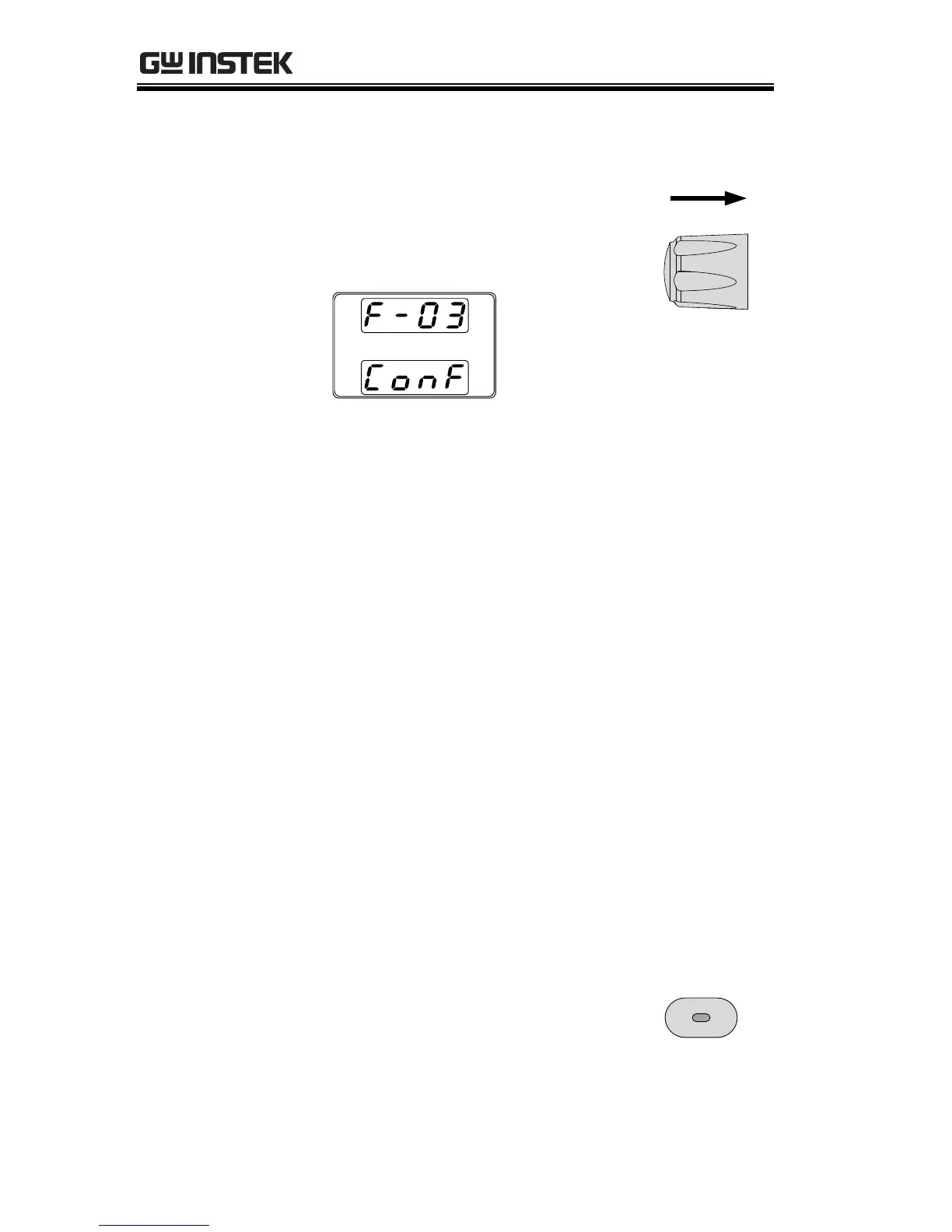

5. Press the Voltage knob to save the
configuration setting. ConF will be
displayed when successful.
Voltage
6. If CC Slew Rate Priority was chosen as the
operating mode, set F-06 (Rising Current Slew
Rate) and F-07 (Falling Current Slew Rate) and
save.
F-06 / F-07
0.01A/s~72.00A/s (PSW 30-36)
0.1A/s~144.0A/s (PSW 30-72)
0.1A/s~216.0A/s (PSW 30-108)
0.01A/s~27.00A/s (PSW 80-13.5)
0.01A/s~54.00A/s (PSW 80-27)
0.01A/s~81.00A/s (PSW 80-40.5)
0.01A/s~14.40A/s (PSW 160-7.2)
0.01A/s~28.80A/s (PSW 160-14.4)
0.01A/s~43.20A/s (PSW 160-21.6)
0.001A/s~9.000A/s (PSW 250-4.5)
0.01A/s~18.00A/s (PSW 250-9)
0.01A/s~27.00A/s (PSW 250-13.5)
0.001A/s~2.880A/s (PSW 800-1.44)
0.001A/s~5.760A/s (PSW 800-2.88)
0.001A/s~8.640A/s (PSW 800-4.32)
7. Press the Function key again to exit
the configuration settings. The
function key light will turn off.
Function

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
