Operating Instructions
27
6 Operating Instructions
6.1 Device Front pannel

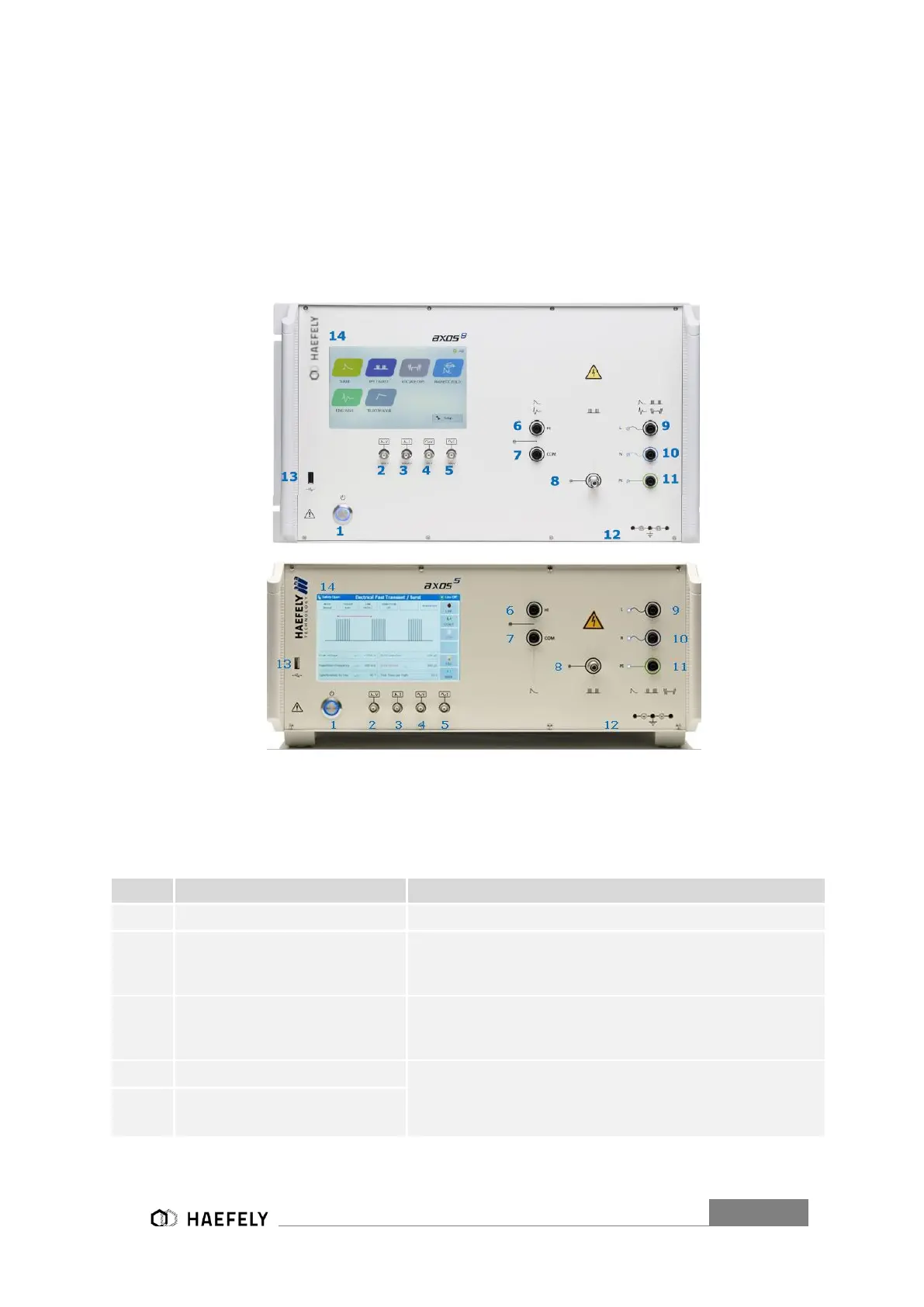

Figure 6-1 Axos Front view
Pos.
Function
Description
1
On/off switch
Turns on and off the power of AXOS
8
2
Surge impulse voltage monitor
output
1000:1 divider for surge impulse. Direct connection to
oscilloscope.
Example: 5000Vsurge impulse outputs 5V on the BNC socket
3
Surge impulse current monitor
output
1000A/V surge impulse current monitor. Direct connection to
oscilloscope.
Example: 2500A surge current outputs 2.5V on the BNC socket
4
Urms monitor output 100:1
Monitoring the signal of the generator when creating voltage dips
or voltage interrupts.
Direct connection to oscilloscope.
5
Irms monitor output 10A/V
