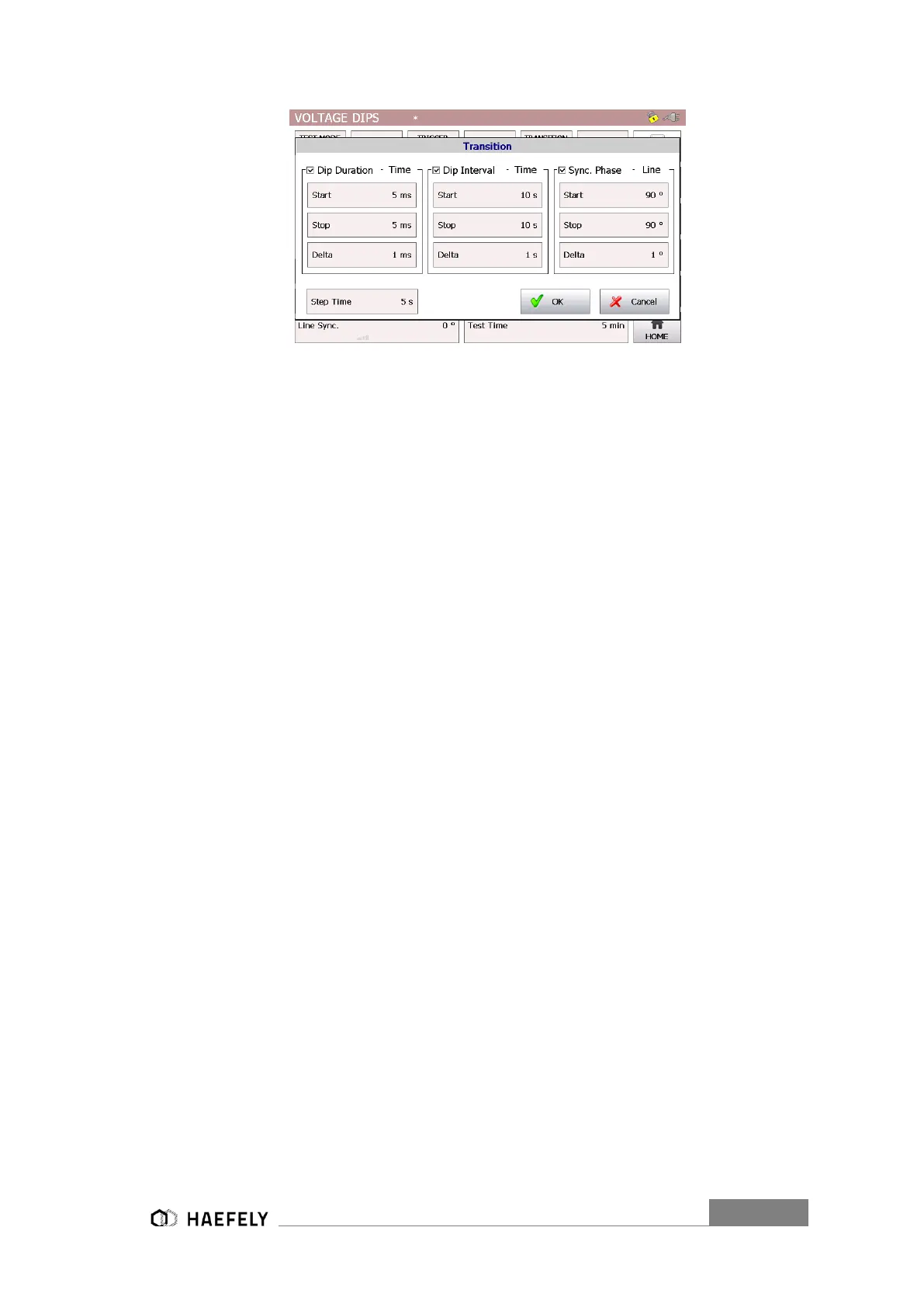

Figure 12-7: Voltage Dips Transition
When finalizing the parameter, it must be confirmed with “OK” and either the pre-compliance or
standard mode gets open depending what selection was previously done. In addition the
incremental intervals get displayed at each particular function name, like for example “interval”.
12.3.5 Trigger
The trigger can be accessed either from pre-compliance mode or standard mode when generator
is not in use. The user can select after pressing the “trigger” button between: “auto”, “manual” and
“external”. In “Auto”: signal gets applied automatically in accordance to parameters. In “Manual”:
pushing the start button after “manual” selection, then pressing the “trigger” button. In “External”:
Signal will be controlled from external source, connection through PIN 11 in Table 5-3.
