60
Electrical Fast Transient Burst
Position
Description
External (Pin11 on Aux)
External condition (e.g. device or PLC signal), the
position becomes 1 and causes an action (Ignore,
Alarm, Test Stop or test stop & line off)
Line Current
Limits the current (L, N, PE front view) to the EUT
Action: Ignore, Alarm, Test stop, Test stop & line off
Due to EUT fails, AXOS
8
cause an action which can
be: Ignore, Alarm, Test Stop, Test Stop & Line off.
Line off
Voltage locked at L, N, PE when test has finished (only
possible to select, when as output line has been
selected)
Sound on off
Acoustic signal when test ends
After selection has been finished, the button “OK” must be confirmed and setting gets applied to
the Burst generator.
11.2.3 Transition

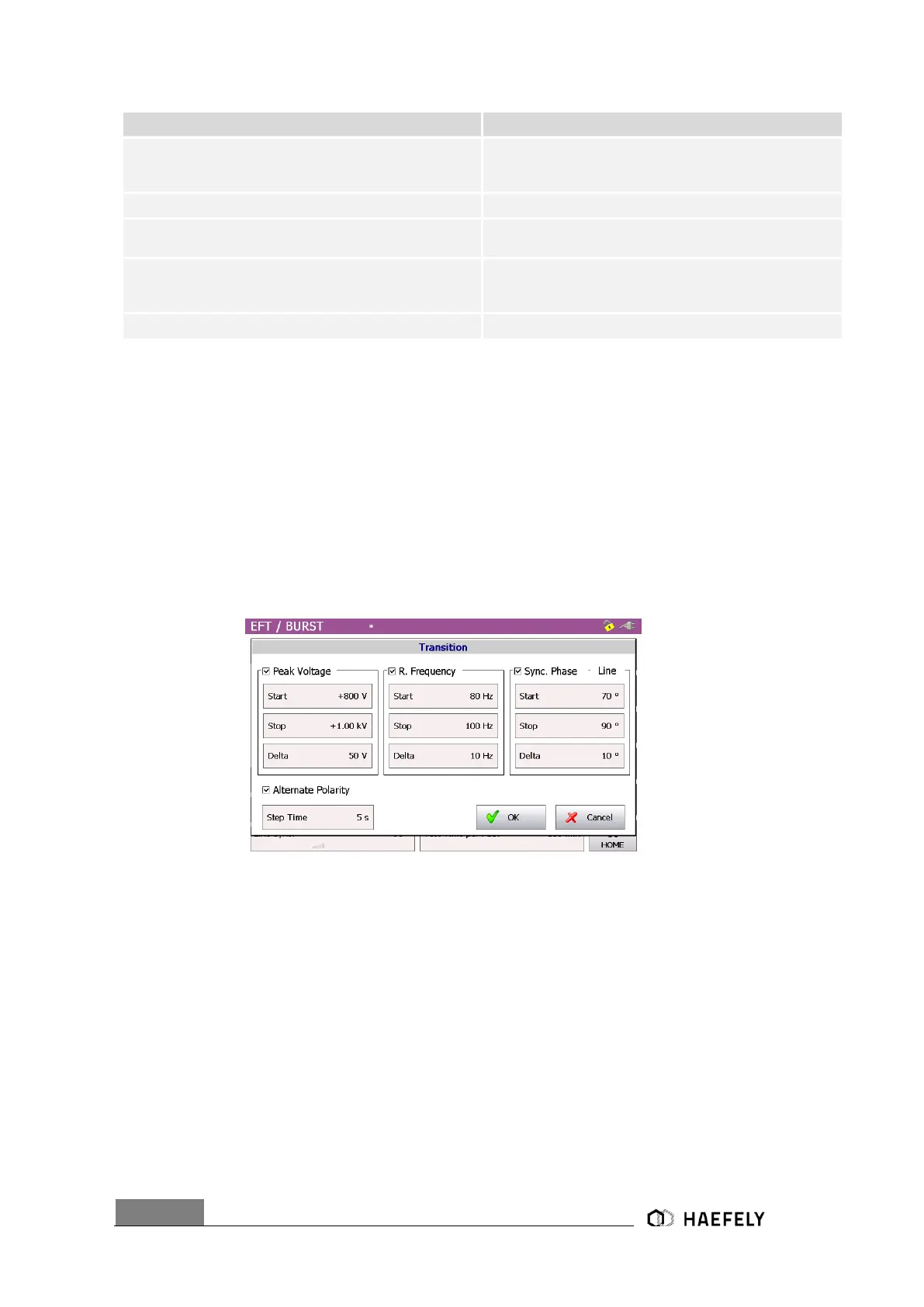

The Figure 11-6: BURST Transitionshows the “transition” menu. It is possible to select
independently “peak voltage”, “Repetition frequency”, “Phase” and “Alternate polarity”. To be able
to select “Sync phase” the synchronization has to be either set as “line Sync” or “external Sync”,
otherwise it is not possible to select. (explained in 10.2.5) Every parameter can be changed by
selecting each particular value and entering a new.
Figure 11-6: BURST Transition
When parameter finalized, it must be confirmed with “OK”. Then either the pre-compliance or
standard mode gets open depending on previous operation mode.
11.2.4 Trigger
When selecting “manual trigger” the following window opens up. It gets applied to EUT by
pressing the “Trigger” button. It gets always only one Burst package applied.
