Floating: No connection between COM and earth connection → 6 kV adjusted, then 3kV at HI
and 3kV at COM
Not floating: connection between COM and PE as above → 6 kV adjusted, then 6kV at HI and
0kV at COM
10.1.4 AXOS 8 + TW 8
Test requirements must be achieved according to the IEC 61000-4-5 ed.3 norm. The safety
standards as written in Table 1-1 must be unconditionally fulfilled, when operating the AXOS
8
.
The high voltage signal gets applied directly from HV DC output of the AXOS8 to the HV DC input
of the TW 8 module in the rear side of the unit. No output at the front view of AXOS8 must be
used for the 10/700 application. (Figure 10-4: Connection AXOS 8 + TW 8 Module)

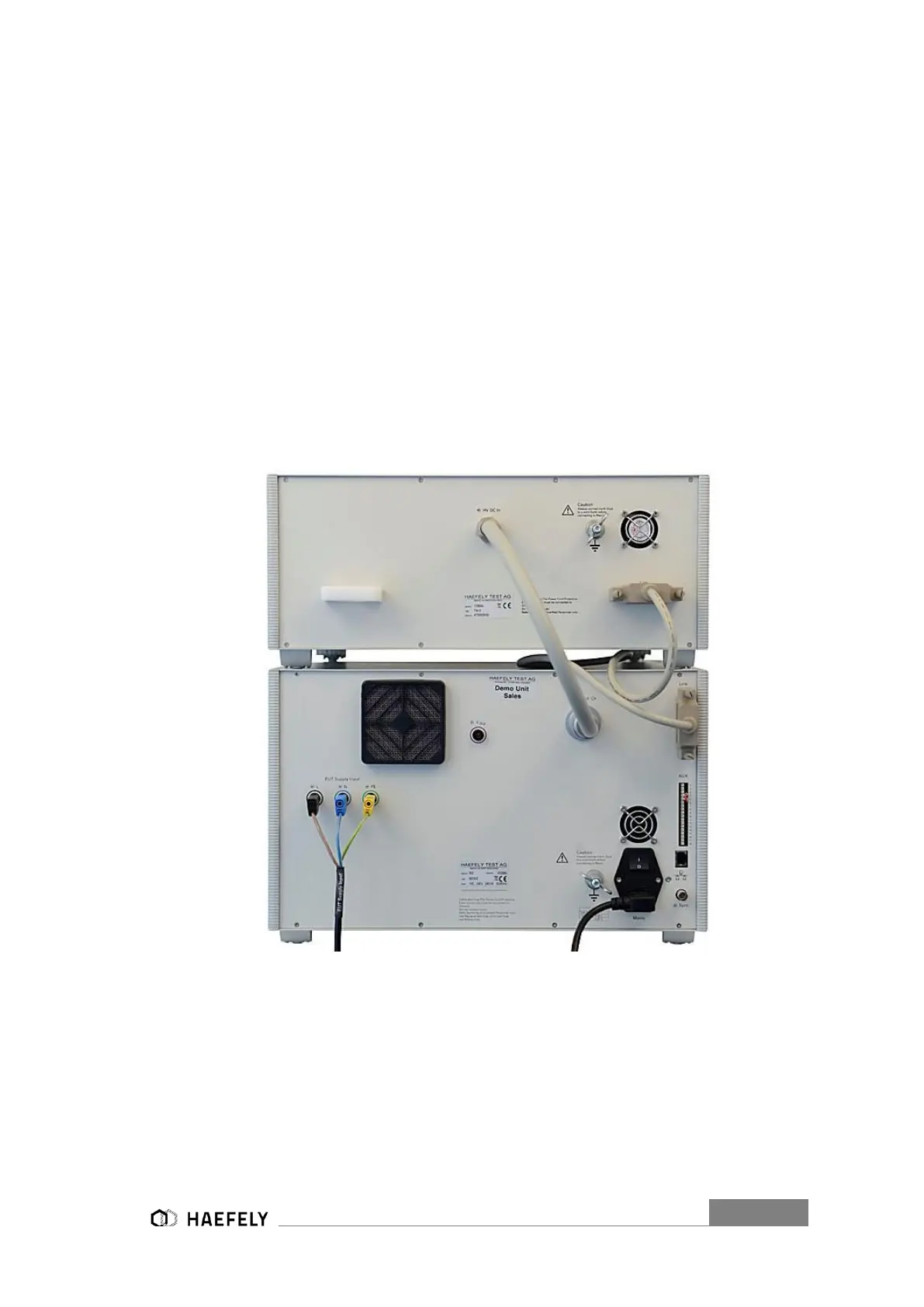

Figure 10-4: Connection AXOS 8 + TW 8 Module
In the next step, the user selects either the pre-compliance or the standard operation mode. The
Figure 9-5 and Figure 9-6 reflects either of the appliance modes. By pressing on each particular
function parameter a purple bow comes up and the definition of the function gets displayed. Only
Peak voltage, repetition rate and number of Surge can be adjusted. There when selecting the
field, the value as for instance 500V can be changed. No synchronization with external power
supply source is possible.
