8 Magnetic Field
8.1 General Information
The test setup is described in accordance to the norm IEC 61000-4-9. A SCC waveform will be
created. For the magnetic field the coil gets connected directly via banana plug to the surge output
HI and COM as written in position 6 and Position 7 in Figure 6-1 Axos Front view. Only these
outputs can be used for the Surge impulse.
Do not touch the coil when the test is proceeding. Safety requirements as described in capture
1.1 must be unconditionally fulfilled.
8.2 Magnetic field menu
Standard mode is presented In Figure 8-1: Magnetic field Pre-compliance mode. The parameter
can be entered by pressing the numbers. For instance to change the magnet field the parameter
“+120 A/m” must be selected and then a new parameter entered.
Figure 8-1: Magnetic field Pre-compliance mode
In addition, the purple bow describes the function. On the top of the window it shows which “Coil

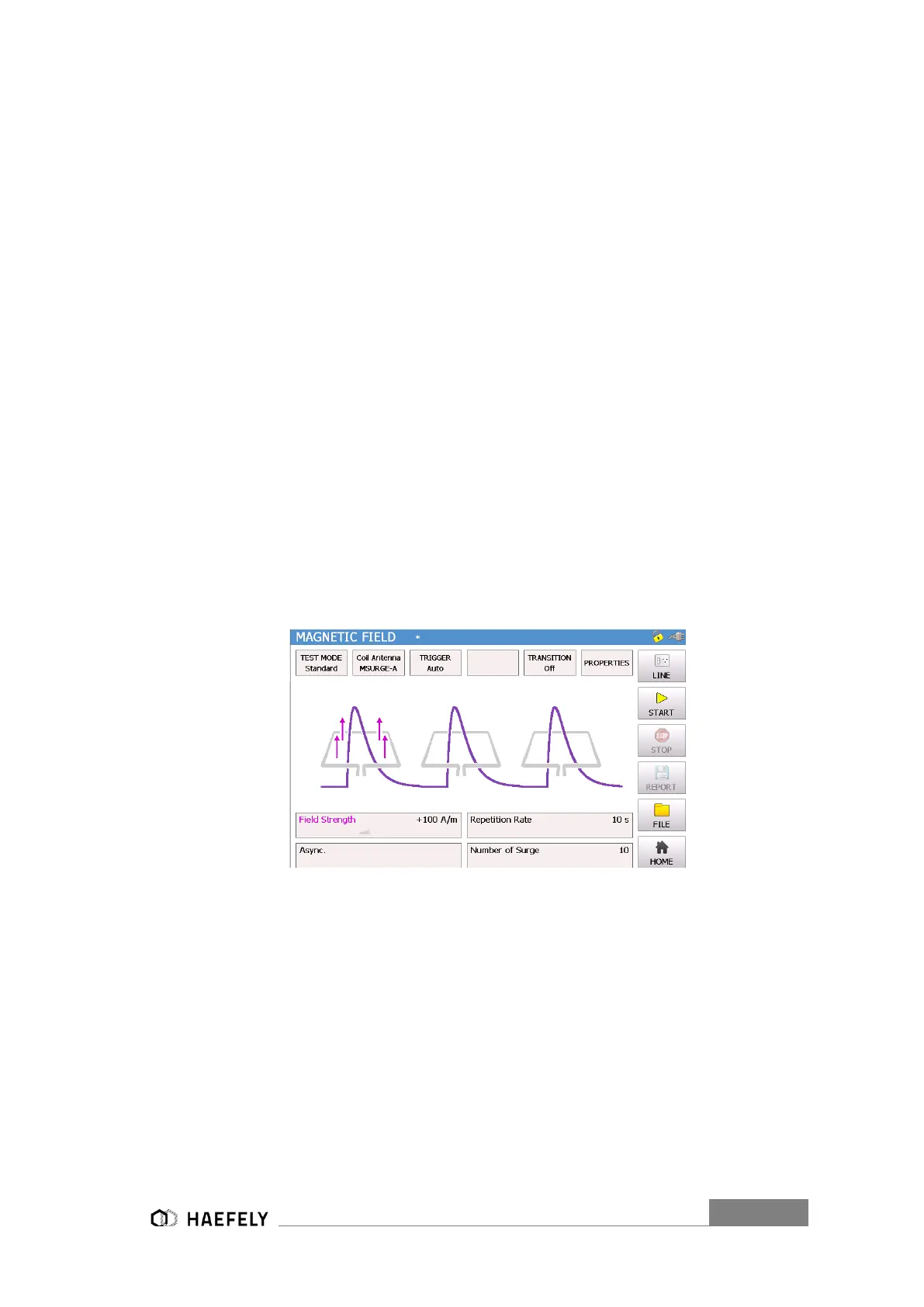

Antenna” is selected. In the standard mode (Figure 8-2: Magnetic field Standard mode) the values
can be changed by pressing on the particular parameter as well. Additionally, the “transition”
(capture 10.2.3) can be adjusted.
