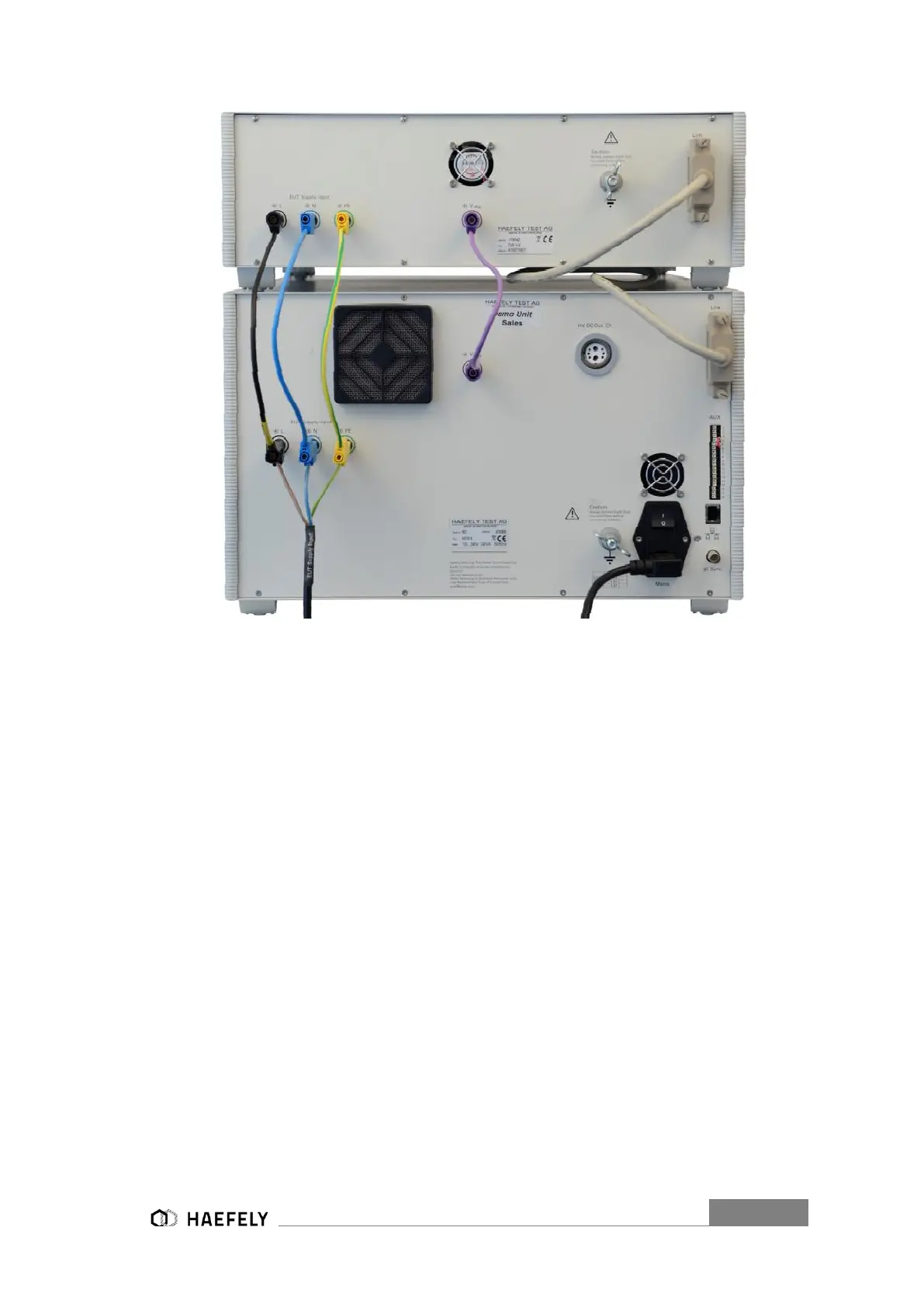

Figure 12-5: Transformer DIP 116
Then V dip 0%, 40%, 70% and 80% in reference to U1 nominal. Only with the DIP 116 the
proportional voltage adjustment through the menu is possible. The second main advantage will
be reflected in the compatibility of the transformer with the AXOS
8
compact immunity tester.
12.3.2 External transformer
The only connection from the external transformer (Figure 12-6: External transformer) with the
compact immunity tester happens through V dip and N’ at the rear view via banana plug. L and N
from the external transformer gets connected to the power supply. The output voltage (between
V dip and N) gets displayed as adjusted at the transformer. However, no further adjustment of the
second nominal voltage in the AXOS
8
menu possible.
