10.1.5 Output & Coupling Paths
In the figure below there are three different (1 x 15 Ohm, 4 x 40 Ohm, 4 x 40 Ohm gas arresters)
output options in accordance to IEC 61000-4-5 ed.3 standard. It can be simply connected vie
banana plugs with the EUT.

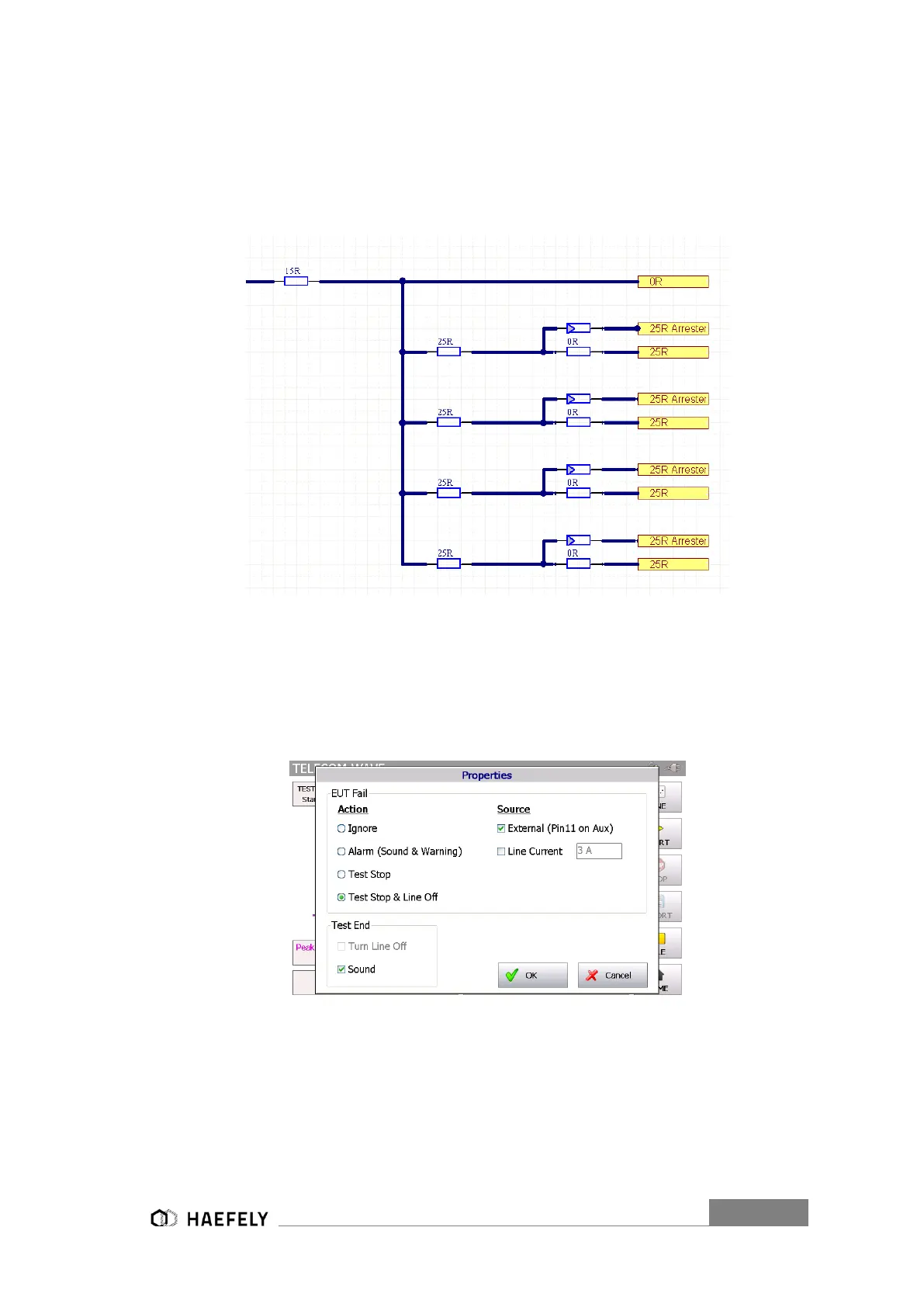

Figure 10-8 External outputs from decouple network of Telecom Wave module
10.1.6 Properties
In the Figure 9-9 below is the properties menu displayed. The Table 9-1 explains the function
more detailed.
Figure 10-9: Surge properties
The window gets closed, when confirming the “OK” button. “Turn line off” is turned off
automatically, because the impulse gets applied directly via TW8 module and there is no “line”
output, only directs (HI-COM) output with different impedances as described in the beginning of
capture.
