9.1.2 Ring Wave menu
Test requirements must be achieved by the user according to the IEC 61000-4-12 norm. The
safety standards as written in Table 1-1 must be unconditionally fulfilled, when operating the
AXOS
8
.

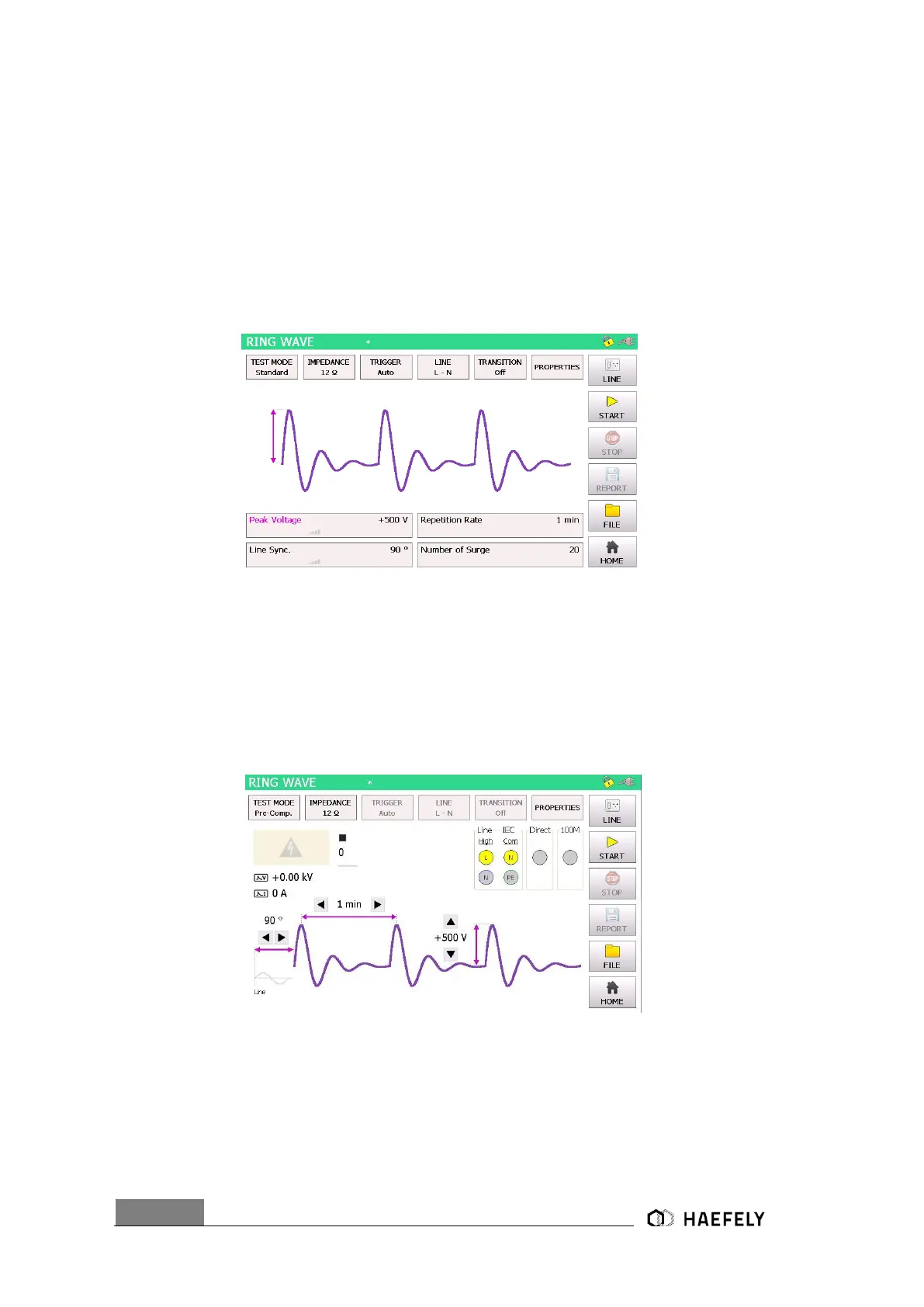

In the next step, the user selects either the pre-compliance or the standard operation mode. The
Figure 9-2: Ring Wave Standard mode and Figure 9-3: Ring Wave pre-compliance mode reflects
either of the appliance modes. As seen by pressing on each particular function parameter a purple
bow comes up and the definition of the function gets displayed.
Figure 9-2: Ring Wave Standard mode
When pressing the “home” button the user gets transferred automatically to the start menu.
In the Figure 9-3: Ring Wave pre-compliance mode is shown the pre-compliance mode. Indeed,
every parameter can be changed by simply pressing on the black arrows next to the value.
Furthermore, it can be changed between direct and line output. All data entries can be done while
the generator is operating. It can be selected between 12 Ohm and 30 Ohm couple impedance
of generator to EUT.
Figure 9-3: Ring Wave pre-compliance mode
