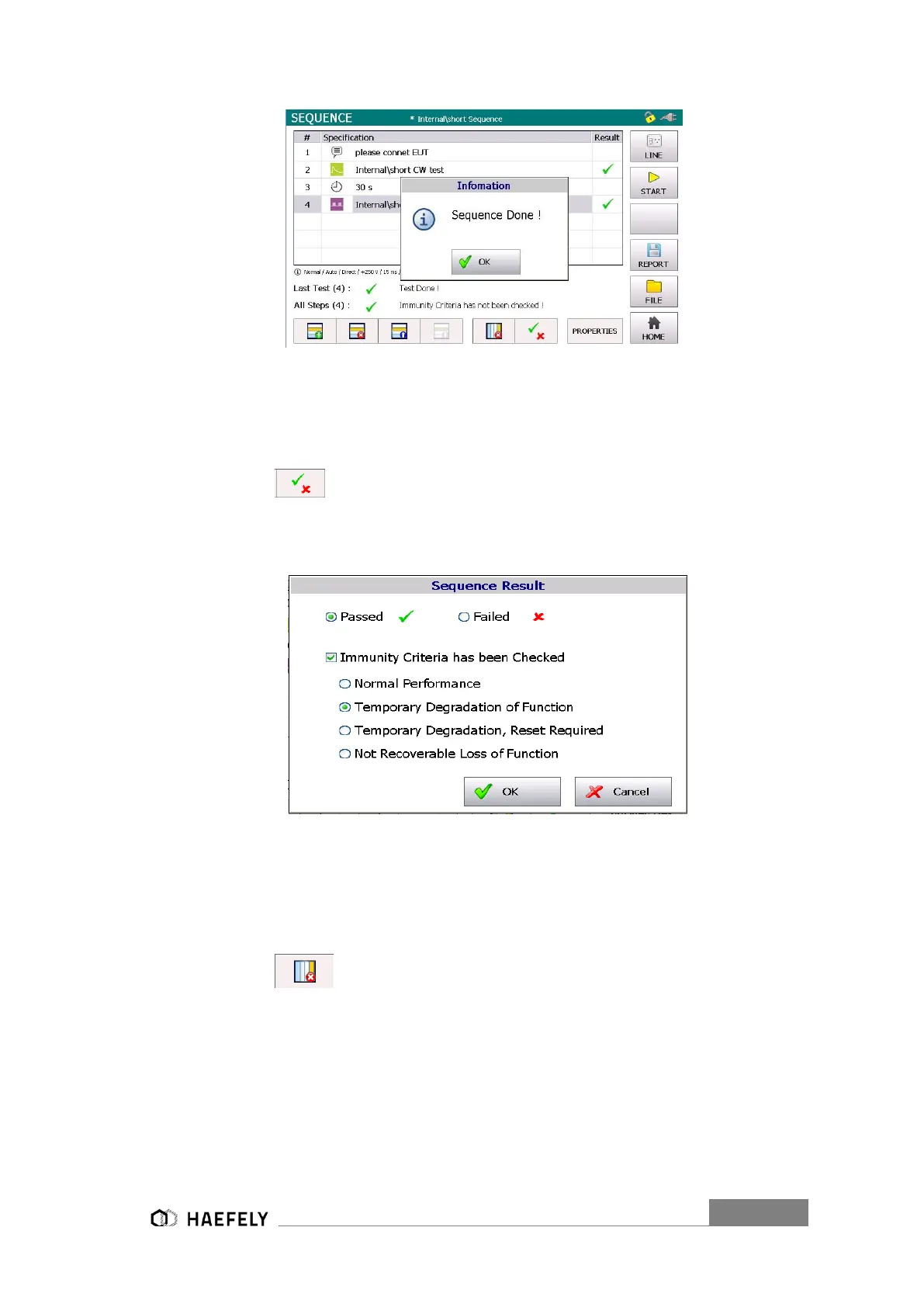

Figure 13-8: Sequence finished
13.2.3 Manually set & Complete sequence result
Sequence button access the result dialog. There it is possibility to change the final result
of the unit (Passed or Failed).
EUT immunity pass/fail criteria can be selected in Figure 12-9 as well.
Figure 13-9: Figure 12-9 Sequence result
Criteria is saves when returining to sequence or after Axos is turned off.
13.2.4 Clearing of result
Sequence button for clearing the test results column.
