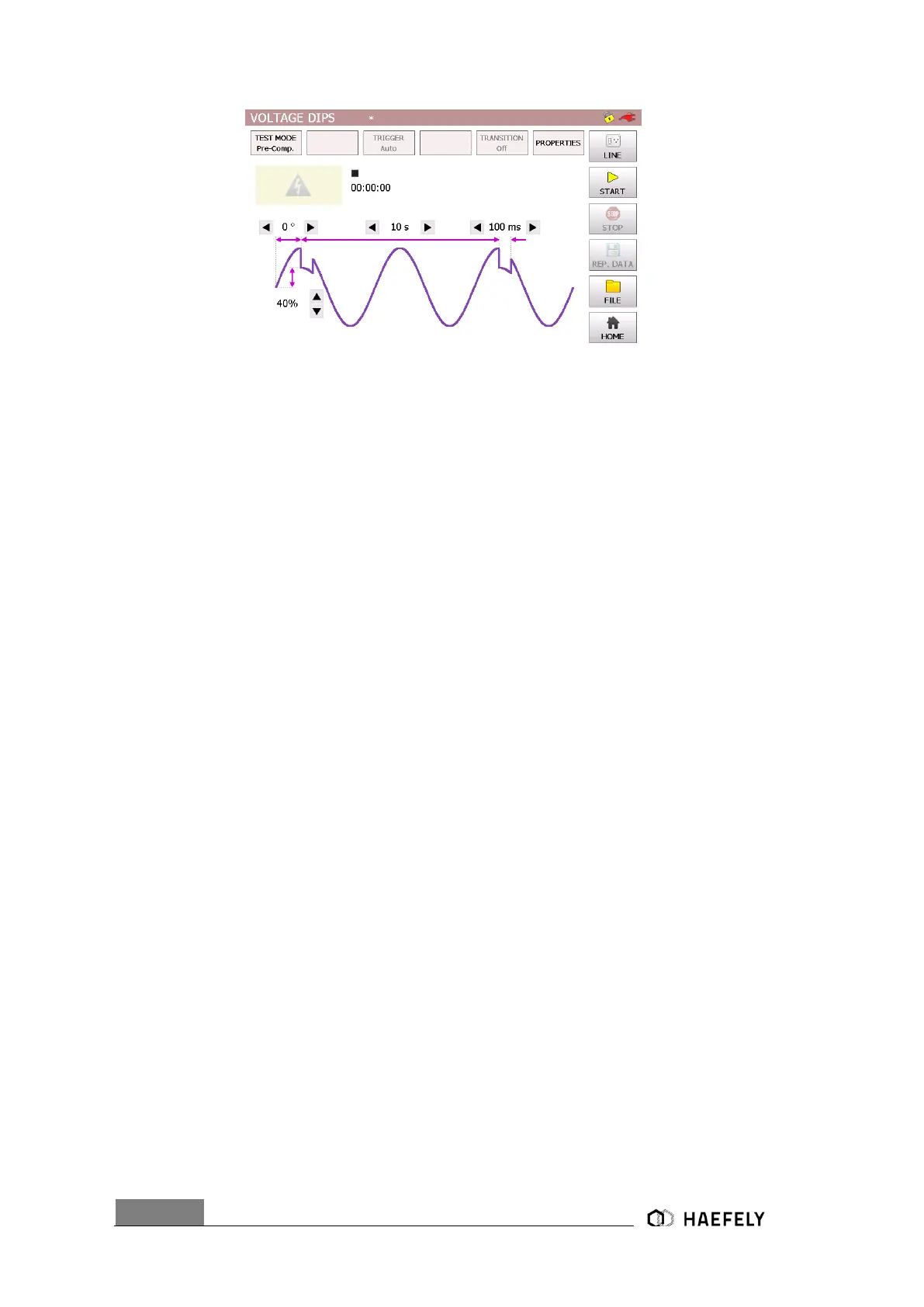

Figure 12-4: Voltage Dips pre-compliance mode (External transformer)
After all parameters have been adjusted and selected the “start” button can be pressed and the
voltage dips starting. Significant, is the right selection of “Line Sync”, “Sync” and “external”. Only
in either “line Sync” or “Sync” can the phase angle be selected, since an external power supply
has to be connected, otherwise the synchronization with the phase would not be technical
possible. However, by pushing the “home” button the starting menu.
12.3.1 Transformer DIP 116
The HAEFELY AG DIP 116 transformer will be connected through the V Dip and the Link input at
the rear view of the AXOS
8
. The DIP 116 has an independent connection to an external power
supply via banana plug. Once the setup is done it can be fully automatically controlled through
the touch screen of the AXOS
8
, when being in the menu of “Voltage Dips”.
