50
Ring Wave (Axos8 Only)
(according to ANSI standard) is indicated in Figure 9-8: ANSI Output & Coupling Paths Ring
Wave.

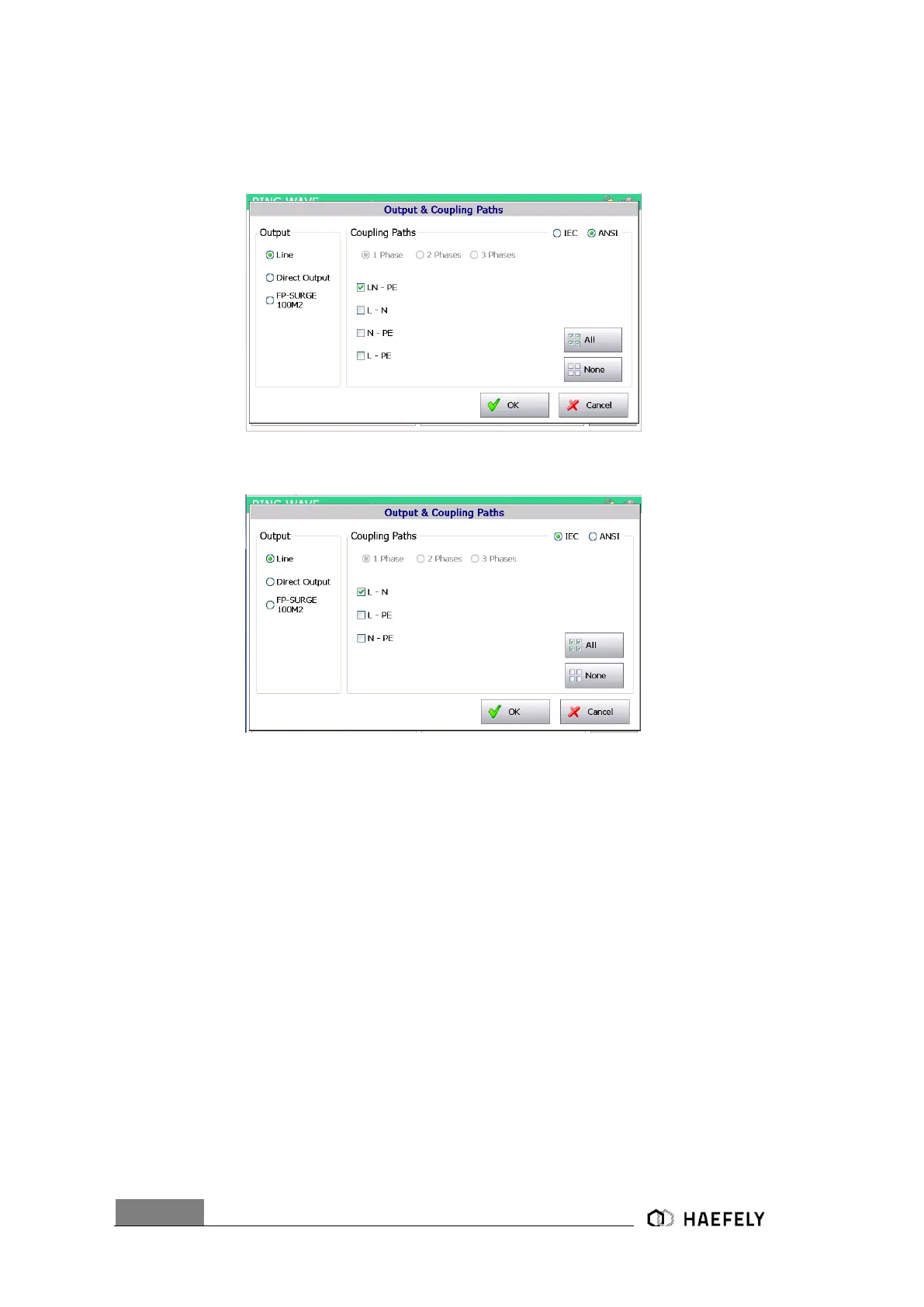

Figure 9-8: ANSI Output & Coupling Paths Ring Wave
Figure 9-9: Figure 8-8 IEC Output & Coupling Paths
